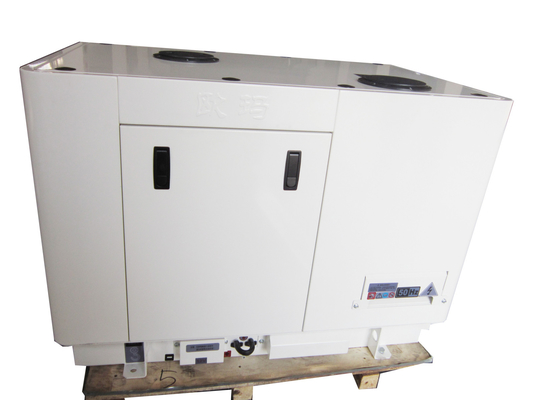

Brushless Self-excitation Three Phase Marine Diesel Generator Set 4 Cylinder 15KW - 17KW

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Brushless Self-excitation Three Phase Marine Diesel Generator Set 4 Cylinder 15KW - 17KW Get Best Price

Product Details:
Place of Origin: China
Brand Name: OUMA
Certification: ISO,CE
Model Number: OM15CYZ3
Payment & Shipping Terms:
Minimum Order Quantity: 5 units
Price: To be negotiated
Packaging Details: Plastic film and veneer case
Delivery Time: 15 working days
Payment Terms: T/T or L/C at sight
Supply Ability: 50 units / day
Contact Now
Detailed Product Description
High Light:

portable marine generator

,

single phase diesel generator

Brushless Self-excitation Three Phase Marine Diesel Generator Set 4 Cylinder 15KW - 17KW

Quick Detail:

  • Product name:Marine Diesel Generator
  • Phase: Three phase
  • 15KW/ 50Hz, 17KW/ 60Hz. Single or dual AC voltage
  • Driven by powerful 4 cylinder diesel engine.
  • Shared fuel tank with the ship.

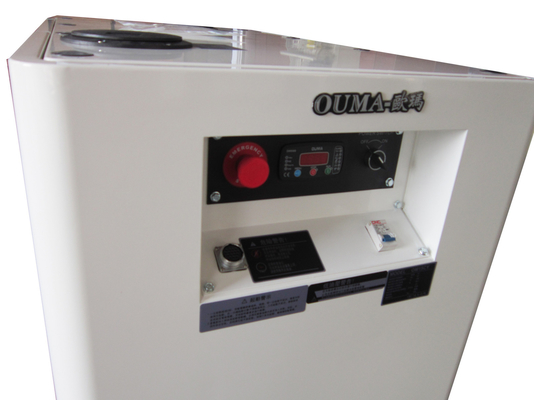

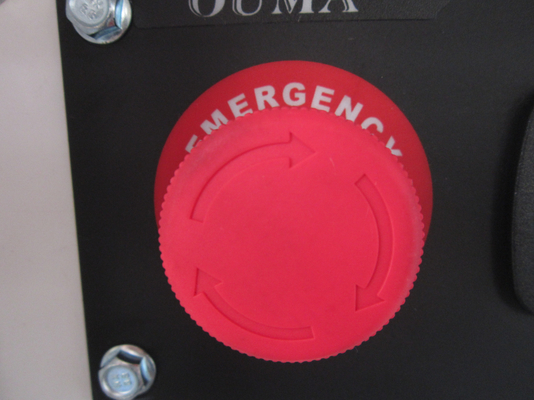

  • Emmergency stop, terminal block, remote control box with 12 m cable.
  • Main circuit breaker. Shutdown protections.


Description:


  •  Compact structure, light weight
  • Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance.
  • Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
  • Relay, fuse and AVR are in one box for easy maintenance or repair.
  • Smallest size compared with counterparts using the same engine and alternator for the same rating gensets. Save transportation cost and installation space.
  • Availability of manufacturer genuine spare parts for whole life of the gensets.
  • Assembling bolts are hidden covered by corrosion-resistant rubber cover.
  • Nominated supplier and over 50% market share in China in fields of excursion boats, yachts, China Marine Bureau, China Fishery Administration, etc.


Specifications:


Generator SetModelOM15CYZ3
BrandOUMA
Rated power(KW)15            17
Rated voltage(V)400/230       416/240
Rated current(A)  27            29
Rated frequency(Hz)50              60
Waveform distortion Sinewave, distortion ≤5%
Noise level(dB@7m)62
Battery(12V-Ah)None
Overall dimension
(L×W×H)(mm)		≤ 1070x680x750
Overall weight(kg)≤550
Fuel tank capacity(L)None
Diesel EngineModelOM490
BrandOUMA
Power output(KW)21     25
Type4 cylinder, direct injection, four stroke
Displacement(L)2.2
Bore×Stroke(mm)90×105
Rotation speed(r/m)1500    1800
Governor systemMechanical
Starting mode12V DC
Filter systemDry air filter, fuel filter, oil filter
Cooling typeExternal cycling sea water or river water
Exhaust mufflerWater cooled
Heat exchanger(L)9
Sea water pump suction(M)1
Sea water filterAvailable
Fuel consumption(g/kw.h)≤220
Oil capacity(L)8.3
AlternatorModelOM184Z3
BrandOUMA
Rated power(KW)15     17
Excitation modeBrushless, self-excitation
Voltage regulationAuto regulation
Number of phaseThree phase,four wire
Number of pole4
Rotation speed(R/M)1500    1800
Temperature rise(℃)125
Insulation grade(stator/rotor)H/H
Voltage regulation range w/o load≥95%～105%
Steady-state voltage deviationLess ±1%
Interference factorTIF＜50,THF＜2%
IP gradeIP22
Control panelModelOM588
ManufacturerOUMA
Power outputTerminal post
InstallationIn-built and remote cable connected
Remote conrol w/ cable(M)12
ManufacturerOUMA
Auto function

Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm

Parameter display

AC voltage, frequency, running hour,
charging voltage


Competitive Advantage:


  1. Easy installation and connection.
  2. Low noise running within 62dBA at 7meters.
  3. Stable and reliable output.
  4. Removable service doors.
  5. Smallest size compared with counterparts of the same capacity.
  6. Compact and attractive aesthetic outlooking.
  7. All spare parts available.
  8. ISO and CE certificated.
