Powerful 20KW - 24KW Marine Diesel Generator Portable and Silent AC 120V / 240V
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | portable marine generator,3 phase diesel generator |
||
|---|---|---|---|

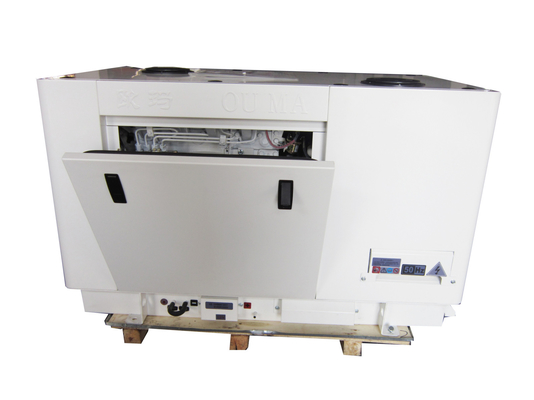

Powerful 20KW - 24KW Marine Diesel Generator Portable and Silent AC 120V / 240V
Quick Detail:
- Single phase Marine Diesel Generator
- 20KW/ 50Hz, 24KW/ 60Hz. Single or dual AC voltage
- Driven by powerful 4 cylinder diesel engine.
- Shared fuel tank with the vehicle.
- Integrated one-in-all type, easy connection and installation
Features:
1. Patent design of housing with perfect aesthetic,cooling and noise reduction effect.
2. Unique noise reduction technology, noise of silent gensets is within 62dBa.
3. Standard configuration of sea water filter, water-cooled silencer, wire remote controller, heat exchanger, sea water pump.
4. External cooling of engine by sea water or river water.
5. 60℃ radiator is used on all gensets so they can be used in all weather conditions
6. 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
7. Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
Specifications:
| Generator Set | Model | OM20CYZ |
| Brand | OUMA | |
| Rated power(KW) | 20 24 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 173/86.9 200/100 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤1430x700x800 | |
| Overall weight(kg) | ≤690 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM495 |
| Brand | OUMA | |
| Power output(KW) | 25 30 | |
| Type | 4 cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 95×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |

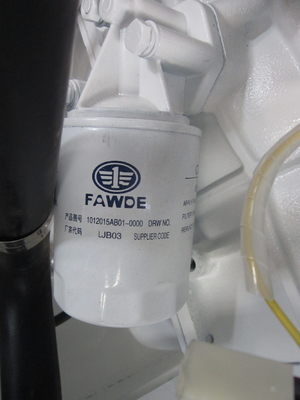

| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | External cycling sea water or river water | |
| Exhaust muffler | Water cooled | |
| Heat exchanger(L) | 9 | |
| Sea water pump suction(M) | 1 | |
| Sea water filter | Available | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184CZ |
| Brand | OUMA | |
| Rated power(KW) | 20 24 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built and remote cable connected | |
| Remote conrol w/ cable(M) | 12 | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Removable service doors.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- ISO and CE certificated.
- 15 months or 1200 running hours warranty, whichever comes first.
- Competitive price and fast delivery within 20 working days
