Professional Water Cooling Marine Diesel Generator with Compact Structure 15KW - 17KW

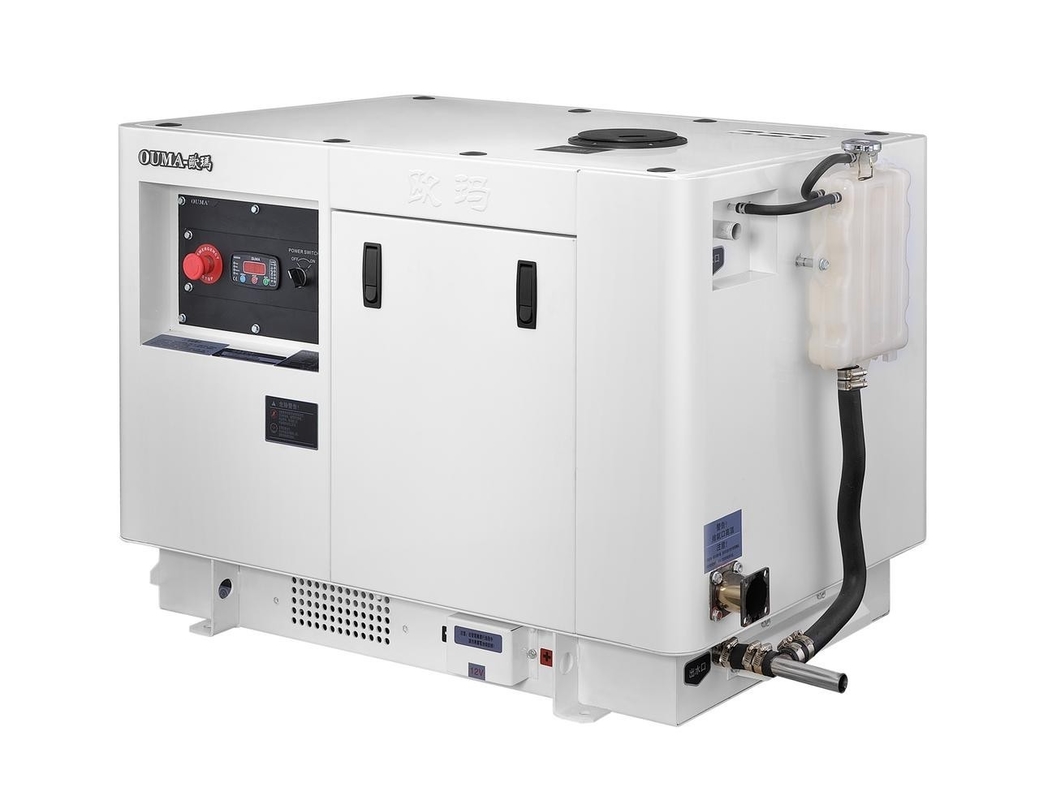

Large Image : Professional Water Cooling Marine Diesel Generator with Compact Structure 15KW - 17KW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM15CYZ

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

3 phase diesel generator

single phase diesel generator

Professional Water Cooling Marine Diesel Generator with Compact Structure 15KW - 17KW

Quick Detail:

Single phase Recreation Vehicle Generator.
15KW/ 50Hz, 17KW/ 60Hz. Single or dual AC voltage
Driven by powerful four cylinder, 210kw/1500rpm, 25kw/1800rpm diesel engine.
Shared fuel tank with the vehicle.

Description:Descriptions

Excellent power rating 15KW generators with Chinese first top FAWDE engine. This engine manufacturer is engine supplier of China First Auto Works who are producing popular automobile models such as Auti.

This generator is standard configured with sea water filter, water-cooled silencer, wire remote controller, heat exchanger, sea water pump, which ensure its smooth and reliable operation in the boat or ship.

The features of sinewave output, little vibration, low noise and low emission run all the electric applicances in the boat/ship without worrying of possible damage.

Specifications:

Generator Set	Model	OM15CYZ
	Brand	OUMA
	Rated power(KW)	15 17
	Rated voltage(V)	115/230 120/240
	Rated current(A)	130/65.2 141/70.8
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1232x680x770
	Overall weight(kg)	≤550
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM490
	Brand	OUMA
	Power output(KW)	21 25
	Type	4 cylinder, direct injection, four stroke
	Displacement(L)	2.2
	Bore×Stroke(mm)	90×105
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	External cycling sea water or river water
	Exhaust muffler	Water cooled
	Heat exchanger(L)	9
	Sea water pump suction(M)	1
	Sea water filter	Available
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM184Z
	Brand	OUMA
	Rated power(KW)	15 17
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase,three wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built and remote cable connected
	Remote conrol w/ cable(M)	12
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

Easy installation and connection.
Low noise running within 62dBA at 7meters.
Stable and reliable output.
Removable service doors.
Smallest size compared with counterparts of the same capacity.
Compact and attractive aesthetic outlooking.
15 months or 1000 running hours warranty, whichever comes first.
Smallest size and most compact structure, maximum loading and installation space.
All spare parts available.
