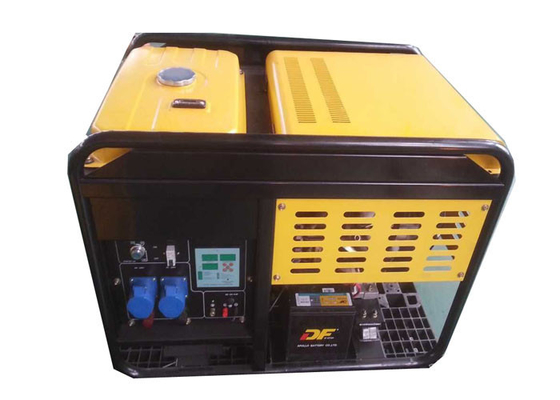

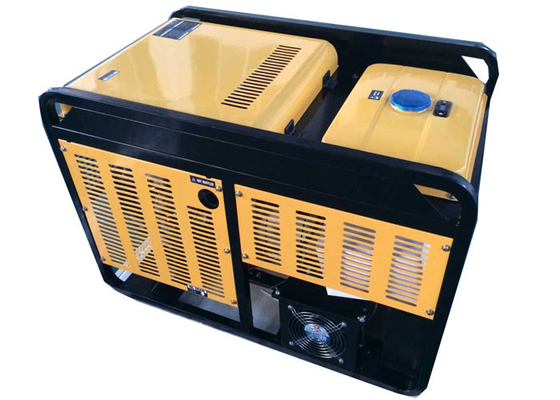

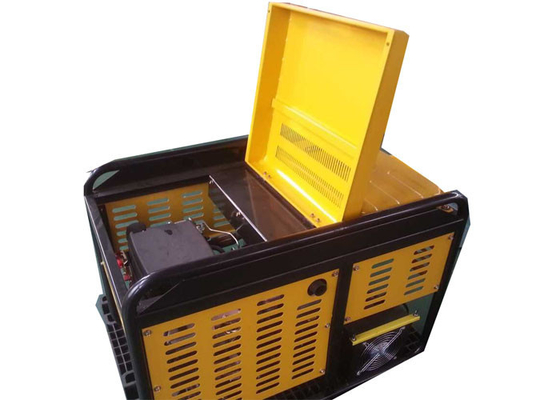

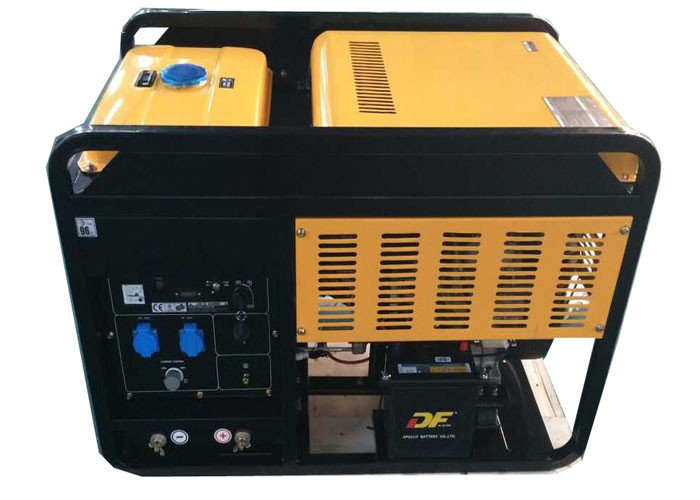

300A portable diesel generator welder 2 cylinder air cooled engine

Model

1200EW

Frequency

Hz

50          60

Rated power

KVA(KW)

3            3

Voltage

V

230         240

Electricity Amp

A

8              9.6

Phase/Factor

3/0.8

Speed

3000            3600

Welding dc current adjusting range

A

0-300

direct current welding voltage

V

25-70V

Welding load factor

60%

Welding rectifier way

· IGBT, 3 phase rectifier bridge

Pole

2

Controler model

Normal/Auto

Output type

Electric output

3 Phase socket

Welding output

 binding post

exciting type

AVR Self-excitation voltage regulator

insulation grade

H

Dimension:L*W*H

mm

850x780x820

Net weight

kg

175

Type

OPEN TYPE

Engine model

R2V840-V2

Engine type

2 cylinder,V type,4 stroke,Tur

Cylinder NO.-Bore X stroke

mm

2--86x72

Displacement

ml

840

Rated power

KW

11.76              12

Compression ratio

19:01

Rated speed

r/min

3000         3600

Sparking model

· pressure combustion

Cooling type

Air cooling

Lubricating system

Pressure and spatter composite

Start-up type

Electric start

Fuel type

Fuel 0#,-10#,-35#

Lubricating oil type

L-ECD   10W/30  15W/40

Cooling water capacity

L

   -

Lubricating oil capacity

L

2.7

Starter capacity

V-KW

12V-1.4KW

Charging generator capacity

V-A

14V-15A

Battery capacity

V-AH

12V-36AH

Fuel consumption rate

g/kw.h

≤298

Fuel tank capacity

L

25

Generator running hours

h

8
