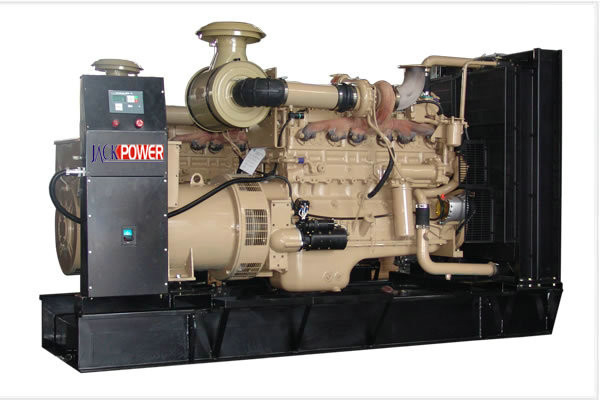

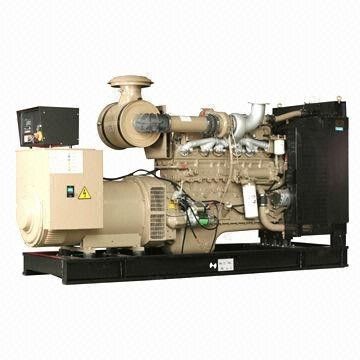

KTA19-G4 Cummins Diesel Generators , 4 Cycle , KTA19-G4 , 9L

large.img.alt
small.img.alt small.img.alt

Large Image :  KTA19-G4 Cummins Diesel Generators , 4 Cycle , KTA19-G4 , 9L Get Best Price

Product Details:
Place of Origin: China
Brand Name: JACKPOWER
Certification: ISO9001
Model Number: JP-C440
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Open type
Delivery Time: 30 days
Payment Terms: T/T L/C, 30% deposit,70% before delivery
Supply Ability: 100 units/ Per month
Port:: HongKong or ShenZhen,ShangHai,Dalian as required
Contact Now
Detailed Product Description
High Light:

diesel generators sets

,

portable diesel powered generators


1, Manufacturer / Model: CCEC Cummins KTA19-G4, 4-cycle
2, Air Intake System: Turbo, Water/Air cooling
3, Fuel System: PT type fuel pump, EFC
4, Cylinder Arrangement: 6 in line
5, Displacement: 19L
6, Rated RPM: 1500rpm
7, Governor Type: Electronic

4-Cycle Portable Diesel Generator , Cummins KTA19-G4



Standby Power(50Hz) 440KW / 550KVA

Prime Power(50Hz) 400KW / 500KVA



Dimension & Weight

Standard Configuration (Open Type)

Overall Size: 3400(mm)×1360(mm)×1980(mm)

Weight: 4040kg





General Features:

Engine (CCEC Cummins KTA19-G4)
Radiator 40OC max, fans are driven by
belt, with safety guard
24V charge alternator
Alternator: single bearing alternator IP23,
insulation class H/H
Absorber
Dry type air filter, double fuel filter, oil filter,
coolant filter
Main line circuit breaker
Standard control panel
Two12V batteries, rack and cable
Ripple flex exhaust pipe, exhaust siphon,
flange, muffler
User manual


Engine Data

Manufacturer / Model: CCEC Cummins KTA19-G4, 4-cycle
Air Intake System: Turbo, Water/Air cooling
Fuel System: PT type fuel pump, EFC
Cylinder Arrangement: 6 in line
Displacement: 19L
Bore and Stroke: 159*159(mm)
Compression Ratio: 13.9:1
Rated RPM: 1500rpm
Max. Standby Power at Rated RPM: 504KW/675HP
Governor Type: Electronic

Exhaust System
Exhaust Gas Flow: 1604L/s
Exhaust Temperature: 557℃
Max Back Pressure: 10kPa
Air Intake System
Max Intake Restriction: 6.23kPa
Consumption: 579L/s
Air Flow: 9800L/s
Fuel System
100%( Prime Power) Load: 203 g/Kw.h
75%(Prime Power) Load: 207 g/Kw.h
50%(Prime Power) Load:: 216 g/Kw.h
100%( Prime Power) Load: 101.9L/h
Oil System
Total Oil Capacity: 50L
Oil Consumption: ≤4g/kwh
Engine Oil Tank Capacity: 38L
Oil Pressure at Rated RPM: 345-483kPa
Cooling System
Total Coolant Capacity: 106L
Thermostat: 82-93℃
Max Water Temperature: 104℃





Alternator Specification
GENERAL DATA

Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.


Alternator Data


Number of Phase: 3
Connecting Type: 3 Phase and 4 Wires, “Y” type connecting
Number of Bearing: 1
Power Factor: 0.8
Protection Grade: IP23
Altitude: ≤1000m
Exciter Type: Brushless, self-exciting
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF): ＜50
THF: ＜2%
Voltage Regulation, Steady State: ≤±1%
Alternator Capacity: 500KVA
Alternator Efficiencies: 93.8%
Air Cooling Flow: 1.035m3/s





Generating set data:


Voltage Regulation: ≥±5%
Voltage Regulation, Stead State: ≤±1%
Sudden Voltage Warp (100% Sudden Reduce): ≤+25%
Sudden Voltage Warp (Sudden Increase): ≤-20%
Voltage Stable Time (100% Sudden Reduce): ≤6S
Voltage Stable Time (Sudden Increase) ≤6S
Frequency Regulation, Stead State: ≤5%
Frequency Waving: ≤0.5%
Sudden Frequency Warp (100% Sudden Reduce): ≤+12%
Sudden Frequency Warp (Sudden Increase): ≤-10%
Frequency Recovery Time (100% Sudden Reduce): ≤5S
Frequency Recovery Time (Sudden Increase): ≤5S








Options
Competitive Advantage:

High Performance of loading       Easy start
Nice protection              User-friendly operation
Low running cost           Environmental            Long service life
