Soundproof PERKINS Diesel Generator 16kw 20kva With Chint Circuit Breaker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Perkins Engine: | 404A-22G1 | Stamford Alternator: | PI144D |
|---|---|---|---|
| Prime Power: | 16KW / 20KVA | Standby Power: | 18KW / 22KVA |
| Output Type: | AC Three Phase | Frequency: | 50HZ/1500rpm |
| Cooling Method: | Water | Control System: | Deep Sea 6020 |
| Exciter: | Brushless | Fuel Consumption (l/hr)100% Load: | 3 Pole MCCB |
| Color: | White, Yellow, Blue, Red Etc. For Your Choose | Test: | Debugging Before Shipment |
| High Light: | perkins genset,Water Cooled Diesel Generator |
||

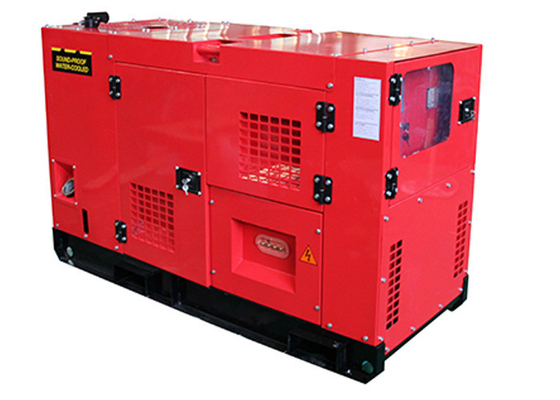

Soundproof 50HZ Perkins Diesel Generator with Prime Power 16kw 20kva
Advantage of diesel generator set powered by Perkins engine:
1. International Warranty Service
2. Short delivery time, as we always have Perkins engine in stock
3. With ISO9001&CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Marathon alternator or Chinese Aladdin alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load,75% load,100% load and 110% load
Standard configuration of diesel generator set powered by Perkins engine:
1) Original Perkins engine
2) Stamford alternator(Marathon,Aladdin brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Output Ratings
|
Gensets Model |
Prime Power |
Standby Power |
||
|
kW |
kVA |
kW |
kVA |
|
|
TP22PCS |
16 |
20 |
18 |
22 |
|
Voltage |
380V-415V |
220V-240V |
190V-208V |
|
Amps |
28-30 |
48-52 |
56-61 |
Ratings and Performance Data
|
Engine Brand |
Perkins |
|
|
Engine Model |
404A-22G1 |
|
|
Alternator Brand |
Stamford |
|
|
Alternator Model |
PI144D |
|
|
Control System |
DSE6020 / DSE7320 |
|
|
Standard Noise Level@7m |
65 db |
|
|
Circuit Breaker Type |
3 Pole MCCB |
|
|
Frequency & Phase |
50Hz & 3PH |
|
|
Engine Speed: RPM |
1500 |
|
|
Fuel Tank Capacity: L |
Open |
54 |
|
Soundproof |
||
|
Fuel Consumption (l/hr) |
110% Load |
6.2 |
|
100% Load |
5.4 |
|
|
75% Load |
4.0 |
|
|
50% Load |
2.9 |
|
|
Lubricant |
15W40 |
|
|
Total Lubricant Capacity (L) |
10.6 |
|

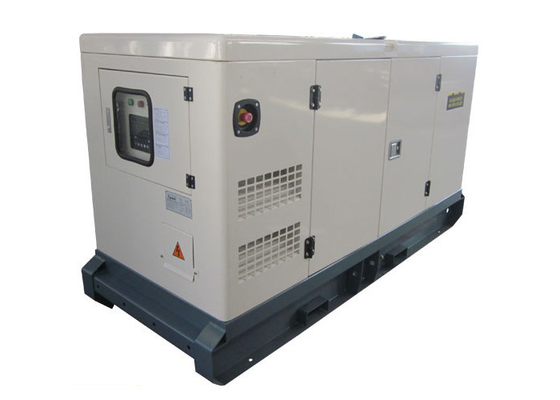

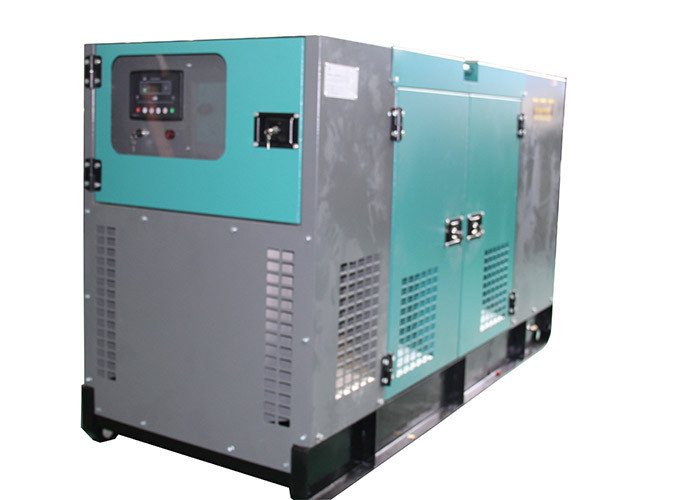

The Details of SILENT type 50hz diesel generator:
Topower Generators Co., Ltd is an Original Equipment Manufacturer of diesel generator sets
powered by Cummins diesel engines. DCEC and CCEC are JV companies of Cummins Inc.
with the power range from 25kva to 1680kva.
