Product Details:
Payment & Shipping Terms:
|
Perkins Engine Model: | 404D-22G | Stamford Alternator Model: | PI144D |
---|---|---|---|
Governing Type: | Mechanical | Displacement: | 2.216 L |
Generator Prime Power: | 16KW/20KVA | Generator Standby Power: | 18KW/22KVA |
Control System: | DSE6020 / DSE7320 | Exciter: | Brushless |
Frequency & Phase: | 50HZ & 3PH | Rated Voltage: | 380V-415V/220V-240V/190V-208V |
Rated Amps: | 28-30/48-52/56-61 | Cooling Method: | Water |
High Light: | Perkins Engine generator,Water Cooled Diesel Generator |

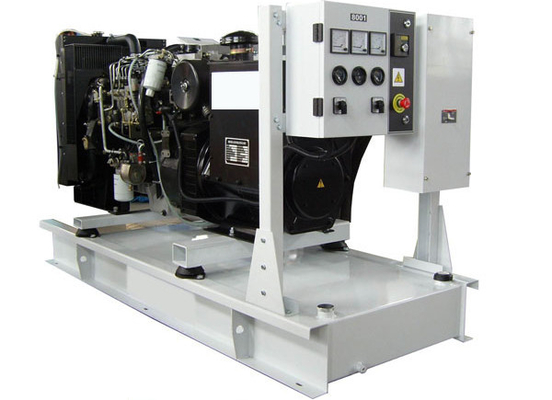

20KVA/16KW Open type mechnical governor 50HZ 1500rpm PERKINS Diesel generator
Product description:
Output Ratings
Gensets Model |
Prime Power |
Standby Power |
||
kW |
kVA |
kW |
kVA |
|
TP22PC1 |
16 |
20 |
18 |
22 |
Voltage |
380V-415V |
220V-240V |
190V-208V |
Amps |
28-30 |
48-52 |
56-61 |
Ratings and Performance Data
Engine Brand |
Perkins |
|
Engine Model |
404D-22G |
|
Alternator Brand |
Stamford |
|
Alternator Model |
PI144D |
|
Control System |
DSE6020 / DSE7320 |
|
Standard Noise Level@7m (Open Sets) |
85 db |
|
Circuit Breaker Type |
3 Pole MCCB |
|
Frequency & Phase |
50Hz & 3PH |
|
Engine Speed: RPM |
1500 |
|
Fuel Tank Capacity: L |
Open |
62 |
Soundproof |
||
Fuel Consumption (l/hr) |
110% Load |
7.1 |
100% Load |
6.2 |
|
75% Load |
4.7 |
|
50% Load |
3.4 |
|
Lubricant |
15W40 |
|
Total Lubricant Capacity (L) |
10.6 |
Dimensions and Weights
Model |
TP22PC1 |
|
Open |
||
DIM: (mm) |
L |
1260 |
W |
630 |
|
H |
730 |
|
Weights (kg) |
650 |
|
Qty. (Unit) |
20ft GP |
12 |
40 ft GP |
27 |
|
40 ft GP HQ |
27 |
|
Exhaust port Diameter (mm) |
42 |
The TP Power diesel generator design have open type ,silent type , Container type, trailer type for your choose:
For open type, the diesel genset will be much easier to maintainance and repair, with more durable performance and longer service life, so the cost performance is higher.
For silent type, diesel generator set, the noise level can be 68-78db(A)@7M; with silent canopy, the genset can be soundproof, rainproof, rustproof, dustproof and more safe.
Company infomation:
Topower Generator Co., Ltd is a manufacturer who focus on generator sets( on-site, house, commercial, removable) and related products from 10KVA-2200KVA (6.4KW-1600KW) , TP Power brand Gen-set powered by world famous engines Cummins(20kw-1200kw), Perkins(7.2kw-1800kw), Deutz (24kw-1600kw), Isuzu(20kw-64kw )and Topower (8KW-48KW), diesel engines coupled to Newage Stamford alternators, Marathon Alternators Mecc alte alternators or TP Power AC alternator, with REASONABLE PRICE and the HIGH QUALITY. The Gen-set categories include 50HZ,60HZ,1 phase, 3 phases, open, soundproof and removable types. TP POWER is the generators manufacturer to combine the western concept with china productivity. So we believe that TP POWER could support you to become most competitive. More information welcome to visit our website: www.tpgenset.com , just feel free to contact Jessica by mail " jessica@tpgenset.com", or skype "jessica.dong0429" for best price. Welcome your inquiry! We will pay great importance to your every inquiry, and provide you our best professional support!
Introduction to Perkins:
1) Perkins is one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 units for one year and quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. In the auto car, construction, agricultural, industrial and marine markets, major original equipment manufacturers choose Perkins Engines for the reliable and durable use.
2) Perkins (Wuxi) Factory is the only production base of Perkins engine in China and it can manufacture 400 series, 1104 and 1106 series of Perkins engine now.
Our certificates:
FAQ:
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package:Plastic Package.
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 25 days after we get the down payment.
A.4) Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
Q2: Any advantages about your company?
Answers: TP Brand Diesel Generators
---- Middle-high Positioning;
---- 25days Lead-time;
---- Designed by CAE and CAF Software;
---- Got the ISO and CE certificate;
---- High quality with the best price can help you get more benefit and beat your competitors;
---- Cummins, Perkins, Detuz etc. famous engine brands optional.
Q3: Any catalogue for other brands and power?
YES, WE HAVE! Just contact Jessica for latest catalogue and price list NOW!!!
