Deutz Engine: | BF4M2012 | Stamford Alternator: | UCI224E |
---|---|---|---|
Prime Power: | 50KW / 63KVA | Standby Power: | 55KW / 69KVA |
Output Type: | AC Three Phase | Frequency: | 50HZ/1500rpm |
Cooling Method: | Water | Control System: | Deep Sea 6020 |
Exciter: | Brushless | Fuel Consumption (l/hr)100% Load: | 3 Pole MCCB |
Color: | White, Yellow, Blue, Red Etc. For Your Choose | Test: | Debugging Before Shipment |
Brand: | TOPOWER | ||
High Light: | Heavy Duty Diesel Generator,DEUTZ generator set |

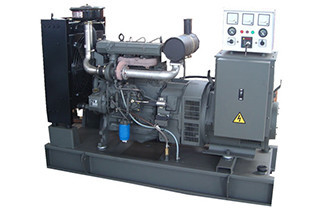

50kw 63kva Open Type AC 3 Phase 50HZ DEUTZ Diesel Generator
Advantages of Diesel Generator Set Powered by Deutz Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Marathon alternator or Chinese Aladdin alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
Standard Configuration of Diesel Generator Set Powered by Deutz Engine:
1) Deutz engine
2) Stamford alternator(Marathon, Mecc Alte, Wattek brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Output Ratings
Gensets Model |
Prime Power |
Standby Power |
||
kW |
kVA |
kW |
kVA |
|
TP69DMS |
50 |
63 |
55 |
69 |
Voltage |
380V-415V |
220V-240V |
190V-208V |
Amps |
87-95 |
150-164 |
173-190 |
Ratings and Performance Data
Engine Brand |
Deutz |
|
Engine Model |
BF4M2012 |
|
Alternator Brand |
Stamford |
|
Alternator Model |
UCI224E |
|
Control System |
DSE6020 / DSE7320 |
|
Standard Noise Level@7m (Open Sets) |
88db |
|
Circuit Breaker Type |
3 Pole MCCB |
|
Frequency & Phase |
50Hz & 3PH |
|
Engine Speed: RPM |
1500 |
|
Fuel Tank Capacity: L |
Open |
138 |
Soundproof |
||
Fuel Consumption (l/hr) |
110% Load |
/ |
100% Load |
18.9 |
|
75% Load |
13.9 |
|
50% Load |
9.5 |
|
Lubricant |
15W40 |
|
Total Lubricant Capacity (L) |
7.9 |
The Details of OPEN type 50hz diesel generator:
Topower Generators Co., Ltd is an Original Equipment Manufacturer of diesel generator sets
powered by Cummins diesel engines. DCEC and CCEC are JV companies of Cummins Inc.
with the power range from 25kva to 1680kva.
