Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit/Units except in special circumstances
Packaging Details:	polywooden box or poly plastic
Delivery Time:	20-30 days
Payment Terms:	L/C,T/T
Supply Ability:	200 Unit/Units per Month except in special circumstances

Contact Now

Detailed Product Description

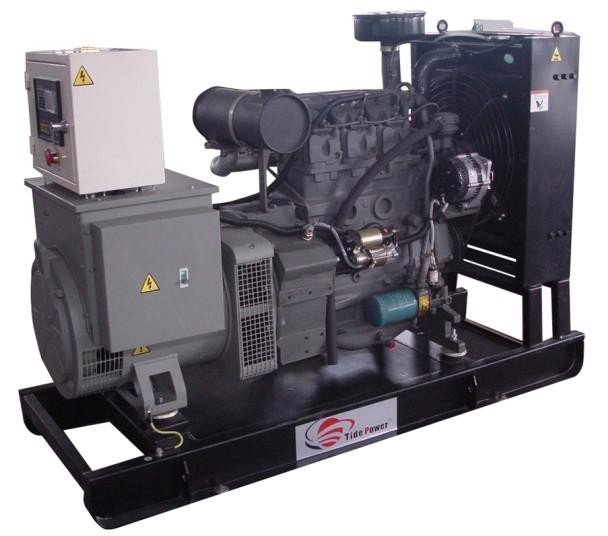

4DX series FAWDE Portable Diesel Generator
1) compact design
2) high power density
3) low noise
4) stable performance

4DX series FAWDE Portable Diesel Generator

FAWDE features:

-FAWDE 4DX series:

General
Engine type	4DX21-45D	4DX22-50D	4DX23-55D
No.of cylinders	4-cylinder	4-cylinder	4-cylinder
Working cycle	4-strock	4-strock	4-strock
Bore diameter*Stroke(mm)	102*118	102*118	102*118
Displacement(L)	3.86	3.86	3.86
Compression ratio	17:1	17:1	17:1
Dry weight of base(kg)	350	380	380
Dry weight of Gen Pac(kg)	372	405	405
Performane(without fan)
Rated speed(rpm)	1500	1500	1500
Prime power (kW)	17	26	31
Standby power(kW)	18.7	28.6	34.1
Max.torquemoment(N.m)	240	320	380
Emmision compliant	-	stageI	stageII
Steady state speed regulation	≤5	≤5	≤5
Lubrication system
Oil capacity including oil filter(L)	12.5	13	13
Oil consumption(L/hr)	≤0.04	≤0.03	≤0.02
Fule system
Fule consumption of prime power at different load(g/kWh)
75%	236	230	215
100%	235	230	215
Intake and exhaust system
Air consumption(m³/min)	2.54	3.24	3.87
Max allowable air intake restriction(kPa)	6.30	6.30	6.30
Exhaust gas temperature after turbine(°C)	550.00	450.00	450.00
Heat rejection to exhaust(Kw)	34.48	36.40	43.52
Max allowable back pressure in exhaust line(kPa)	6.70	6.70	6.70
Exhaust gas flow(m3/min)	6.90	7.77	9.29
Cooling system
Heat rejection form engine(kW)	1.98	2.58	3.30
Heat rejection to coolent(kW)	21.45	27.95	27.50
Heat rejection to intercooled(kW)	0.00	0.00	7.59
Fan power consumption(kW)	2.31	2.58	2.47
