3 Pole MCCB 50Hz 2000KAV / 1600KW Open Diesel Generator DSE6020 / DSE7320 System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Commodity: | EPA Approval Output Power 2000KAV / 1600KW UK Perkins Open Diesel Generator | Perkins Engine Model: | 4016-TAG2A |
|---|---|---|---|
| Stamford Alternator Model: | PI734F | Control Panel: | Deep Sea 6020 / 7320 |
| Prime Power: | 1600KW / 2000KVA | Standby Power: | 1760KW / 2200KVA |
| Frequncy & Voltage: | 50HZ & 400V | Engine Speed: | 1500 RPM |
| Type: | Open Type | Cooling Method: | Water-cooling Type |
| Control Mode: | Manual & Auto Start | Governing Type: | Electric Governor |
| Circuit Breaker Type: | 3 Pole MCCB | Testing: | Debugging Before Shipment |
| High Light: | diesel powered generator,diesel gen set |
||

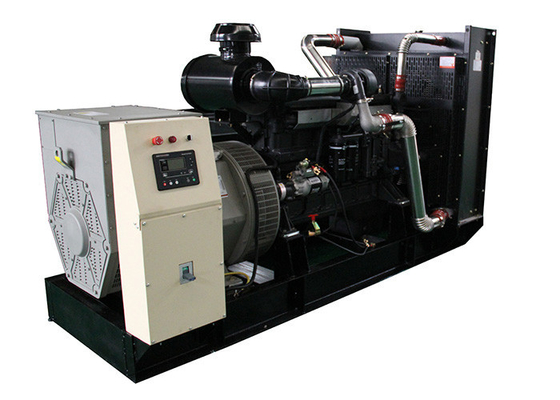

EPA Approval Output Power 2000KAV / 1600KW UK Perkins Open Diesel Generator
TP Power Diesel Gen-sets Features:
l Standard open type is good to working in engine room with ventilation system.
l The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.
l Standard soundproof type(IP21) will be working perfectly in the open air
l All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.
l All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.
l 50℃ radiator
l IP54 (soundproof sets), IP56 (control system)
l Base fuel tank for at least 8 hours running
l For friendly experience, all I/O control interface and daily maintenance parts are combined in one side
Output Ratings Of Perkins 2000KVA Open Diesel Generators :
|
Gensets Model |
Prime Power |
Standby Power |
||
|
kW |
kVA |
kW |
kVA |
|
|
TP2200P |
1600 |
2000 |
1760 |
2200 |
|
Voltage |
380V-415V |
220V-240V |
190V-208V |
|
Amps |
2782-3039 |
4811-5249 |
5552-6078 |
Ratings and Performance Data of TP2200P:
|
Engine Brand |
Perkins |
|
|
Engine Model |
4016-TAG2A |
|
|
Alternator Brand |
Stamford |
|
|
Alternator Model |
PI734F |
|
|
Control System |
DSE6020 / DSE7320 |
|
|
Standard Noise Level@7m (Open Sets) |
105 db |
|
|
Circuit Breaker Type |
3 Pole MCCB |
|
|
Frequency & Phase |
50Hz & 3PH |
|
|
Engine Speed: RPM |
1500 |
|
|
Fuel Tank Capacity: L |
Open |
4340 |
|
Soundproof |
||
|
Fuel Consumption (l/hr) |
110% Load |
483 |
|
100% Load |
434 |
|
|
75% Load |
316 |
|
|
50% Load |
210 |
|
|
Lubricant |
15W40 |
|
|
Total Lubricant Capacity (L) |
214 |
|
Standard Configuration of UK PERKINS Open Diesel Generator Set:
1) Perkins engine
2) Stamford alternator(Marathon, Mecc Alte, Chinese Wattek brand for option)
3) Deepsea DSE6020 control panel (DSE 7320 Optional)
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
9) Perkins tools
Features of UK PERKINS Open Diesel Generator Set:
1. International Warranty Service
2. Short delivery time, as we always have Perkins engine in stock
3. With ISO9001&CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Marathon alternator or Chinese Wattek alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load,75% load,100% load and 110% load
The Details of UK Perkins Open Diesel Generator Set:
Optional
|
Engine |
Alternator |
Generator |
Fuel System |
Canopy |
|
Water Jacket Preheater Oil Preheater |
Winding Temperature Measuring Instrument Alternator Preheater PMG Anti-damp and anti-corrosion treatment Anti-condensation heater |
Toolkit with the machine |
Low fuel level alarm Automatic fuel feeding system Fuel T-valves |
Trailer Galvanized |
|
Lubricating System |
Exhaust System |
Cooling System |
Control System |
Voltages |
|
Oil with the machine |
Protection board from hotness |
Front heat protection Coolant (-30°C) |
Remote control panel ATS |
415/240V 400/230V 380/220V |
The following lists are optional by the needs of customers:
|
4000 Series 1000 Hour Maintaining List |
||||
|
No. |
Part Name |
Part No. |
Qty |
Remark |
|
1 |
FUEL FILTER |
SE429B/4 |
1 |
|
|
2 |
OIL FILTER |
SE111B |
3 |
|
|
3 |
BELT |
541/398 |
1 |
|
|
4 |
AIR FILTER |
SEV551H/4 |
2 |
|
|
5 |
SEAL - ROCKER BOX COVER |
SE152E/26 |
12 |
|
|
6 |
GASKET - CYLINDER HEAD |
SE2H |
12 |
|
|
7 |
PISTON RING KIT |
359/552 |
12 |
|
|
8 |
INTAKE AND EXHAUST VALVE |
SE7AJ/14 |
48 |
|
|
9 |
INJECTOR |
726/66 |
12 |
|
|
10 |
THERMOSTAT |
SE573/1 |
4 |
|
|
11 |
TOP GASKET KIT |
12SE663W |
1 |
|
|
12 |
BOTTOM GASKET KIT |
12SE663U |
1 |
|
The TP Power diesel generator design have open type ,silent type , Container type, trailer type for your choose:
For open type, the diesel genset will be much easier to maintainance and repair, with more durable performance and longer service life, so the cost performance is higher.
For silent type, diesel generator set, the noise level can be 68-78db(A)@7M; with silent canopy, the genset can be soundproof, rainproof, rustproof, dustproof and more safe.
Company Instruction:
Topower Generator Co., Ltd is a manufacturer who focus on generator sets( on-site, house, commercial, removable) and related products from 10KVA-2200KVA (6.4KW-1600KW) , TP Power brand Gen-set powered by world famous engines Cummins(20kw-1200kw), Perkins(7.2kw-1800kw), Deutz (24kw-1600kw), Isuzu(20kw-64kw )and Topower (8KW-48KW), diesel engines coupled to Newage Stamford alternators, Marathon Alternators Mecc alte alternators or TP Power AC alternator, with REASONABLE PRICE and the HIGH QUALITY. The Gen-set categories include 50HZ,60HZ,1 phase, 3 phases, open, soundproof and removable types. TP POWER is the generators manufacturer to combine the western concept with china productivity. So we believe that TP POWER could support you to become most competitive. More information welcome to visit our website: www.tpgenset.com , just feel free to contact Tracy by mail " tracy(at)tpgenset(dot)com", or skype " shi.tracy" for best price. Welcome your inquiry! We will pay great importance to your every inquiry, and provide you our best professional support!
Our Cilents Come From All of The World:
We, TOPOWER GENERATOR CO., LTD, owned all Kinds of Certification as following, such as : ISO, CE, authorization of Perkins, Cummins, Deutz, Yanmar, Kubota, Stamford, Marathon etc.
FAQ:
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package:Plastic Package.
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 25 days after we get the down payment.
A.4) Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
Q2: Any advantages about your company?
Answers: TP Brand Diesel Generators with following advantages!
---- Middle-high Positioning;
---- 25 days Lead-time;
---- Designed by CAE and CAF Software;
---- Got the ISO and CE certificate;
---- High quality with the best price can help you get more benefit and beat your competitors;
---- Cummins, Perkins, Detuz, Doosan, Isuzu, Kubota, Yanmar etc. famous engine brands optional;
----- Open, Soundproof Canopy, Container, Trailer etc. Type for your choose;
----- Power range from 6KVA-2500KVA (5KW-2000KW).
Q3: What's your Alternator Features?
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Wattek
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Q4: Any catalogue for other brands and power?
YES, WE HAVE! Just Contact Tracy for latest Catalogue and Price List freely! (Email: tracy@tpgenset.com, Skype: shi.tracy)
