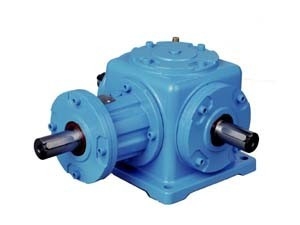

High precision Cast iron Bevel Gear Reducer / hollow shaft gear reducer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Colour: | Blue/ Red/Grey | ||
|---|---|---|---|
| High Light: | bevel gear box,helical gear box |
||
High precision Cast iron Spiral Bevel Gear Reducer / hollow shaft gear reducer
Specifications
T series Spiral Bevel Gear Reducer
1.Quality assurance,earlier delivery than the contact
2.CE,ISO9001
Quick Details
| Gearing Arrangement: |
Helical
|
Output Torque: |
11-5713N.m
|
Rated Power: |
0.014~335Kw
|
| Input Speed: |
1500r/min
|
Output Speed: |
10-1450rpm
|
Place of Origin: |
Zhejiang China (Mainland)
|
| Model Number: |
T
|
Brand Name: |
YBANG
|
Color:: |
Blue/Sliver or on customer request
|
| Ratio:: |
1,1.5,2,2.5,3,4,5
|
Warranty:: |
1Year
|
Lubricant:: |
Synthetic & Mineral
|
| Quality:: |
High precision
|
seal:: |
SKF,CTY,CFW or on customer's request
|
Bearing:: |
C&U,NSK,SKF or on customer's request
|
| Input/output shaft:: |
Solid or hollow
|
Model number:: |
T2,T4,T6,T7,T8,T10,T12,T16,T20,T25
|
Product name:: |
T series Spiral Bevel Gear Reducer
|
Packaging & Delivery
| Packaging Detail: | Carton or wooden cases |
| Delivery Detail: | 30 days after confirmed the order |
Product Description
SANSOON produces gear motors with international advanced level, including R series helical gear motors, F parallel shaft helical gear motors, K series helical bevel gear motors, S series helial worm gear motors, H series helical gear units, B series bevel helical gear units, T series bevel steering gears, WP series worm speed reducer, NMRV speed reducers and other small parts.
Steering Gear Box
|
Type: |
T series Spiral Bevel Redirector |
|
Model: |
T…I-LR(O) |
|
Others: |
T2,T4,T6,T7,T8,T10,T12,T16,T20,T25 |
|
Color: |
Blue/Sliver or on customer request |
|
Material: |
HT250 |
|
Ratio: |
1,1.5,2,2.5,3,4,5 |
|
Input power: |
0.014-335.0kw |
|
Output torque: |
11-5713N.m |
|
Input speed: |
10-1450rpm |
|
Bearing: |
C&U,NSK,SKF or on customer's request |
|
Seal: |
SKF,CTY,CFW or on customer's request |
|
Lubricant: |
Mineral |
|
Warranty: |
1Year |
Product features:T series use European technology. It has many-side steering function so that can turn around stably in low speed or high speed with lower noise, smaller vibration and strong endurance.
Application areas: Paper printing, metallurgy, mining, petrochemical industry, lifting transport, electricity, plastics machinery, building materials, environmental protection machinery, cement machinery, shipping, railway vehicle, textile printing and dyeing, etc.
