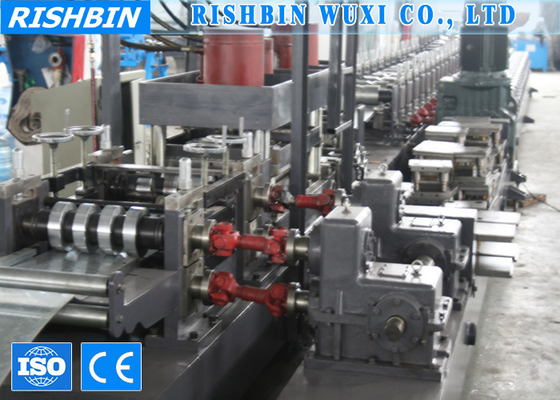

22 KW Highway Guard Rail Cold Roll Forming Machine with Cycloid Pinwheel Reducer

22 KW Highway Guard Rail Cold Roll Forming Machine with Cycloid Pinwheel Reducer

Specification of Highway Guard Rail Cold Roll Forming Machine

1. Decoiler

• Passive loading with one head on one side
• Max. loading weight: 8000Kg
• Max. Diameter of coil: 1600mm
• Max. width of coiler: 600mm

2. Feeding-in & Leveling

• Metal sheet is sent to guiding wheels (both left and right side are adjustable)
• Metal sheet is sent to delivering roller diameter is 180mm, material is steel S45C, quenched 48°C-52°C
• Leveling is done by three rollers upside and four rollers downside, which are all quenched surface treatment.

3. Punching (both left and right side are adjustable)

• Hydraulic punching
• Diameter of piston: 140mm
• Working pressure: 20Mpa
• Mould material: Cr12, quenched 58°C-62°C
• Power of hydraulic station: 15 KW
• Dimension(mm): 1500(L)X1100(W)X1200(H)

4. Forming

• Main motor power: 22 KW
• Cycloid pinwheel reducer  BWD14-43-45KW
• Transmission: gear box with universal coupling
• Shaft material: Using high-quality steel 45 quenched and tempered after finishing treatment
• Shaft diameter: 100mm
• Roller material:GCR15, quenched 58°C-62°C, electroplate surface treatment
• Number of stations: 17 stations
• Speed adjusting use frequency conversion, 5m-15m/min (not including punching)
• Frequency converter: Panasonic(380V,50Hz)
• PLC controlling
• Touch screen operation panel

5. Cutting

• Hydraulic cutting
• Material of cutting blade: Cr12, quenched 58°C-62°C
• Diameter of piston:250mm
• Working pressure: 30Mpa
• Working stroke: 80mm

6．Run out table

• Square pipe (60mm*40mm) welded (Height is adjustable)
• Dimension: 1500mm(L)X800mm(W)X600mm-1000mm(H)


Working Flow of Roll Forming Machine

Raw material loading—feeding-in with guiding (metal sheet is guided into the first forming station)--leveling—punching—rolling & forming—hydraulic cutting--run out table
