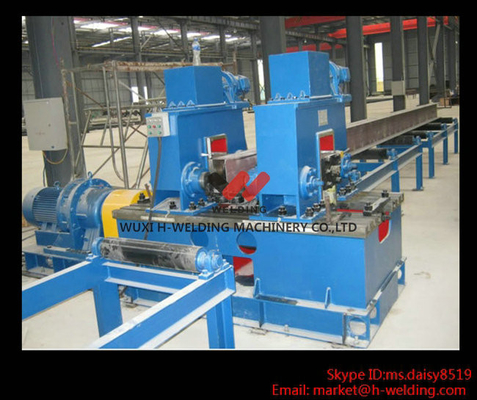

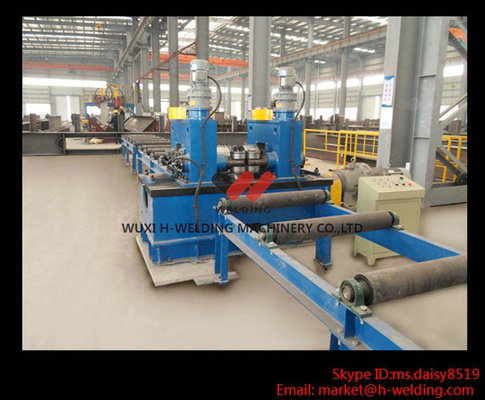

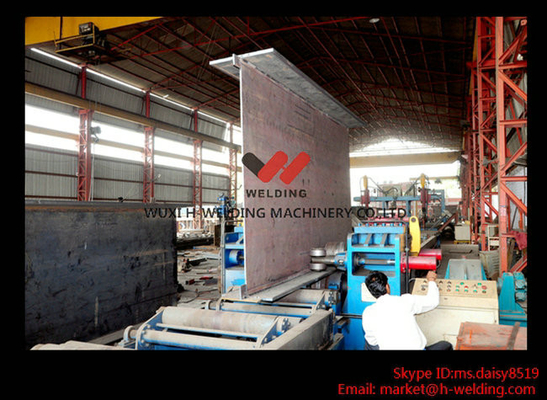

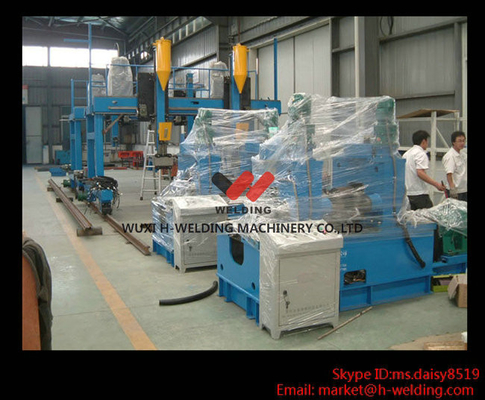

Mechanical Power Type H Beam Straightening Machine For H Beam Flange Straightening

Large Image : Mechanical Power Type H Beam Straightening Machine For H Beam Flange Straightening Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	H-WELDING
Certification:	CE
Model Number:	HYJ600

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	Mechanical Power Type H Beam Straightening Machine	Application:	H Beam Straightening
Straightening Type:	Mechanical	Conveyor:	Lifting Type
Available Flange Thickness:	Less Then 20mm	Linkage Control:	Available
Input Conveyor:	4.5m*2	Output Conveyor:	4.5m*2
High Light:	h beam production line , beam straightening machine

Mechanical Power Type H Beam Straightening Machine Used For H Beam Flange Straightening

Specifications:

Type	HYJ-600	HYJ-800	YJB-60	YTJ-80
Flange width (mm)	150-600	200-800	200-800	200-1000
Flange thickness (mm)	≤ 20	≤ 40	≤ 60	≤ 80
Min.web height (mm)	160	350	350	500
Material	Q235A	Q235A	Q345A	Q345A
Straightening speed(m/min)	8.5	18	6.37	6
Motor power (KW)	9	25	37	44
Leveling Type	Mechanical Type		Hydraulic Type

Mechanical Power Type H Beam Straightening Machine For H Beam Flange Straightening

Description:

There will be certain degree of deformation on flange of H-beam after welding.
This machine is mainly for straightening this kind of deformation.

Applications:

Max. flange thickness: s=20mm
Flange width: b=100—800mm
Minimum height of web: h >350mm(use main straightening roller)
when web height 150－350mm,flange thickness≤14mm,subsidiary straightening roller need to be used

Competitive Advantage:

HYJ-800 is a kind of H-beam flange straightening equipment developed by our company in 1993.
Its main transmission system is adopted with22KW motor and cycloidal gear speed reducer, with high transmission efficiency and rapid straightening speed.
