Agricultural Plastic Pipe Extrusion Line , Constructional drainage pvc pipe extruder machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Pvc Pipe Extruder Machine | Pipe Ronge: | 16-50mm |
|---|---|---|---|
| Extrudets: | SJSZ51/105 | Standard: | CE/ISO/SGS |
| Application: | Drainage Pipe | Screw Design: | Double-screw |
| Material Of Screw And Barrel: | 38CrMoALA | Capacity: | 160kg/h |
| High Light: | pvc pipe production line,plastic pipe production line |
||
Agricultural Plastic Pipe Extrusion Line , Constructional drainage pvc pipe extruder machine
Quick details:
| 1 | High output,high efficiency |
| 2 | easy to operate |
| 3 | dust-free cutting mode |
PVC pipe making machine has the following features:
| 1 | Extrusion Equipment of PVC pipe making machine :Single screw extruder takes the new and efficient BM Screw,and has the higher screw speed, yield and plasticizing capacity.nose or spiral-flow nose,with a uniform material,convenient adjustment to eliminate extrusion fusion line and so on. |
| 2 | Vacuum shaping devices of PVC pipe making machine :vacuum spray tank,spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material. |

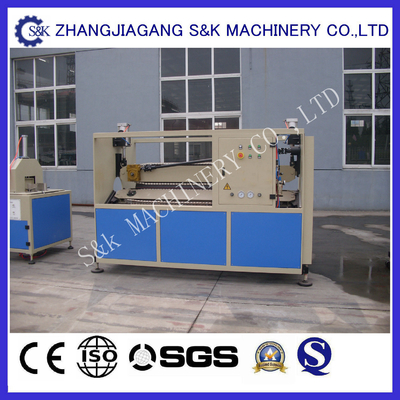

| 3 | Traction machine of PVC pipe making machine :two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements. |

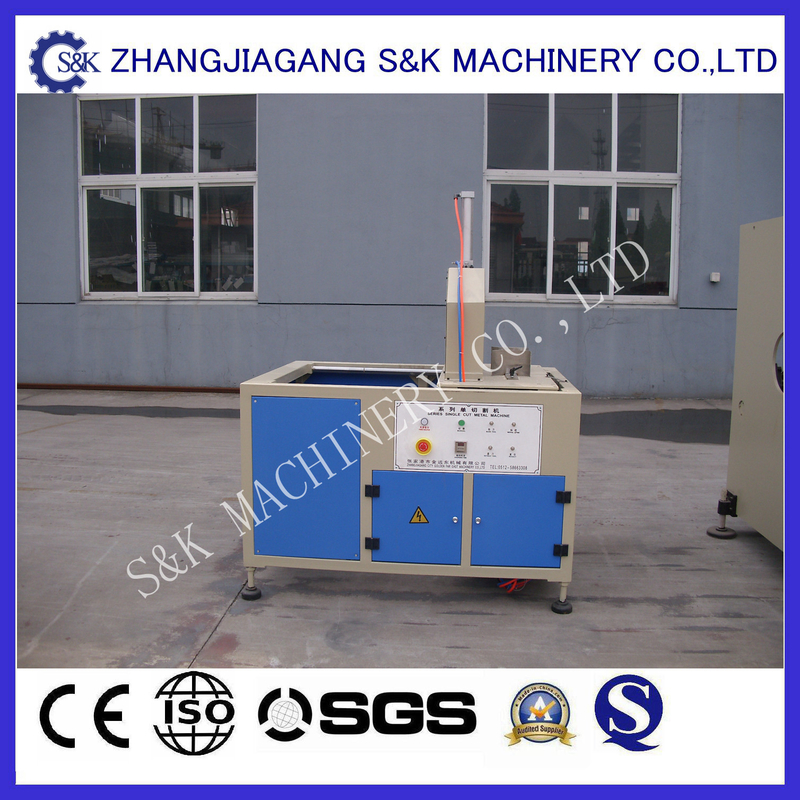

| 4 | Cutting machine of plastic pipe making machine :No dust rotating knife. |
| 5 | Stacking devices of PVC pipe making machine :automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder. |
| 6 | Electrical control system for a variety of options (eg: PLC automatic control system),good production speed,stability,and the control system is simple and easy to operate. |
Specifications:
|
SJZ51/105 |
Screw diameter |
51/105mm |
|
Machine barrel and screw material |
38CrMoAlA nitriding treatment |
|
|
Main motor power |
18.5KW |
|
|
heating sections and power |
machine barrel 4 sections；12KW |
|
|
center height |
1000mm |
|
|
cooling fan power of machine barrel |
0.25KW×3 |
|
|
Contactor and breaker |
Schneider Electric or Siemens |
|
|
Vacuum calibration tank |
Vacuum pump power |
4*1KW |
|
Water pump power |
4KW×2units |
|
|
Cycloidal-pin gear speed reducer |
1.5KW |
|
|
Pipe scope |
Ф16-50mm |
|
|
Haul off(2 claws) |
Motor power |
4KW |
|
Lift Cutter |
Saw motor |
2.2KW |
|
blower |
1.5KW |
|
|
The range of cutting pipe diameter |
Ф16-50mm |
|
|
Stacker |
Length |
5,000mm |
Competitive Advantage:
1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer’s ticket, visa, room and board, $80 per day for one people as allowance.
2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines, if key components of machine are broken for technical reason, we will replace it with new one free. (The customer should return broken components).
