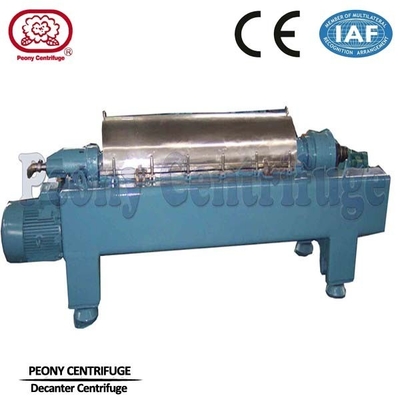

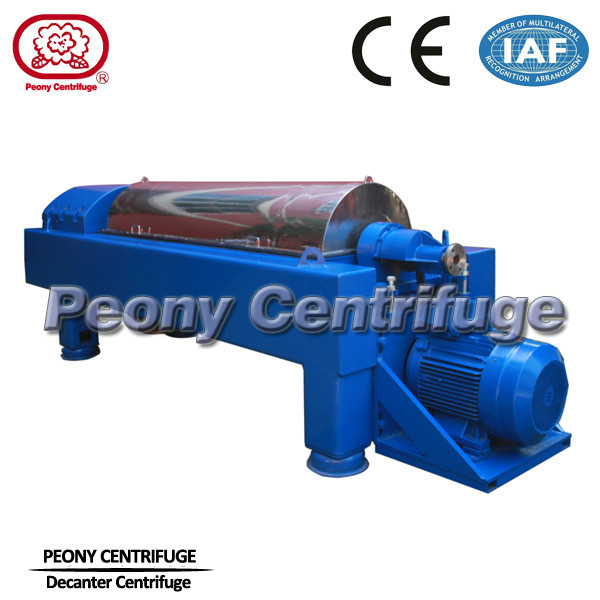

Speed Adjustable Waste / Vegetable / Animal Oil Decanter Centrifuge With Frequency Drive

Description

Waste oils, oil water, oil sludge from vegetable oil and animal oil need treated using decanter centrifugal technology to find an economical solution to reduced the disposal volume and recover valuable oil. Decanter centrifuges and centrifuge filtration-clarification systems can help to separate water and solids from the waste oils.

Application

Peony Decanter Centrifuge Systems machines can:

remove particles as small as 2 microns
separating bean seed oil,sunflower oil,fish oil,fish meat,sobean protein ,peanut protein,juice,beverage.waste oil purification,washing water purification,orange juice,benzonic acid ,coconut milk,edible oil,palm oil,olive oil,etc.

Materials

Main parts (e.g the bowl and conveyor) are made of corrosion-resistant stainless steel

Gear box of planetary differential and cycloidal needle wheel structure both available for choose,with import brand hydraulic gear box .Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.for vegetable oil and animal oil,commonly,TC sprayed is more economical and more suitable.

safety protection

Bowl speed and differential speed detection, over-vibration protection,overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.

Specifications

Competitive Advantage

•  Moc Stainless steel ,to meet GMP grade
•  Big capacity
•  Corrosion resistant an resistant key parts
•  Flexible drive and speed adjust mode
•  Famous and reliable electrical components

1. Feeding pipe 2. Discharge screw 3. Drum 4. Casing 5. Differential mechanism

Separation principle

In the gravity force field or centrifugal force field, the liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.

The machine could deal with the material which range of concentration is large, small size which widely distributing. Solid particles are less 0.5mm as rigid particles, and less than 10mm as non-rigid particles, the machine can be effectively treated.The decanter centrifuge is applicable to the separating of suspension containing

solid-phase granules with diameter greater than 0.005 mm and with the concentration

being 2~40%.

Overview

Guarantee

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
