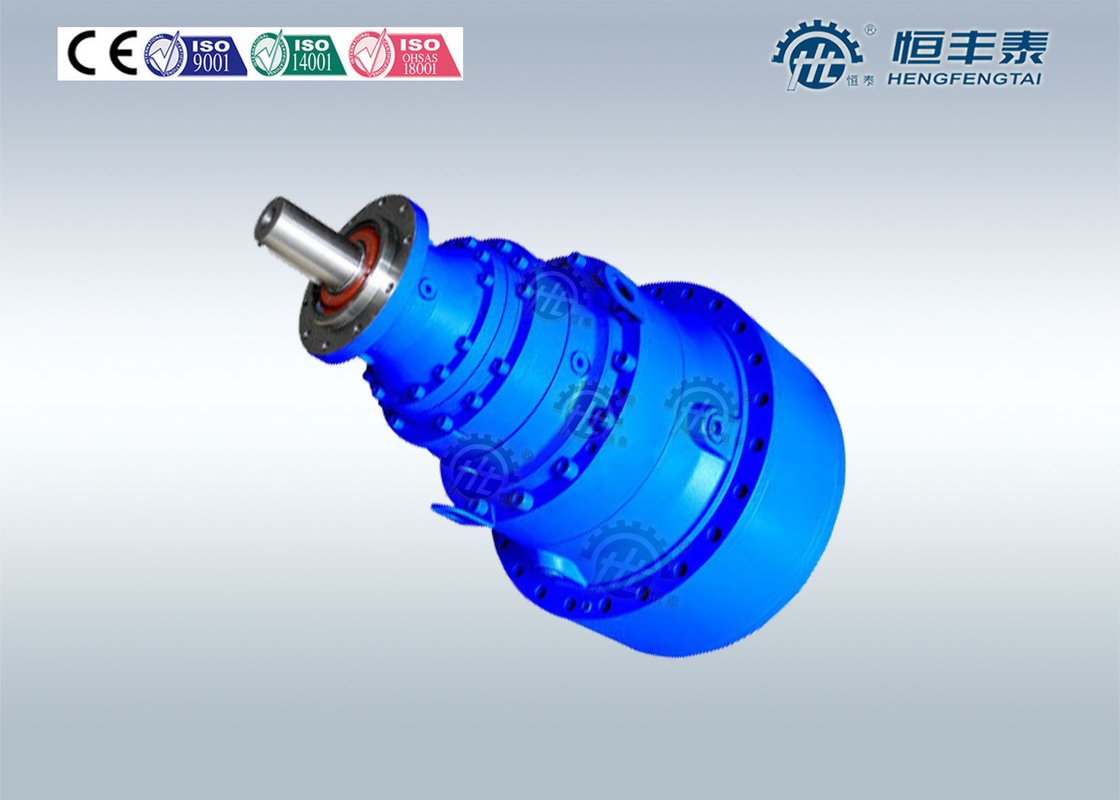

Small Industrial Planetary Gear Reducer / High Power Transmission Gearbox

Small Industrial Planetary Gear Reducer / High Power Transmission Gearbox





Quick Details:





Gearcase housing: HT cast Iron Housing suitable for outdoor installation



Mounting position: foot mounted,  hollow shaft mounted,  solid shaft mounted



Output shaft: hollow shaft , solid shaft



       Backstop: Available on all frame sizes With/without anti-back Backstop



Input Speed: 750rpm – 1800 rpm



Output Speed: 0.1 rpm- 350 rpm



Power range:0.4∼ 9551 KW



Ratio rang: I = 3.5∼15000



Torque rang: 450∼11205000 N.m









Descriptions:





This type of efficiency ensures that a high proportion of the energy being input is transmitted through the



gearbox, rather than being wasted on mechanical losses inside the gearbox.



With the HN Series Planetary Gear Reducer unit series, HENGTAI provides also standardized gear unit solutions



for higher power rating ranges in the proven HENGTAI quality. With 27 sizes and seven basic types the



PLANUREX series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1.





Specifications:





Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W



Sizes:9,10,11,12,13,14,16,17,18,19,20



Model	HN2B
	9	10	11	12	13	14	16	17	18	19	20
Output Torque(Nm)	22000	31000	42000	60000	83000	117000	160000	202000	244000	295000	35400







Applications:





• Roller presses



• Slewing gear drives



• Bucket wheel drives



• Apron conveyor drives



• Agitator drives



• Travelling gear drives



• Rotary kiln drives



• Central drives for tube mills





Storage:





1: Pls do not store in outdoor.



2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



   touch the floor.







WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.





THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER





Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution







Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.
