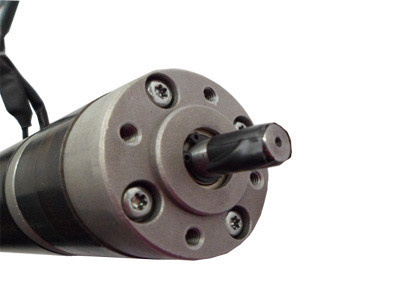

24VDC 65W 23Nm 64mm Planetary Gear Motor Wide Application , Practicality , Long Life

large.img.alt
small.img.alt

Large Image :  24VDC 65W 23Nm 64mm Planetary Gear Motor Wide Application , Practicality , Long Life Get Best Price

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-2237-E2
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: Standard export carton or pallet,10pcs/carton, 25ctns/pallet, Net weight 1.5kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
On-load Speed: 75rpm (2.5A) Power: 65W
Unload Speed: 90rpm (0.5A) Voltage: 24V
High Light:

planetary geared motor

,

dc planetary gear motor

24VDC 65W 23Nm 64mm Planetary Gear Motor Wide Application , Practicality , Long Life



Quick Detail:



Planetary gear reduce motor, Wide application, economy and practicality, long service life 24VDC 65W,23Nm





Description:



Planetary gear reduction type

High efficiency, high torque, smooth operation, low noise

Motor housing: D64mm, Black coating

Encoder available, Honeywell brand

Various Output Shaft extension





Specifications:



  • Voltage: 24V
  • Power: 65W
  • Unload speed: 90rpm (0.5A)
  • On-load speed: 75rpm (2.5A)
  • On-load speed: 4Nm
  • Stall torque: 23Nm
  • Rotate direction: CW and CCW
  • Protection class: IP 44



24VDC 65W 23Nm 64mm Planetary Gear Motor Wide Application , Practicality , Long Life







Applications:



Planetary reducer can be installed directly to the AC and DC servo motor, widely used in high accurancy automation sytems in industrial field.





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

High efficiency,Silent working, Low noise,

Easy installment, Reliable performance,Long life time
