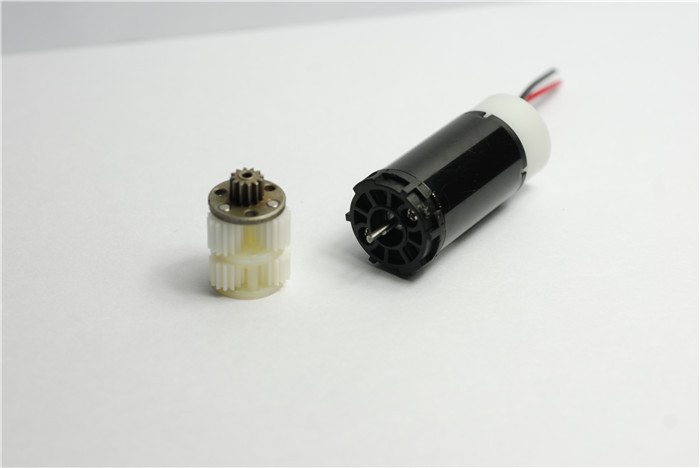

Low Noise One Speed Plastic Tilt Camera Mount Planetary Gear Motor

Large Image : Low Noise One Speed Plastic Tilt Camera Mount Planetary Gear Motor Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Zhaowei
Certification:	ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number:	ZWMD022022-4

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	negotiation
Packaging Details:	packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time:	15 working days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	600,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Tilt Camera Mount Planetary Gear Motor	Diamater:	22mm
Rated Speed:	15	Rated Current:	50 MAh
Tated Torque:	215 Gf.cm	Transmission Reduction Ratio:	4
Speed Stage:	1
High Light:	pan and tilt motor , pan and tilt camera system

Low Noise One Speed Plastic Tilt Camera Mount Planetary Gear Motor

Quick Details

diameter: 22mm
motor type: DC brush motor
noise level: less than 40dB
life time: 500 hours
working temperature: -40 to 95℃
certification: ROHS/ISO9001/ISO14001/SGS/TS16949/CE
application: automatic door & window, Medical device, Rotating advertisement, Automatic teller machine, Vending machine, and etc.
OSD Language: English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean

The basic specifications for reference only, specifications can be customized.

Specifications:

Model	At Rated Load					Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Transmission Reduction		Overall Length L	Gear Box Length L1
	Speed	Current	Torque		Power	Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Transmission Reduction
	rpm	mA(MAX)	gf.cm	mN.m	W	gf.cm	gf.cm	Ratio	Stage
ZWMD022022-4	1742	215	136	13	2.4	1000	3000	4/1	1	56.4	18.1
ZWMD022022-5	1467	215	162	16	2.4	1000	3000	5/1	1	56.4	18.1
ZWMD022022-16	435	220	452	44	2	2000	6000	16/1	2	61.5	23.2
ZWMD022022-19	367	220	537	53	2	2000	6000	19/1
ZWMD022022-23	309	220	637	62	2	2000	6000	23/1
ZWMD022022-64	109	220	1447	142	1.6	3500	10500	64/1	3	66.6	28.3
ZWMD022022-76	92	220	1718	168	1.6	3500	10500	76/1
ZWMD022022-90	77	220	2040	200	1.6	3500	10500	90/1
ZWMD022022-107	65	220	2423	238	1.6	3500	10500	107/1
ZWMD022022-256	29	220	5000	490	1.5	5000	10500	256/1	4	71.7	33.4
ZWMD022022-304	25	200	5000	490	1.3	5000	10500	304/1
ZWMD022022-361	21	170	5000	490	1.1	5000	10500	361/1
ZWMD022022-429	18	150	5000	490	0.9	5000	10500	429/1
ZWMD022022-509	15	130	5000	490	0.8	5000	10500	509/1

Main Products:

high-precision DC PLANETARY GEARBOX MOTOR, stepper motors, coreless motors & screws and plastic mesons with good quality, good price.

Cost-effective solution for MOTION control & AUTOMAITON applications: medical, semiconductor, pumps, robotics, CNC, etc.

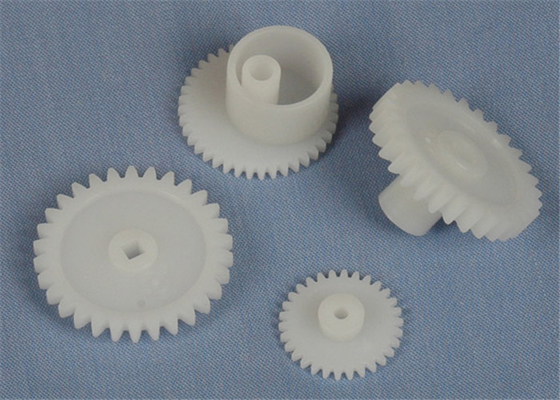

1) Precise component and assembly of plastic and metal powder injection;

2) Precise motor gear box reducer: diameter 4-40mm,

Output speed: 5-2000rpm,

Reduction ratio: 2-2000,

Output torque: 1.0gf-cm to 50Kgf-cm;

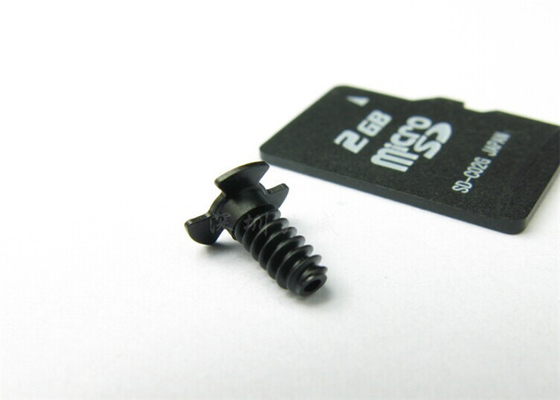

3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.

Applications:

Automobile unit, automatic kitchen & toilet, home appliance, instrument & meter, medical appliance, personal care, safety monitor, digital camera, model aero planes and toy, etc.

2D Drawing
