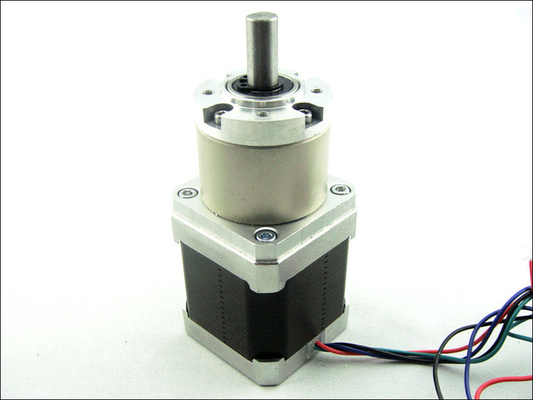

Nema 17 42mm Gear Reducer High Torque Nema Stepper Motor With Shaft , 0.9°/ 1.8°

Large Image : Nema 17 42mm Gear Reducer High Torque Nema Stepper Motor With Shaft , 0.9°/ 1.8° Get Best Price

Product Details:

Place of Origin:	shen zhen ,china
Brand Name:	HSM
Certification:	CE,ROHS ,ISO9001
Type:	Hybrid
Step Angle(degrees):	0.9/1.8 degree
Holding Torque:	Customized
Current / Phase:	Customized
Stepper Gear Motor:	Stepper Gear Motor

Contact Now

Detailed Product Description

High Light:

high torque stepper motor

nema 34 stepper motor

Nema 17 42mm Gear Reducer High Torque Nema Stepper Motor With Shaft , 0.9°/ 1.8°

Specifications

1.High torque,Low noise
2.Wide ratio from 1:3 to 1:264
3 Good price
4.high-accuracy,metal gear
5.Customized design

gear reducer stepper motor

Gearbox Dia:36mm

Stepper Dia:42mm

Stepper Motor Length: 34mm,40mm,48mm

Output shaft diameter:φ8mm

Shaft length: Can be customzied

Specification:

36PAXXXG Planetary gear reducer parameters XXX=Reduction Ratio

Reduction Ratio(X:1)	3.7	5.2	13	19	27	51	71	100	139	189	264
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4
Rated output torque(kg.cm)	20	20	30	30	30	40	40	40	40	40	40
Gear Box Length(mm)	27	27	35	35	35	43	43	43	43	50.5	50.5

42BYG Stepping motor parameter

Model	Step Angle	Length (Ld)	Phase Voltage	Phase Current	Phase Resistance	Phase Inductance	Holding Torque	Lead Wire
42BYGH25(M)-091-4A/B	1.8/0.9	25mm	12V	0.91A	3.3Ω	8mH	1600g.cm	4
42BYGH34(M)-040-4A/B	1.8/0.9	34mm	12V	0.4A	30Ω	37mH	2200g.cm	4
42BYGH40(M)-040-6A/B	1.8/0.9	40mm	2.78V	0.4A	30Ω	21mH	2570g.cm	6
42BYGH40(M)-160-4A/B	1.8/0.9	40mm	12V	1.6A	1.73Ω	3.2mH	3600g.cm	4
42BYGH48(M)-040-6A/B	1.8/0.9	48mm	3.6V	0.4A	30Ω	25mH	3200g.cm	6
42BYGH48(M)-120-4A/B	1.8/0.9	48mm	3V	1.2A	3Ω	5mH	4500g.cm	4
