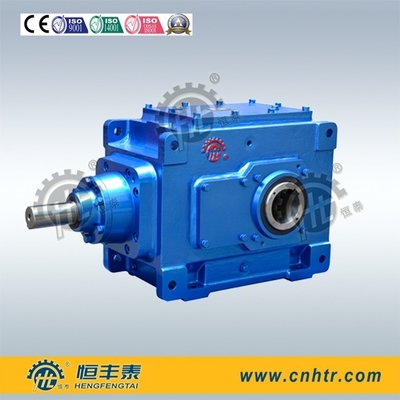

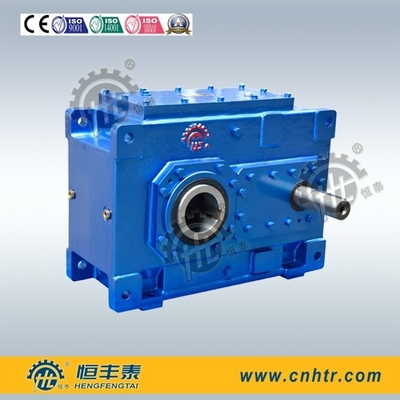

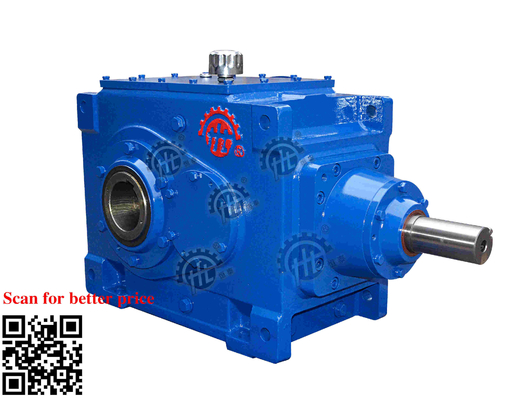

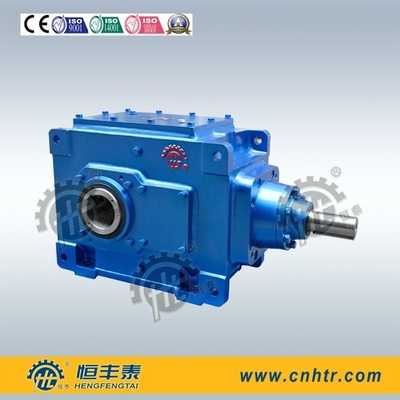

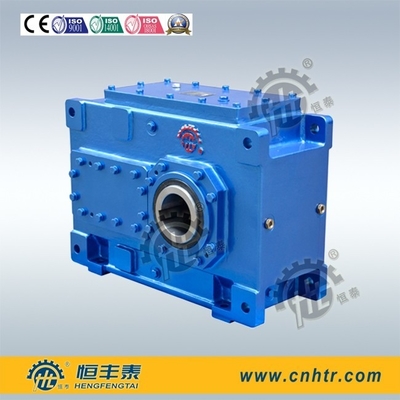

B2HH10 Series Industrial Right Angle Vertical Type Bevel Gear Unit
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ratio: | Up To 500 | Rated Power: | Up To 2000kw |
|---|---|---|---|
| Input Speed: | Up To 2000rpm | Output Speed: | 1.7-1200rpm |
| Gearing Arrangement: | Helical Bevel | Mounting Position: | Horizontal, Vertical Mounted |
| Output Shaft Design: | Hollow Shaft Output | Surface Hardness Of Gears: | HRC58~62 |
| Housing Material: | Ht 250 Cast Iron | Gear Material: | 20crmnti |
B2HH10 series industrial right angle vertical type bevel gear unit:
1, The H/B general design scheme of gear box. Can meet customer demand for gear box industry special variant.
2, parallel shafts, straight axis, vertical, horizontal universal body parts to reduce the types, specifications, increase.
3, the sound box structure and body surface area is larger, the spiral bevel gear adopts advanced lapping process and a big fan of making machine temperature, noise reduction, the reliability of operation is improved, the transmission power.
4, input methods: motor flange, shaft input.
5, output mode: solid shaft, hollow shaft with a key, shrink disc.
6, installation: horizontal, vertical, swinging base, torque arm type.
7, H, B series products are 1-22 type specifications reducer series, 1-4 level, 1.25-450 ratio, and R, K series has been a greater ratio.
ransmission stage |
BC2 (ratio from 5~18) |
| BC3 (ratio from 12.5~90) | |
| BC4 (ratio from 80~400) | |
| Housing material | HT250 high-strength cast iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | tempering, cementiting, quenching, etc. |
| Efficiency | 92%~98% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 40°C |
| Temp. rise (Oil)(MAX) | 50°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
About HB:
Company Information:
Zhejiang Hengfentai Reducer Mfg. Co.,Ltd was established in 1991, with the development of more than 24 years, we have accomplished the following achievements:
Main product: Reducers, Mixing equipments, Thickener tank, Aluminum process equipments etc.
R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 450 personnel, and advanced equipments & machines.
Turnover of last year: 50Million USD
