Product Details:
Payment & Shipping Terms:
|
Motor: | 4 Pole, 6 Pole, 960-1750 Rpm, 50Hz, 60Hz, | Flange: | IEC, NEMA |
---|---|---|---|
Mounted: | Foot Mounted (M1, B3), Flange Mounted(V1,B5) | ||
High Light: | Shaft mounted Gear Reducer,inline helical gearbox |
Gearmotors R47 R57 R67 R87 R97 R107 R137 R147 R167 same with SEW R series helical gear motor reducer :
I.Descriptions:
1). ISO9001, ISO14001 and CE certification.
2). Foot or flange mounted.
3). Input flange is IEC or NEMA standard input.
4). Dimension same with SEW.
5). Compact design, small volume, strong torque.
6). High efficiency, low energy consumption, small vibration, and low noise.
2. Model details:
|
|||||
Model |
Shaft diameter |
Power |
Ratio |
Permit torque |
Weight |
HR37 |
25 mm |
0.12-3 KW |
3.4-133.3 |
170 N.m |
15 kg |
HR47 |
30 mm |
0.12-5 KW |
3.87-182.6 |
255 N.m |
20 kg |
HR57 |
35 mm |
0.12-7.5 KW |
4.32-183.2 |
380 N.m |
25 kg |
HR67 |
35 mm |
0.12-7.5 KW |
4.32-180.7 |
510 N.m |
30 kg |
HR77 |
40 mm |
0.18-11 KW |
5.28-200.9 |
700 N.m |
40 kg |
HR87 |
50 mm |
0.55-22 KW |
5.33-245.7 |
1320 N.m |
70 kg |
HR97 |
60 mm |
0.55-37 KW |
4.52-280.6 |
2550 N.m |
112 kg |
HR107 |
70 mm |
2.2-55 KW |
4.98-255.4 |
3670 N.m |
169 kg |
HR137 |
90 mm |
5.5-75 KW |
5.22-223.2 |
6800 N.m |
245 kg |
HR147 |
110 mm |
11-110 KW |
4.93-162.1 |
11050 N.m |
420 kg |
HR167 |
120 mm |
11-160 KW |
10.43-224.6 |
15300 N.m |
750 kg |
3. FAQS:
1). MOQ: 1 pcs
2). Delivery lead time: 18-25 days
3). Payment terms: FOB, CIF
4). Payment method: T/T, 30% in advance, 70% before delivery
5). Shipping port: Shanghai /Ningbo
6). Warranty: 15 months
4.How to do business for buy?
1). Confirmed requirements, like your power KW, output speed RPM, gear ratio··· (Buyer)
2). Choose model (Seller)
3). Send quotation/price (Seller)
4). Negotiate the price, delivery time, payment terms, and others. (Seller and buyer)
5). Confirmed order (Buyer)
6). Send PI/proforma invoice (Seller)
7). Send payment (Buyer)
8). Production, delivery, shipment documents (Seller)
9). Receive goods (Buyer)

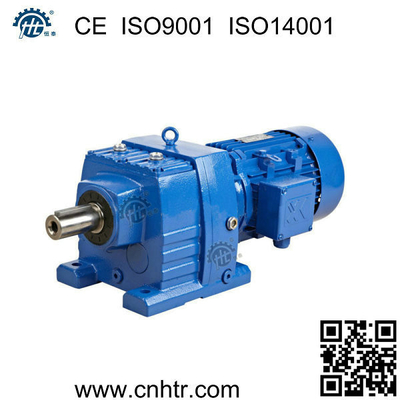

5. HR Picture:
6. HR Dimensions:
