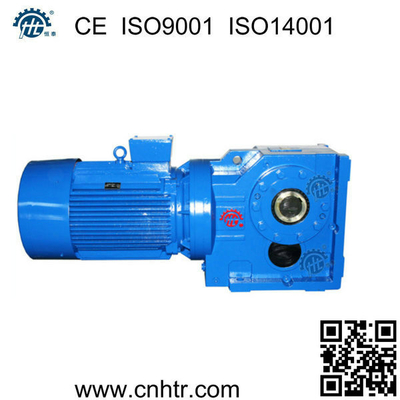

K KA series bevel helical gear motor reducer hollow shaft gearbox speed reduction

Large Image : K KA series bevel helical gear motor reducer hollow shaft gearbox speed reduction Get Best Price

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hengtai Reducer
Certification:	ISO,CE
Model Number:	HK37-HK187

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD 150 - 2000
Packaging Details:	8 PCS packed in 1 pallet, standard export wooden case.
Delivery Time:	15-20 DAYS
Payment Terms:	TT, L/C, Western Union, D/P
Supply Ability:	2000 pcs / month
Warranty:	15 months

Contact Now

Detailed Product Description

Power:	0.12-200 KW	Input Speed:	750-1800 Rpm
Input Motor:	4 Poles, 6 Poles, 8 Poles, 50Hz, 60Hz ···	Ratio:	4-195
Torque:	170-42500 N.m	Output Shaft:	Hollow Shaft, Solid Shaft
High Light:	helical speed reducer , Shaft mounted Gear Reducer

K KA series bevel helical gear motor reducer hollow shaft gearbox speed reduction:

Model details:

Model	Shaft diameter		Power	Ratio	Permit torque	Weight
Model	HK(solid output shaft)	HKA (hollow output shaft)	Power	Ratio	Permit torque	Weight
HK37	25 mm	30 mm	0.12-3 KW	4.09 -106.6	170 N.m	15 kg
HK47	30 mm	35 mm	0.12-3 KW	4.66 - 131.7	340 N.m	22 kg
HK57	35 mm	40 mm	0.12-4 KW	4.68 -143.5	510 N.m	30 kg
HK67	40 mm	40 mm	0.18-5.5 KW	7.16 - 146.2	705 N.m	40 kg
HK77	50 mm	50 mm	0.37-11 KW	7.11 - 192.7	1320 N.m	63 kg
HK87	60 mm	60 mm	0.75-22 KW	7.42 - 195.2	2300 N.m	94 kg
HK97	70 mm	70 mm	1.1-30 KW	8.88 - 176.5	3670 N.m	145 kg
HK107	90 mm	90 mm	3-45 KW	8.72 - 147.2	6800 N.m	275 kg
HK127	110 mm	100 mm	7.5-90 KW	8.6 - 144.4	11050 N.m	420 kg
HK157	120 mm	120 mm	11-160 KW	12.7 - 151.1	15300 N.m	680 kg
HK167	160 mm	140 mm	15-200 KW	17.3 - 161	27200 N.m	1130 kg
HK187	190 mm	160 mm	15-200 KW	17.1 - 180.7	42500 N.m	1870 kg

Descriptions:

1). ISO9001, ISO14001 and CE certification. ,

2). Input flange is IEC or NEMA standard input.

3). Dimension same with SEW.

4). Compact design, small volume, strong torque.

5). High efficiency, low energy consumption, small vibration, and low noise.
