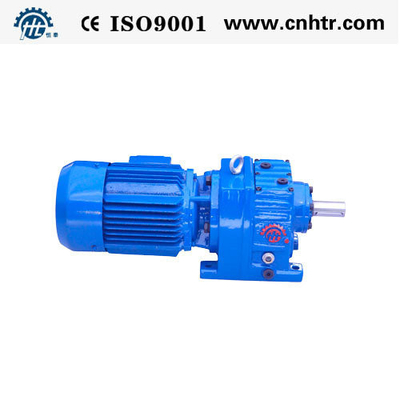

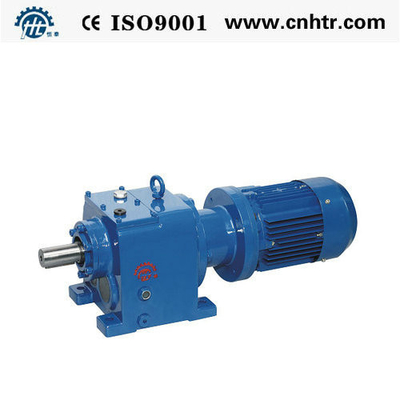

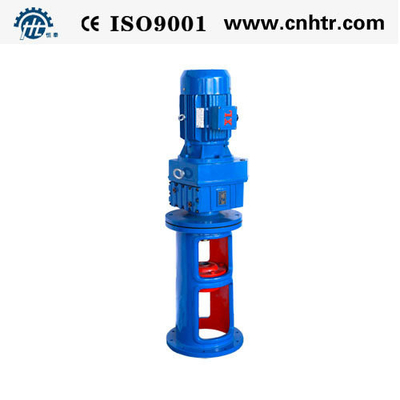

industrial shaft mounted gear reducer , conveyor / mixer gearbox

Quick Details

• Gearing Arrangement: Helical

• Output Torque: 110Nm-15300 N.m

• Rated Power: 0.12-160KW

• Input Speed:750-1800 rpm

• Output Speed: 2.67-534RPM

• Place of Origin: Zhejiang, China (Mainland)

• Model Number: HR17-HR167

• Brand Name: HENGTAI

• Color: According to customer

• Ratio:3.4-280.6

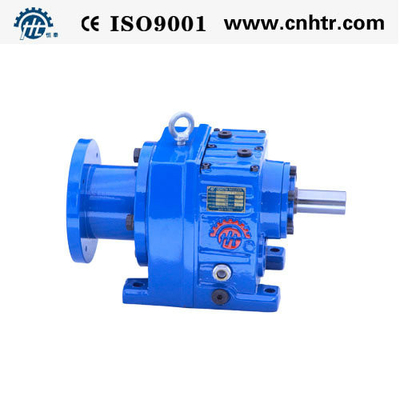

• Mounting position: foot or flange mounted

• Material for box: cast iron

• Packing: Strong wooden cases for exporting

• Output shaft: solid shaft

• Accessories: flange, solid shaft, coupling etc

Description:

SEW HR series shaft mounted gear reducer is based on the unique modulation combination system, so its

convenient for them to fit all types of motors or to connect with other power input. The same type of reducer

can fit motors with different power, so that its possible for different types of machines to combine or

connect.SEW HR series shaft mounted gear reducer are novel transmission device and composed of Y

series motor, helical gear, Gelisen arc cone gear and warm gear. The gears are made of high wear-

resisting alloy materials, specially treated and finely processed.

Models:

HR17/HR27/HR37/HR47/HR57/HR67/HR77

HR87/HR97HR107/HR137/HR147/HR167

Applications:

1. Bagger

2. Enginery for foot industry

3. Washer

4. working machine

5. Cropping & shearing machine

6. woodworking machine

7. Machines for plastic industry

Specifications:

The input powerpermissible torque and weight list of HR reducer

Competitive Advantage:

1. Compact design, small volume, nice appearance and strong capacity of being overloaded.

2. percise division , wide selection range.

3. High efficiency, low energy consumption, excellent function, small vibration, and low noise.

4. All - purpose use, convenient, low cost maintenance.

5. Using new seal device-good protection , stong adaptability, capable of working continually in

   corrosive or damp environment.

6. Hr series gear can match all kinds of motors/mounting position/structure projects.

7. With small volume, helical gear units achieves the output torque range of 69-18000NM, and output

    power as much as 200 KW.
