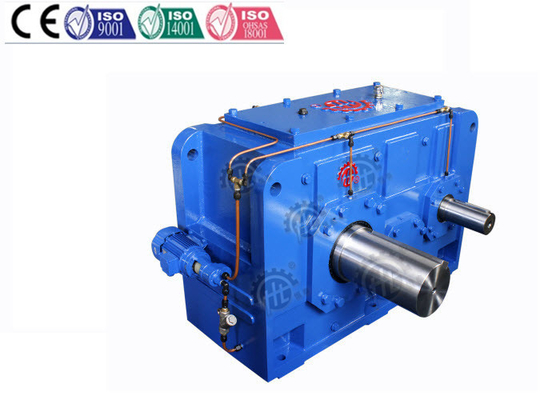

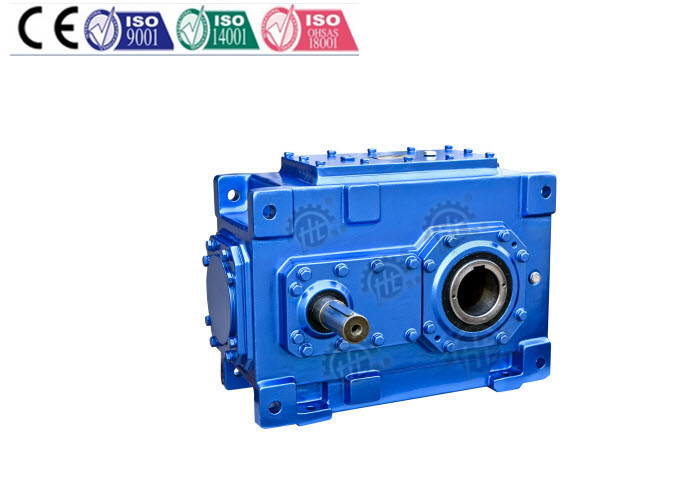

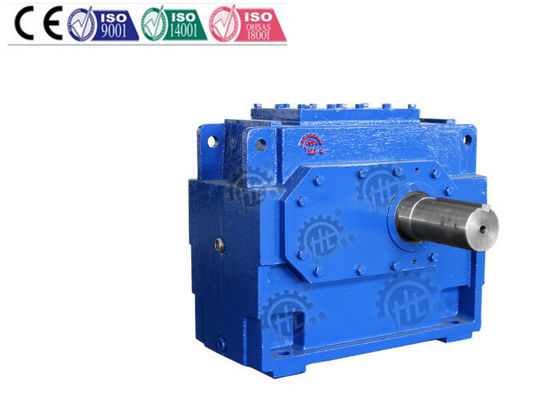

Helical Parallel gear Shaft Mounted Speed Reducer HH series with high power density

Quick Details:

·         Gearing Arrangement: Helical

·         Output Torque: 450000 N.m

·         Rated Power: 1.1-5100KW

·         Input Speed: 750-1500 rpm

·         Output Speed: 1.67-1200RPM

·         Place of Origin: Zhejiang, China (Mainland)

·         Model Number: H1SH3-H4SH26

·         Brand Name: HENGTAI

·         Color: According to customer

·         Ratio: 1.25-450

·         Mounting position: foot mounted

·         Material for box: cast iron

·         Packing: Strong wooden cases for exporting

·         Output shaft: Solid or hollow output shaft

·         Accessories: cooling system, lubrication system

·         Output shaft diameter: 30-420MM

Descriptions:

H.H series Shaft Mounted Speed Reducer  are especially compact helical and helical-bevel gear units. H.H

series Shaft Mounted Speed Reducer covers a torque range of 2000-450000 N.m. Parallel shaft design of

H.H series Shaft Mounted Speed Reducer offers you a great deal of freedom in system design and requires

remarkably little space. Application range for H.H series Shaft Mounted Speed Reducer: e.g. in materials

handling, transporting heavy loads, mixing, crane drives and shredders. A version, based on this series,

with extended bearing distance and reinforced output shaft, is also available.

Specification:

Your benefits:

1. Extremely robust gear unit housing

2. Reduced costs and weight due to high power density and finely stepped sizes

3. Effective cooling systems

4. CCW and CW versions may be implemented in a single gear unit version

5. Flexible mounting capability

6. Efficient project planning tools including 2D and 3D dimension drawing generators

7. Short delivery times for standard versions and spare parts

Applications:

Photo: HH series Shaft Mounted Speed Reducer applied in Factory

Maintenance:

After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.

Pls do not mix the mineral oil and synthetic oil.

Pls check the oil level in regular time.

The cause for breakdown and settlement of reducer:

Storage:

1:Pls do not store in outdoor.

2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly

touch the floor.

Warranty:

HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or

replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.

The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or

indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.

Competitive Advantage:

       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi

     Industry Zone, covering area 50000 square meters and 350 staff so far.

  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are

more than 40 professional technical engineers. We had 49 items patents including 7 items of

invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international

invention patent and 5 items which are accepted by National SIPO wait for approval.

  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-

process selling network. Relying on high quality products and perfect service, our products have

been successfully applied by more than 5000 customers.
