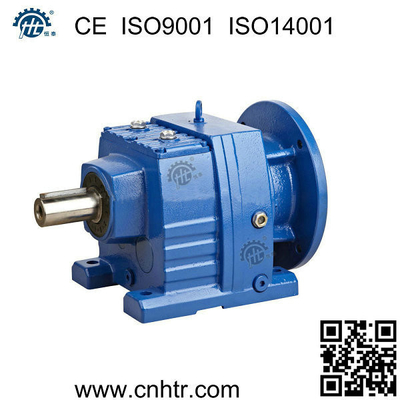

R series IEC or NEMA input flange electric motor reduction helical gearbox

Large Image : R series IEC or NEMA input flange electric motor reduction helical gearbox Get Best Price

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hengtai Reducer
Certification:	ISO9001, ISO14001, CE
Model Number:	HR37-HR167
Ratio:	3.37-280.6
Power:	0.12-160 KW
Torque:	110-15300 N.m

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD150.00 - USD2000.00
Packaging Details:	8 PCS packed in 1 pallet, standard export wooden case.
Delivery Time:	15-20 DAYS
Payment Terms:	TT, L/C, Western Union
Supply Ability:	5000 pcs / month
Warranty:	15 months

Contact Now

Detailed Product Description

Flange:

IEC, NEMA

Mounted:

Foot Mounted(M1,B3); Flange Mounted(B5,V1)

High Light:

helical speed reducer

Shaft mounted Gear Reducer

R series IEC or NEMA input flange electric motor reduction helical gearbox:

Quick detals:

Models: R37, R47, R57, R67, R77, R87, R97, R107, R137, R147, R167

Power: 0.12-160 KW

Input motor: 4 poles, 6 poles,50-60Hz, IP54-IP55, 380V, 220/380V, 380/660V

Output speed: 3.5-450 rpm

Output torque: 110-15300 N.m

Motor input: IEC or NEMA flange

Certificate: CE, ISO9001, ISO14001

Model technical details:


Model	Shaft diameter	Power	Ratio	Permit torque	Weight
HR37	25 mm	0.12-3 KW	3.4-133.3	170 N.m	15 kg
HR47	30 mm	0.12-5 KW	3.87-182.6	255 N.m	20 kg
HR57	35 mm	0.12-7.5 KW	4.32-183.2	380 N.m	25 kg
HR67	35 mm	0.12-7.5 KW	4.32-180.7	510 N.m	30 kg
HR77	40 mm	0.18-11 KW	5.28-200.9	700 N.m	40 kg
HR87	50 mm	0.55-22 KW	5.33-245.7	1320 N.m	70 kg
HR97	60 mm	0.55-37 KW	4.52-280.6	2550 N.m	112 kg
HR107	70 mm	2.2-55 KW	4.98-255.4	3670 N.m	169 kg
HR137	90 mm	5.5-75 KW	5.22-223.2	6800 N.m	245 kg
HR147	110 mm	11-110 KW	4.93-162.1	11050 N.m	420 kg
HR167	120 mm	11-160 KW	10.43-224.6	15300 N.m	750 kg
