98% Efficiency Helical Gear Reducer Hardened Hrc58-62 Mining Conveyor Crusher

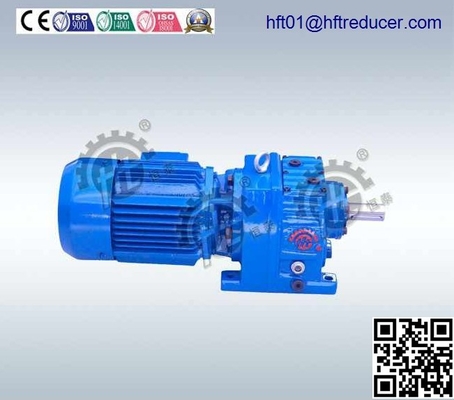

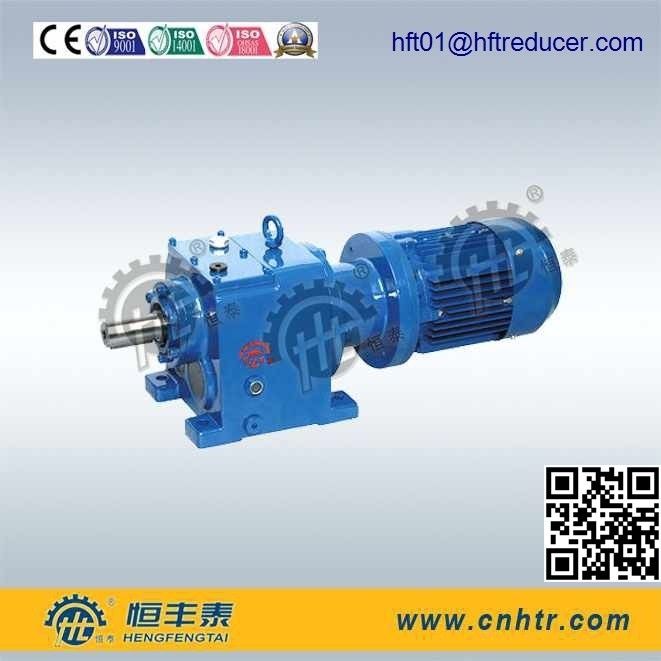

Large Image : 98% Efficiency Helical Gear Reducer Hardened Hrc58-62 Mining Conveyor Crusher Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HR series

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD120-3000
Packaging Details:	1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time:	30 days
Payment Terms:	T/T or LC
Supply Ability:	2000 Pcs/month

Contact Now

Detailed Product Description

Models:	R17-R167	Torque:	1.4-23200Nm
Gear Material:	20CrMnTi	Use Temperature:	-40-50 Degree
Input Speed:	<2800 Rpm

98% Efficiency Helical Gear Reducer Hardened Hrc58-62 Mining Conveyor Crusher

HR helical gear reducer dimensions:

Model	Shaft Dia.	Center Height	Output Flange Dia.	Power	Ratio	Permitted Torque	Weight
Model	Solid (mm)	(mm)	(mm)	(kw)	Ratio	(Nm)	(KGS)
R37	25k6	90h13	120/160	0.12~0.75	5~136	150	10
R47	30k6	115h13	160/200	0.25~2.2	5~173	300	15
R57	35k6	115h13	200/250	1.18~5.5	5~173	400	21
R67	35k6	130h13	200/250	0.37~7.5	5~170	500	27
R77	40k6	140h13	250/300	0.55~11	5~192	750	35
R87	50k6	180h13	300/350	0.75~18.5	5~192	1250	65
R97	60m6	225h13	350/450	1.5~30	5~197	2400	120
R107	70m6	250h13	350/450	2.2~45	5~197	3600	165
R137	90m6	315h13	450/550	4~55	5~197	6600	255
R147	110m6	355h13	450/550	7.5~90	5~195	10700	370
R167	120m6	425h13	550/660	11~132	8~186	14800	700
R187	160m6	510h13	660/770	15~160	8~186	28000	1500
Remark: the weight without oil and motor, shaft and flange input add 10%.

Performance Characteristics :

Power	0.12kw	0.35kw	0.75kw	1.1kw	1.5kw	2.2kw	3.0kw
	4.0kw	5.5kw	7.5kw	11.0kw	15kw	18.5kw	22kw
	30kw	37kw	45kw	55kw	90kw	110kw	132 kw
Torque	69N.m-18000N.m
Ratio	1.3-21342
Color	RAL5010 blue or as clients' requirement
Material	Cast Iron or as clients' requirement
Packing	Plywood Carton Box or as clients' requirement
Type	R..27	R..37	R..47	R..57	R..67	R..77	R..87
Type	R..97	R..107	R..137	R..147	R..167
Mounting Methods	Foot Installation				Flange Installation
Mounting Methods	Various of mortors or double shafts can be equipped

Applications:

Gear Box's Usage Field		Gear Box's Usage
1	Metallurgy	1	Agitator
2	Mine	2	Blast fan
3	Machine	3	Hoister
4	Energy	4	Compressor
5	Transportation	5	Petroleum industry
6	Water Conserbancy	6	Air Compressor
7	Tomacco	7	Crusher
8	Pharmacy	8	Plastic extruder
9	Printing Package	9	Conveyer
10	Chemical industry	10	Textile indutry
