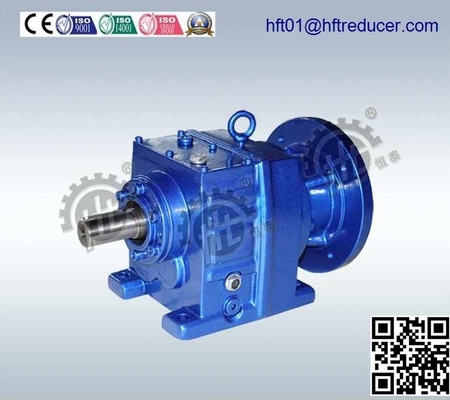

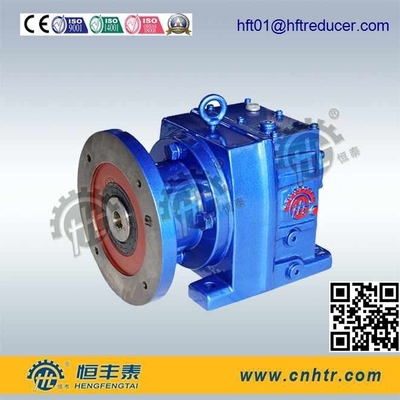

Food Machine Helical Gear Reducer R107 Fit with 1400rpm Motor Input Shaft 70mm

Large Image : Food Machine Helical Gear Reducer R107 Fit with 1400rpm Motor Input Shaft 70mm Get Best Price

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hengfengtai Helical Gear Reducer
Certification:	CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number:	HR 24-167

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	USD 100-2000
Packaging Details:	Wooden Case, Standard Export Package
Delivery Time:	25 Days
Payment Terms:	T/T; L/C
Supply Ability:	800 Pcs / Month

Contact Now

Detailed Product Description

Mounting:

Flange Mounted

Application:

Mixer Agitator

Bearing Brand:

LYC,HRB,ZWZ

Input Speed:

1450rpm

High Light:

helical speed reducer

inline helical gearbox

Food Machine Helical Gear Reducer R107 Fit with 1400rpm Motor Input Shaft 70mm

Quick Details:

Model	27	37	47	57	67	77
Structure form		HRHR..FHRF
Input power	0.12-3	0.12-3	0.12-5.5	0.12-7.5	0.12-7.5	0.18-11
Ratio	3.37-136	3.4-133.3	3.87-182.6	4.32-183.2	4.32-180.7	5.28-200.9
Permissible torque	110	170	255	380	510	700
weight	6.2	9.4	11	20	28	40
Model	87	97	107	137	147	167
Structure form		HRHR..FHRF
Input power	0.55-22	0.55-37	2.2-55	5.5-75	11-110	11-160
Ratio	5.33-245.7	4.52-280.6	4.98-255.4	5.22-223.2	4.93-162.1	10.43-224.6
Permissible torque	1320	2550	3670	6800	11050	15300
weight	70	112	169	245	440	770

HR helical gear box dimension:

Model	Shaft Dia.(mm)	Output Flange Dia.	Power	Ratio	Permitted Torque	Weight
Model	Solid	(mm)	(kw)	Ratio	(Nm)	(KGS)
R37	25k6	120	0.12~3	3.4~1383.3	170	9.4
R47	30k6	140	0.12~5.5	3.87~182.6	255	11
R57	35k6	160	0.12~7.5	4.32~183.2	380	20
R67	35k6	200	0.12~7.5	4.32~180.7	510	28
R77	40k6	250	0.18~11	5.28~200.9	700	40
R87	50m6	300	0.55~22	5.33~245.7	1320	70
R97	60m6	350	0.55~37	4.52~280.6	2550	112
R107	70m6	350	2.2~55	4.98~255.4	3670	169
R137	90m6	450	5.5~75	5.22~223.2	6800	245
R147	110m6	450	11~110	4.93~162.1	11050	440
R167	120 m6	550	11~160	10.43~224.6	15300	770

Mounting Arrangements

Different kinds of mounting arrangements are defined as following:

M1	orizontally mounted motor,unit foot(forR,RX)or unit base (for RF,RXF) is at bottom.
M2	motor is vertically mounted downwards.
M3	horizontally mounted motor, unit foot(forR,RX)or unit base (for RF,RXF) is top.
M4	motor is vertically mounted upwards.
M5	horizontally mounted motor,if placed on M1 position,left side of unit turns to bottom (view point:towards from motor side).
M6	horizontally mounted motor,if placed on M1 position,left side of unit turns to top (view point:towards from motor side).
