Material Allocator Helical Gear Reducer R37 With Ratio 25/1 Power 3kw Motor

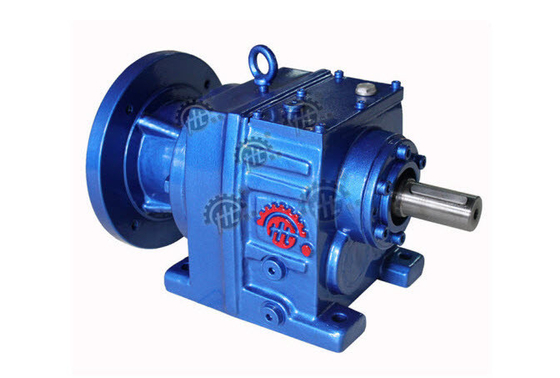

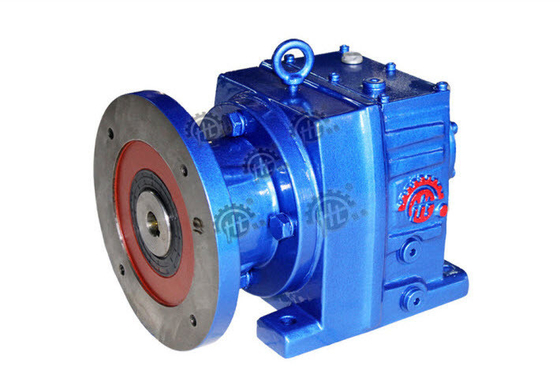

Large Image : Material Allocator Helical Gear Reducer R37 With Ratio 25/1 Power 3kw Motor Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HR series

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	USD120-2300
Packaging Details:	1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time:	30 days
Payment Terms:	T/T or LC
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Model:

Hr37

Apply:

Food Machine

Shaft:

Solid

Power:

3 Kw

High Light:

helical speed reducer

inline helical gearbox

Material Allocator Helical Gear Reducer R37 With Ratio 25/1 Power 3kw Motor

Quick Details

Helical Gear Box

For R gear box, the boxes are cast iron of grey iron 250.

the gears are made of high-quality alloy steel 20 Crmnti, are treated with surface hardening and gear grouned Hrc58-62

and the key parts are imported. The whole geared motors are small in volume,

with great load-carrying capacity,steady running, low noise and high efficiency.

Descriptions:

Power	0.12kw	0.18kw	0.25kw	0.37kw	0.55kw	0.75kw	1.1kw
	1.5kw	2.2kw	3kw	4kw	5.5kw	7.5kw	11kw
	15kw	18.5kw	22kw	30kw	37kw	45kw	55kw
	75kw	90kw	110kw	132kw	160kw
Torque	85N.m-18000N.m
Ratio	1.4-28000
Color	Chinese Red or as clients' requirement
Material	Nodular Cast Iron or as clients' requirement
Packing	Plywood Carton Box or as clients' requirement
Type	Rx 57	Rx 67	Rx 77	Rx 87	Rx 97	Rx107
Weight	9kg	15.4kg	25.3kg	42.9kg	77kg	110kg
Type	R27	R37	R47	R57	R67	R77	R87
Weight	6.2kg	9.4kg	11kg	20kg	28kg	40kg	70kg
Type	R97	R107	R137	R147	R167
Weight	112kg	169kg	245kg	4400kg	7700kg
Mounting Methods	Foot Installation				Flange Installation

Your benefits:

Monoblock housing design,
Wide ratio, torque range and two or three stages can be in same housing,
Reduction can be increased up to six stages,
Standard IEC B5 or B14 motor connection flanges,
Electromagnetic brake option,
Long life bearings,
GG20 and GGG40 cast iron housings,
58-62 HRc hardened and grinded gears.

Specification:

The input powerpermissible torque and weight list of HR reducer:

Model	27	37	47	57	67	77
Structure form		HRHR..FHRF
Input power	0.12-3	0.12-3	0.12-5.5	0.12-7.5	0.12-7.5	0.18-11
Ratio	3.37-136	3.4-133.3	3.87-182.6	4.32-183.2	4.32-180.7	5.28-200.9
Permissible torque	110	170	255	380	510	700
weight	6.2	9.4	11	20	28	40
Model	87	97	107	137	147	167
Structure form		HRHR..FHRF
Input power	0.55-22	0.55-37	2.2-55	5.5-75	11-110	11-160
Ratio	5.33-245.7	4.52-280.6	4.98-255.4	5.22-223.2	4.93-162.1	10.43-224.6
Permissible torque	1320	2550	3670	6800	11050	15300
weight	70	112	169	245	440	770

Applications:

Gear Box's Usage Field		Gear Box's Usage
1	Metallurgy	1	Agitator
2	Mine	2	Blast fan
3	Machine	3	Hoister
4	Energy	4	Compressor
5	Transportation	5	Petroleum industry
6	Water Conserbancy	6	Air Compressor
7	Tomacco	7	Crusher
8	Pharmacy	8	Plastic extruder
9	Printing Package	9	Conveyer
10	Chemical industry	10	Textile indutry
