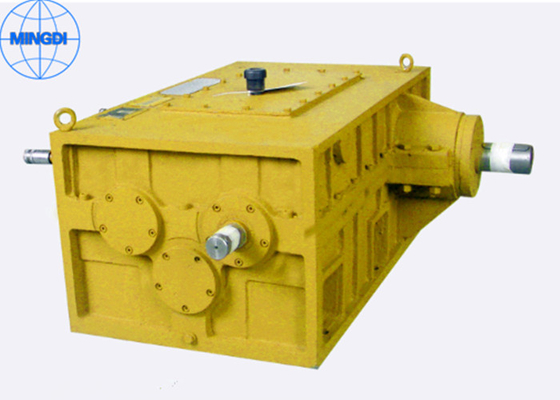

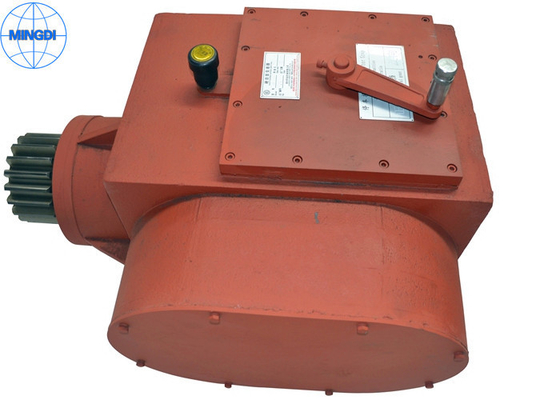

27 Stage Cylindrical Helical Gear Reducer With Large Stranded Wire Traction

 27 Stage Helical Cylindrical Gear Reducer with Large Stranded Wire Traction

Product Description

1. Characteristics

A. The gear and gear shaft employs high-strength low-carbon alloy steel, with manufacturing method of gear hobbing, the thermal treatment of carburising & quenching, as well as gear grinding, the hardness of gear flank can be HRC58-62, which is high precision and good contact.

B. High transmission efficiency, stable transmission, low noise.

C. Compact, light weight, durable lifetime, large carrying capacity.

D. Easy to dismantle, repair and install.

2. Main Technical Parameter

A. Speed ratio rangs from 8.65 to 62.40, 27 gears speed transmission.

B. Common ratio is 1.08.

C. Large torque will be realized under the condition of lager speed reduction.


D. Structure type: cylindrical & conical gear transmission, vertical shaft for input & output, shifting gears by      sliping.

E. Mounting Position: Foot installation

3. Brief Product Introduction

This product is an outer meshed involute helical tooth cylindrical gear speed reducer.
It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.
The suitable scope of speed reducer is as follows:

3. Company Profile & Workshop Corner Show

Changzhou Mingdi Machinery Co., Ltd. has started its own gearbox business since 2002, we attach importance to the research and development of new product. We offer big range of gearboxes, including cylindrical hard-tooth--face gearbox, P planetary gearbox, RV worm gearbox, ZLYJ plastic extruder gearbox,
customized gearbox & gear etc, with a strong advantage on cylindrical hard-tooth-face gearbox and
customized gearbox, we follow strict qualitycontrol system from the start to end.

Our mission is to design and offer the reliable solution to your gearbox need, and to promote sustainable and shared development with customers by providing honest, responsible, prompt services.

Application Scope

Applicable for the industries such as metallurgy, mine, chemical industry, construction materials, hoisting,
transportation, textile, paper marking, food, plastic, rubber, engineering machinery, and energy industry.

Our Competitive Advantages

1. We ensure we will make immediate response on your enquires and any queries in 12 hours

2. Ability to produce customerized products as request.

3. Complete processing & testing equipment.


4. Quality is our culture; quality is the soul of enterprise.

5. Competitive price: we can give you an edge over your competitor.

Picture Show for Part Drawing

.
