Color: | RAL5010(blue); RAL7031(grey); Or As Requirements | Power: | 1.1-4500KW |
---|---|---|---|
Input Speed: | 750-1500 Rpm | Output Speed: | 3-1200 Rpm |
Bckstop: | With Or Not | Output Flange: | With Or Not |
Lubrication: | Oil Pump | Cooling: | Copper Tube |
High Light: | helical bevel gearbox,bevel geared motor |

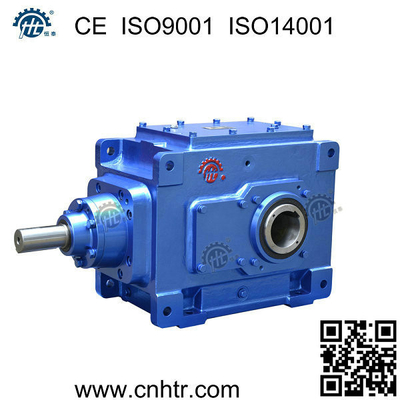

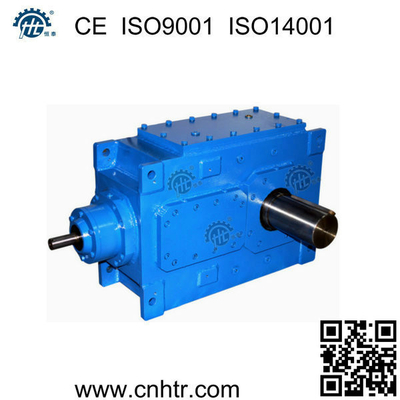

Flender type B series bevel helical gear units gearbox reducer:
1. Applications:
Palm oil extruder machine, mining ball mill machine, plastic or paper shredder, conveyor
and other machine.
2. Descriptions:
1). Certificates: CE, ISO9001, ISO14001, SGS
2). Universal and replaced products: Flender H.B series, SEW M series
3). Spares: cooling system, lubrication system.
4). Work performance: low voice, low oil temperature, steady running.
5). OEM
3.Technical data:
Power Range: 1.1kw-5100kw
Allowable torque: 450000Nm
Ratio: 5-450
Input Speed: 750rpm-1500rpm
Output Speed: 1.67rpm-1200rpm
Output shaft: Keyed hollow shaft or solid shaft.
Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation.
4. Models:
Transmission stage |
Ratio(i) |
Models |
B2 |
5 - 14 |
B2SH4, B2SH5, B2SH6, B2SH7, B2SH8, B2SH9, B2SH10, B2SH11, B2SH12, B2SH13, B2SH14, B2SH15, B2SH16, B2SH17, B2SH18, |
B3 |
12.5 – 90 |
B3SH4, B3SH5, B3SH6, B3SH7, B3SH8, B3SH9, B3SH10, B3SH11, B3SH12, B3SH13, B3SH14, B3SH15, B3SH16, B3SH17, B3SH18, B3SH19, B3SH20, B3SH21, B3SH22, B2SH23, B2SH24, B3SH25, B3SH26, |
B4 |
80 - 450 |
B4SH4, B4SH5, B4SH6, B4SH7, B4SH8, B4SH9, B4SH10, B4SH11, B4SH12, B4SH13, B4SH14, B4SH15, B4SH16, B4SH17, B4SH18, B4SH19, B4SH20, B4SH21, B4SH22, B4SH23, B4SH24, B4SH25, B4SH26, |
5. FAQS:
1). MOQ: 1 set
2). Packing method: Polywood
3). Delivery lead time: 25 days
4). Payment method: T/T, 30% in advance, 70% before delivery; L/C
5). Shipping port: Shanghai /Ningbo
6). Warranty: 15 months
6. Pictures:
