Right Angle Spiral Bevel Gear Reducer same with SEW K Series Gearmotors

Large Image : Right Angle Spiral Bevel Gear Reducer same with SEW K Series Gearmotors Get Best Price

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hengtai Reducer
Certification:	CE, ISO9001, ISO14001, SGS
Model Number:	K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD200.00-USD5000.00
Packaging Details:	8-12 pcs/pallet;
Delivery Time:	15-20 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	2000 PCS/per month

Contact Now

Detailed Product Description

Color:	RAL5010(blue); RAL7031(grey); Or As Requirements	Power:	0.12-200 KW, 4 Poles, 6 Poles, 8 Poles
Ratio:	4.09-192.7	Input Speed:	960-1800 Rpm
Output Speed:	7-440 Rpm	Output Torque:	170-42500 N.m
Output Shaft:	Hollow Or Solid Shaft
High Light:	helical bevel gearbox , bevel geared motor

China right Angle Spiral Bevel Gear Reducer gearbox same with SEW K Series Gearmotors:

Types:

HK: Solid shaft output

HKA: Hollow shaft output
HKF: Solid shaft output, with output flange.
HKAF: Hollow shaft output, with output flange.
HKAZ: Hollow shaft output, with small output flange.
HKAT: Hollow shaft output, with torque arm.

Models and technical data:

Model	Shaft diameter		Power	Ratio	Permit torque	Weight
Model	solid shaft	hollow shaft	Power	Ratio	Permit torque	Weight
HK37	25 mm	30 mm	0.12-3 KW	4.09 -106.6	170 N.m	15 kg
HK47	30 mm	35 mm	0.12-3 KW	4.66 - 131.7	340 N.m	22 kg
HK57	35 mm	40 mm	0.12-4 KW	4.68 -143.5	510 N.m	30 kg
HK67	40 mm	40 mm	0.18-5.5 KW	7.16 - 146.2	705 N.m	40 kg
HK77	50 mm	50 mm	0.37-11 KW	7.11 - 192.7	1320 N.m	63 kg
HK87	60 mm	60 mm	0.75-22 KW	7.42 - 195.2	2300 N.m	94 kg
HK97	70 mm	70 mm	1.1-30 KW	8.88 - 176.5	3670 N.m	145 kg
HK107	90 mm	90 mm	3-45 KW	8.72 - 147.2	6800 N.m	275 kg
HK127	110 mm	100 mm	7.5-90 KW	8.6 - 144.4	11050 N.m	420 kg
HK157	120 mm	120 mm	11-160 KW	12.7 - 151.1	15300 N.m	680 kg
HK167	160 mm	140 mm	15-200 KW	17.3 - 161	27200 N.m	1130 kg
HK187	190 mm	160 mm	15-200 KW	17.1 - 180.7	42500 N.m	1870 kg

Dimensions:

Business FAQS:
1). MOQ: 1 pcs
2). Delivery lead time: 18-25 days
3). Payment terms: FOB, CIF
4). Payment method: T/T, 30% in advance, 70% before delivery
5). Shipping port: Shanghai /Ningbo
6). Warranty: 15 months

Pictures:

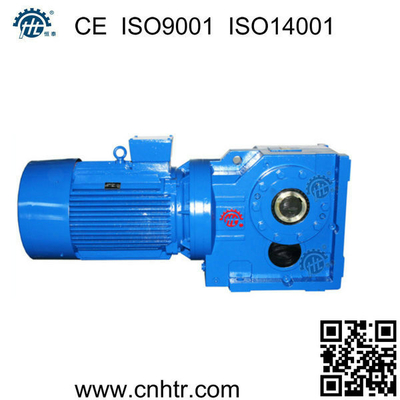

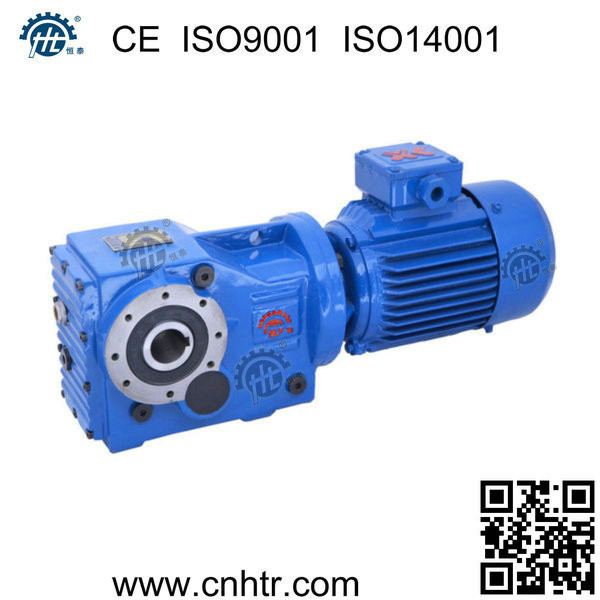

Right Angle Spiral Bevel Gear Reducer same with SEW K Series Gearmotors
