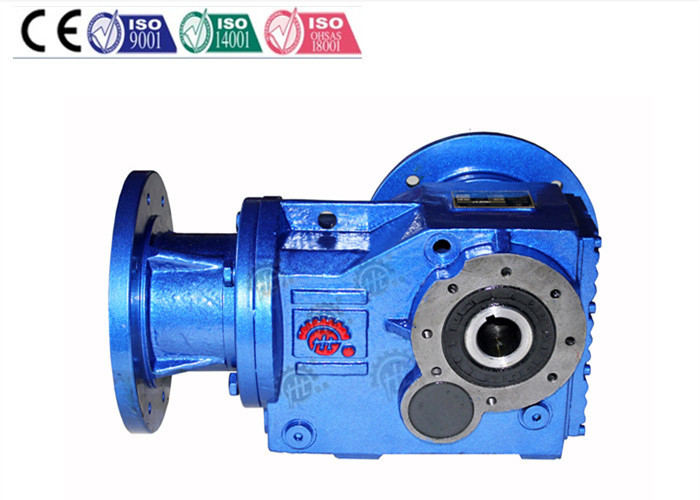

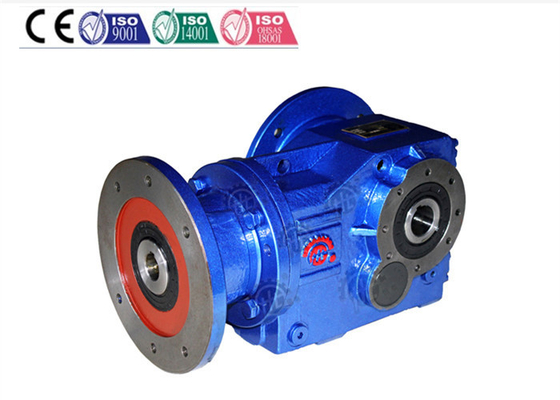

Flange Mounted Bevel Gear Reducer Gearbox With Ratio Waste Water Mixer

Flange Mounted Bevel Gear Reducer Gearbox With Ratio Waste Water Mixer





Quick Details



Rated Power: 0.12~ 200KW



Ratio: 4.09~ 195.2



Output Torque: 170~ 42500N.m



Gearing Arrangement: bevel gear





Input and output Speed: according related parameter list



Place of Origin: Zhejiang, China( Mainland)



Model Number: HK series



Brand Name: HENGTAI



Color: According to customer



Mounting position: foot- mounted and flange-mounted



Material for box: Cast Iron



Packing: Standard Fumigation Wooden





Descriptions:







The K series bevel gear reducer of right angle gearmotors is the first product to prove equally good in



regard to efficiency and versatility within a highly competitive context, both performance and price-wise.



We have test the K series of right angle gearmotors after 50,000 operating hours, the result showed that



the K series of right angle gearmotors do not reveal any noticeable wear.





Specification:



model	37	47	57	67	77	87
Structure	K,KA,KF,KAF,KAZ,KAT,KAB
Input Power KW	0.12~3	0.12~3	0.12~4	0.18~5.5	0.37~11	0.75~22
Transmission Ratio   i	4.09~106.6	4.66~131.7	4.68~143.5	7.1~646.2	7.11~192.7	7.42~195.2
Allowed Torque  Nm	170	340	510	705	1320	2300
Weight   kgs	12	22	30	37	63	94



model	97	107	127	157	167	187
Structure	K,KA,KF,KAF,KAZ,KAT,KAB
Input Power KW	1.1~30	3~45	7.5~90	11~160	15~200	15~200
Transmission Ratio   i	8.88~176.5	8.72~147.2	8.6~144.4	12.7~151.1	17.3~161	17.1~180.7
Allowed Torque  Nm	3670	6800	11050	15300	27200	42500
Weight   kgs	145	275	420	680	1130	1870



Note:



KA:  hollow shaft output



KF:  flange-mounted solid shaft output



KAF: flange-mounted hollow shaft output



KAZ: short-flange-mounted hollow shaft output



KAT: torque-arm-mounted hollow shaft output



KAB: foot-mounted hollow shaft output





Applications:



Material handling



Conveyor belts



Ball mills



Wire drawing machines



Food industry



Agitators



Printing presses



Belt filter presses



Shredders/compacters



Chip conveyors





The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution

















Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
