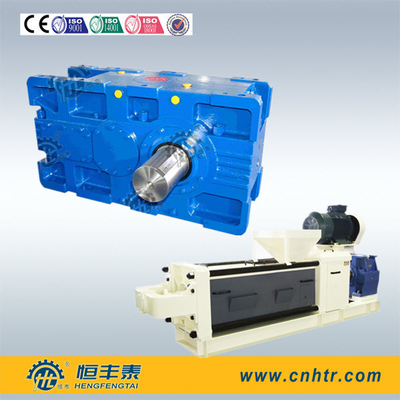

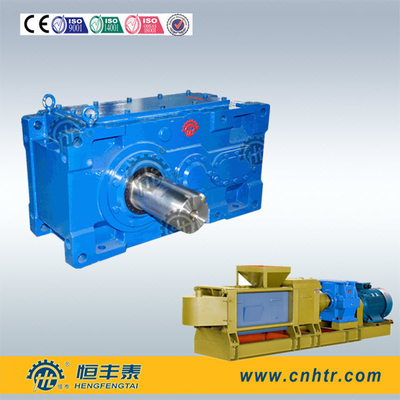

B11 Size 3 Stage Bevel Gear Reducer Parallel Shaft Solid Output 80mm Diameter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | helical bevel gearbox,bevel geared motor |
||
|---|---|---|---|
Mechanical Transmission Bevel Gear Reducer , Shaft Mounted Speed Reducer Gearbox
Quick Details
|
|
Helical |
|
Rated Power
|
1.1-5100 KW |
|
Ratio
|
1.25-450 |
|
Input Speed
|
750-1500 RPM |
|
Output Speed
|
1.67-1200 RPM |
|
Output Torque
|
450000 N.m |
|
Output shaft diameter
|
30-420MM |
|
Other Details:
Model Number: H1SH3-H4SH26
Output shaft: Keyed hollow shaft or solid shaft.
Accessories: cooling system, lubrication system
Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation
Mounting position: foot mounted
Packing: Strong wooden cases for exporting
Material for box: Cast iron
Place of Origin: Zhejiang, China (Mainland)
|
|
Descriptions:
B series bevel gear reducer are widely used in metallurgy, mining, steel, weighing, transportation,
petrochemical, chemical, construction, textile, pharmaceutical, food, transportation, environmental
protection, light industry, plastic, paper, parallel parking, lifting, Bridges, shipbuilding and other heavy
industry department the mechanical transmission fields.
Specification:
|
Series |
Transmission Ratio (i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,
H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
|
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,
H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
|
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,
H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26 |
Your benefits:
1, Large ratio
2, Great load-carrying capacity
3, Steady running
4, Low noise
5, High efficiency
6, Competitive price
7, Good quality
8, Good technology support
Applications:
Bucket elevator drives
Separator drives
Water screw drives
Conveyor drives
Dryer section drives
The cause for breakdown and settlement of reducer:
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Storage:
1:Pls do not store in outdoor.
2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly
touch the floor.
Warranty:
18months.
