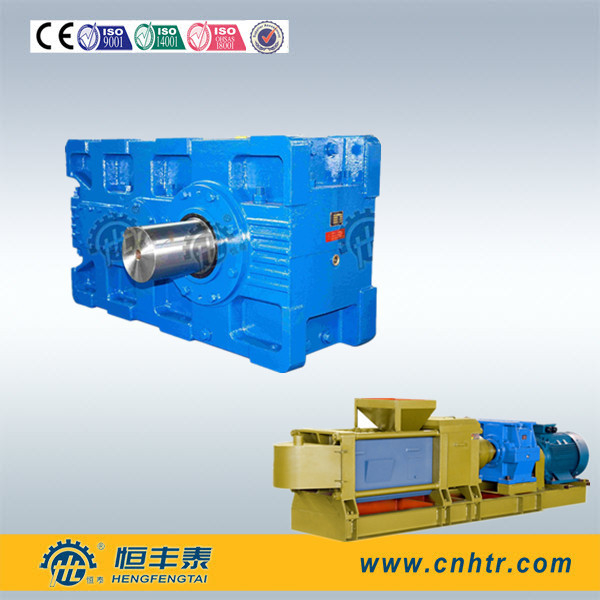

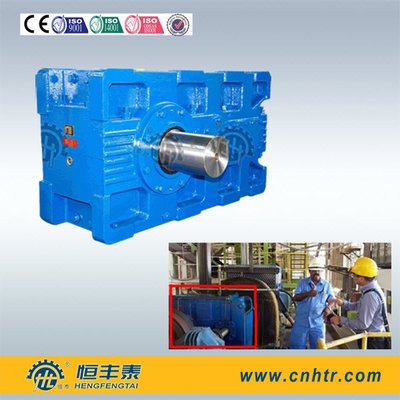

Power Transmission Gearbox Bevel Helical Gear Reducer With Cooling System



Power Transmission Gearbox Bevel Helical Gear Reducer With Cooling System





Quick Details





              Output shaft diameter: 30-420MM



              Rated Power: 1.1-5100KW



              Ratio: 1.25-450



                  Output Speed: 1.67-1200RPM



             Output Torque: 450000 N.m



Input Speed: 750-1500 rpm



              Gearing Arrangement: Helical



Input Speed: 750-1500 rpm



Place of Origin: Zhejiang, China (Mainland)



Model Number: H1SH3-H4SH26



Output shaft: Keyed hollow shaft or solid shaft.



Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation



Brand Name: HENGTAI



Color: According to customer



Mounting position: foot mounted



Material for box: cast iron



Packing: Strong wooden cases for exporting



Accessories: cooling system, lubrication system





Descriptions:



B series bevel gear reducer, which is similar to Flender H.B gearbox, big power and torque.



Horizontal and vertical installation, single to four stage, available in 26 sizes.



Our H.B series bevel gear reducer is modular design system and multi-purpose use of the housing



and internal components. H.B series bevel gear reducer improved noise level through grounded bevel



gear teeth and noise-absorbing housings.







Your benefits:



1, Large ratio

2, Great load-carrying capacity

3, Steady running

4, Low noise

5, High efficiency

6, Competitive price

7, Good quality

8, Good technology support

9, Mounting type: Foot mounted, flange mounted, torque armed mounted




Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives





The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution















Storage:

1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.



Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
