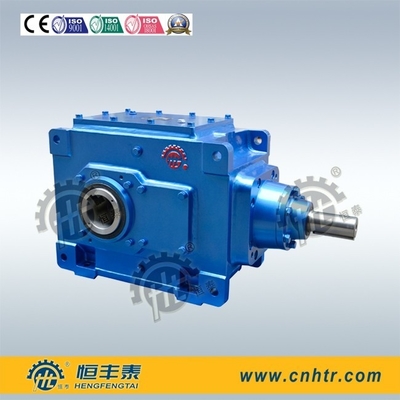

2 Stage Bevel Gear Reducer Ratio 12.5 to 1 Mining Machine Roller Crushing

Type

Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

B Series Bevel-helical Gear Unit

Double-stage

4--18

5--14

41-4,436

5,800-226,000

S. Solid Shaft                                   H. Hollow Shaft                                 D.Hollow Shaft for Shrink Disk

H:Horizontal   V:Vertical M:Horizontal Design Without Feet

Three-Stage

4--26

12.5-90

62-4,452

70,100-952,000

Four-Stage

5--26

80-400

2.6-1,652

10.6-945,000

Item No.

iN

T2N(KN.m)

P1N(KW)

B2-4

5-11.2

6.1-6.2

41-185

B2-5

5-11.2

9.4

62-285

B2-6

6.3-14

12

63-289

B2-7

5-11.2

19

126-576

B2-8

6.3-14

23.8

126-573

B2-9

5-11.2

29.9

198-908

B2-10

6.3-14

38

201-915

B2-11

5-11.2

46-54

358-1397

B2-12

6.3-14

58.8-66.3

351-1416

B2-13

5-11.2

68.6-81.1

538-2082

B2-14

6.3-14

85.2-101

538-2052

B2-15

5-11.2

122-132

877-3704

B2-16

5.6-12.5

135-148

880-3662

B2-17

5.6-11.2

195

1295-4697

B2-18

7.1-12.5

230

1368-4376

B3-4

12.5-71

5.5-6.7

7-67

B3-5

12.5-71

9.4-11.6

11-114

B3-6

16-90

12-15.5

11-114

B3-7

12.5-71

17-21.7

25-206

B3-8

16-90

21.5-25.2

21-204

B3-9

12.5-71

28-35.7

35-339

B3-10

16-90

35.6-43.8

36-338

B3-11

12.5-71

52.4-63.5

62-636

B3-12

16-90

66.3-77.2

62-630

B3-13

12.5-71

79.5-90.7

94-965

B3-14

16-90

99.4-113

93-945

B3-15

12.5-71

132-153

159-1603

B3-16

14-80

148-173

161-1603

B3-17

12.5-71

195-200

208-2368

B3-18

14-80

230-240

223-2490

B3-19

12.5-71

250-300

312-3036

B3-20

14-80

295-345

321-3195

B3-21

12.5-71

340-420

437-4130

B3-22

14-80

405-470

438-4386

B3-23

20-71

560

583-4250

B3-24

22.4-80

640

596-4372

B3-25

20-71

800

833-4372

B3-26

22.4-80

900

838-4372
