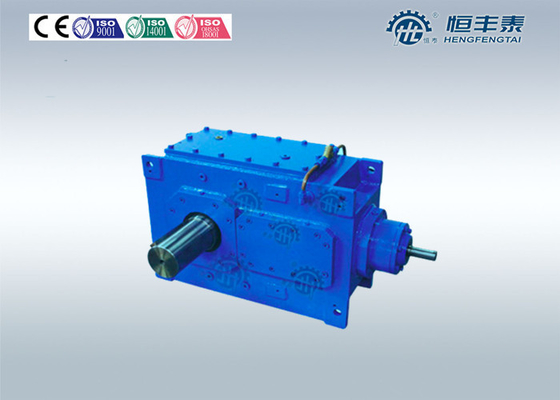

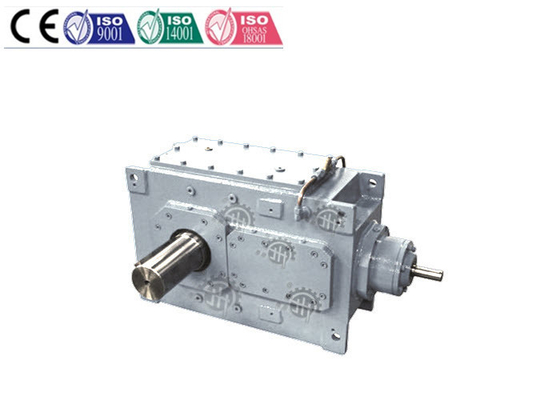

Helical Bevel Gear Reducer Torque 20000Nm For Mining Mill Model H9 Solid Shaft
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | helical bevel gearbox,planetary reduction gear |
||
|---|---|---|---|
Helical Bevel Gear Reducer Torque 20000Nm For Mining Mill Model H9 Solid Shaft
Quick Details
|
Gearing Arrangement
|
Helical |
|
Rated Power
|
1.1-5100 KW |
|
Ratio
|
1.25-450 |
|
Input Speed
|
750-1500 RPM |
|
Output Speed
|
1.67-1200 RPM |
|
Output Torque
|
450000 N.m |
|
Output shaft diameter
|
30-420MM |
|
Other Details:
Model Number: H1SH3-H4SH26
Output shaft: Keyed hollow shaft or solid shaft.
Accessories: cooling system, lubrication system
Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation
Mounting position: foot mounted
Packing: Strong wooden cases for exporting
Material for box: Cast iron
Place of Origin: Zhejiang, China (Mainland)
|
|
Descriptions:
B series bevel gear reducer, which is similar to Flender H.B gearbox, big power and torque.
Horizontal and vertical installation, single to four stage, available in 26 sizes.
Our H.B series bevel gear reducer is modular design system and multi-purpose use of the housing
and internal components. H.B series bevel gear reducer improved noise level through grounded bevel
gear teeth and noise-absorbing housings.
Specification:
|
Series |
Transmission Ratio (i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,
H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
|
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,
H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
|
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,
H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26 |
Your benefits:
1, Large ratio
2, Great load-carrying capacity
3, Steady running
4, Low noise
5, High efficiency
6, Competitive price
7, Good quality
8, Good technology support
9, Mounting type: Foot mounted, flange mounted, torque armed mounted
Applications:
Bucket elevator drives
Separator drives
Water screw drives
Conveyor drives
Dryer section drives
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
