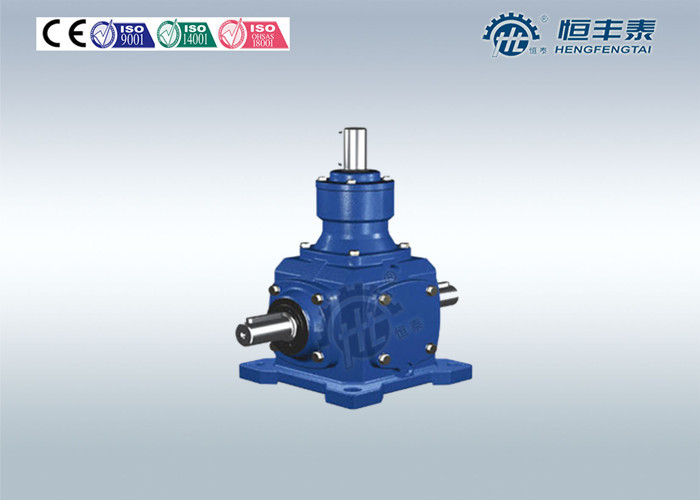

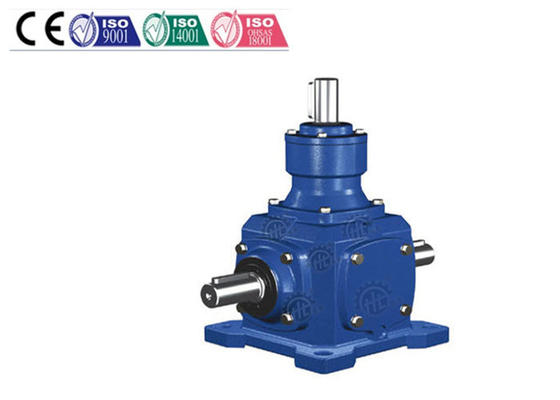

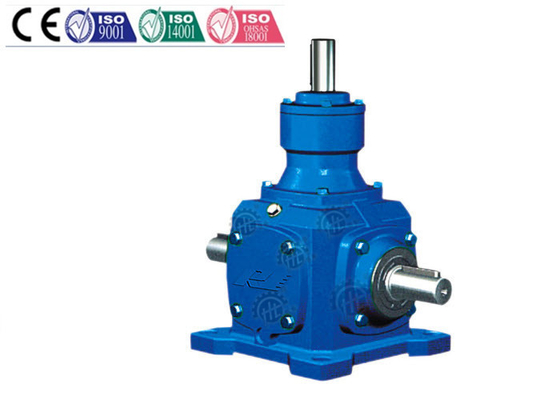

Electric Motor Reduction Gearbox Bevel Gear Speed Reducer For Lifting Equipment



Electric Motor Reduction Gearbox Bevel Gear Speed Reducer For Lifting Equipment





Quick Details



Mounting position: Foot mounted



Material for box: Cast Iron



Packing: Standard Fumigation Wooden



Gearing Arrangement: Bevel



Ratio: 1~3



Rated Power: 0.014~96KW



Output Speed: 3~1450 RPM



Place of Origin: Zhejiang, China (Mainland)



Model Number: HT series



Brand Name: HENGTAI





Descriptions:



Bevel gear reducer HT series has features of small volume, high loading capability, wide power range, low



noise, high efficiency, flexible in alternating directions.

HT series bevel gear reducer can rotate in either clockwise or anticlockwise and adopts a



structure design of multi-direction and integrated input and output shaft.





Specification:





Model	External dimensions
	L	H	A	B	W	T	f	L1	E x deepth
HT2	180	100	100	100	174	10	6	/	94x3
HT4	232	145	155	155	257.5	17	2	360	145x5
HT6	314	175	190	190	317	17	17	444	175x5
HT7	346	198	210	210	370	22	13	530	205x5
HT8	416	225	235	235	425.5	22	18	616	240x5
HT10	480	270	285	285	502.5	25	10	720	295x5
HT12	550	340	340	340	585	32	0	830	350x5







Applications:



Widely applied for Anode hoisting gear equipment for Aluminum equipment







The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution





Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.



Storage:



1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.



Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.





Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



Industry Zone, covering area 50000 square meters and 350 staff so far.



  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are



more than 40 professional technical engineers. We had 49 items patents including 7 items of



invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international



invention patent and 5 items which are accepted by National SIPO wait for approval.



  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-



process selling network. Relying on high quality products and perfect service, our products have



been successfully applied by more than 5000 customers.
