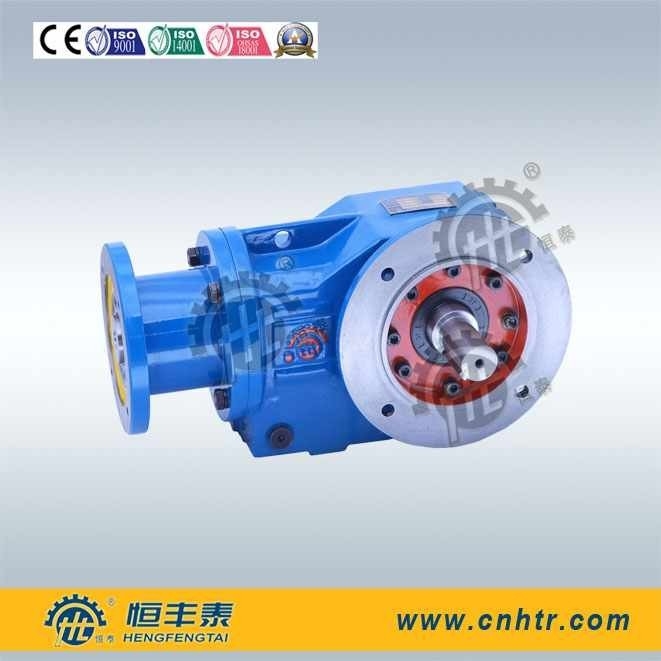

High Torque Bevel Gear Reducer

Large Image : High Torque Bevel Gear Reducer Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HK series

Payment & Shipping Terms:

Minimum Order Quantity:	FIVE PIECES
Price:	USD300-USD8000
Packaging Details:	1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time:	25-35 days
Payment Terms:	T/T or LC
Supply Ability:	TWO THOUSAND PCS PER MONTH

Contact Now

Detailed Product Description

Power:

25kw

Model:

Sew K 87

Mounting:

Electric Motor Mounted

Shaft:

Solid Shaft

High Light:

helical bevel gearbox

planetary reduction gear

4 Poles Electric Motor 1450 Rpm Bevel Gear Reducer Mobile Crusher Conveyor Belt

Quick Details

Torque Range
100 Nm... 14.000 Nm

Transmissible Mechanical Power (n₁= 1400 min^-1)
0,22 ... 150 kW

RAO Applied Force (n₁= 1400 min^-1)
20 kW .... 276 kW

Reduction Ratios Range
5,4 ... 1715

Descriptions:

Output Configuration
Foot or on the shaft mount.
Two female axis by size.
Female axis with cobbler.
Single or double axis.

Input Configuration
IEC-Electromotors
Axis

Types of engines that can be applied
IEC-engines with or without brake
one or two speed

Brake technical properties
Three phase brakes and DC brakes with lifters

Extra Motor Equipment
Thermostates, Thermistores
Autonomous feed Ventilators
Encoders

Specification:

model	37	47	57	67	77	87
Structure	K,KA,KF,KAF,KAZ,KAT,KAB
Input Power KW	0.12~3	0.12~3	0.12~4	0.18~5.5	0.37~11	0.75~22
Transmission Ratio i	4.09~106.6	4.66~131.7	4.68~143.5	7.1~646.2	7.11~192.7	7.42~195.2
Allowed Torque Nm	170	340	510	705	1320	2300
Weight kgs	12	22	30	37	63	94

model	97	107	127	157	167	187
Structure	K,KA,KF,KAF,KAZ,KAT,KAB
Input Power KW	1.1~30	3~45	7.5~90	11~160	15~200	15~200
Transmission Ratio i	8.88~176.5	8.72~147.2	8.6~144.4	12.7~151.1	17.3~161	17.1~180.7
Allowed Torque Nm	3670	6800	11050	15300	27200	42500
Weight kgs	145	275	420	680	1130	1870

Benifits:

easy to operate handwheel speed control as standard
optional electric remote speed control
wide selection of motors and brake-motors
analog and digital speed indicators available
rugged cast iron body
ground and polished driving disc for minimum wear
special cam mechanism only transmits the required torque, minimizing wear
asbestos-free non-hygroscopic friction disc material for long and safe working life

High Torque Bevel Gear Reducer
