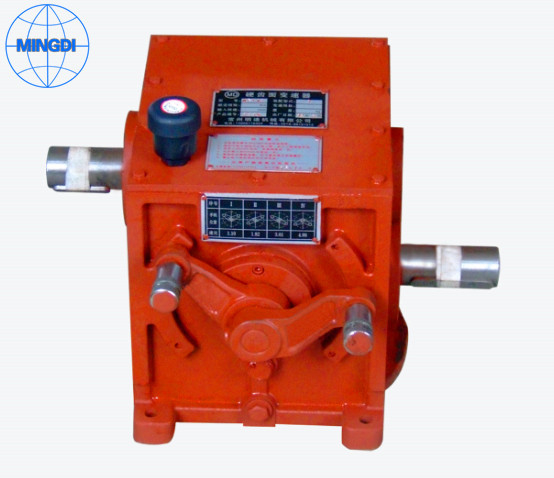

Low Noise Parallel Axes Bevel Gear Reducer / Gearbox 1200 Rpm Speed

BFY87 Parallel Axes Bevel Gearing Gear Reducer / Gearbox with Hard-Tooth-Surface​

Specifications

Type, specification of speed reducer and its expressed method

A. The type has ZDY single-stage cylindrical gear speed reducer, ZLY double-stage cylindrical gear speed reducer, ZSY three-stage cylindrical gear speed reducer

B. Specification: Single stage: 80, 100, 125, 160, 200, 250, 280, 315, 355, 400, 450, 500, 560;
Two tage: 112, 125, 140, 160, 180, 200, 224, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710;
Three-level: 160, 180, 200, 224, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710;

Product Description

1. Characteristics

A. The gear and gear shaft employs high-strength low-carbon alloy steel, with manufacturing method of gear hobbing, the thermal treatment of carburising & quenching, as well as gear grinding, the hardness of gear flank can be HRC58-62, which is high precision and good contact.

B. High transmission efficiency, stable transmission, low noise.

C. Compact, light weight, durable lifetime, large carrying capacity.

D. Easy to dismantle, repair and install.

2. Brief Product Introduction

This product is an outer meshed involute helical tooth cylindrical gear speed reducer.
It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.
The suitable scope of speed reducer is as follows:

A. The rotation of high speed shaft should not be more than 1500rpm;

B. The circumferential velocity of gear transmission should not be more than 20, /sec;

C. The temperature of work environment should be -40-45 egree celsius. If below 0 degree celsius, before start, the lubricating oil should be pre-heated to above 0 gree celsius. This speed reducer can be run at clockwise and counterclockwise direction.

3. Product Main Technical Parameter

A.  Parallel axes four gear transmission, speed reduction ratio is 1.10, 1.82, 3.01, 4.98.

B. Motor power is 7.5KW, input  speed revolution is 1500rpm, permitted output torque is 135-230Nm.

C. Structure type: cylidrical gear transmission, input & output parallel shaft, shifting gears by sliping.

D. Mounting Position: Foot  installation


4. Company Profile & Workshop Corner Show

Changzhou Mingdi Machinery Co., Ltd is a professional transmission machinery manufacturer of
 producing various gears, gear transmission and reducers, the hardened-tooth-surface cylindrical gearbox that is our featured product is widely used in four fields, among which
 are electrical machinery, plastic extrusion machinery, railway engineering machinery and metallurgical
machinery industry.

Application Scope

Applicable for the industries such as metallurgy, mine, chemical industry, construction materials, hoisting,
transportation, textile, paper marking, food, plastic, rubber, engineering machinery, and energy industry.

Our Competitive Advantages

1. We ensure we will make immediate response on your enquires and any queries in 12 hours

2. Ability to produce customerized products as request.

3. Complete processing & testing equipment.


4. Quality is our culture; quality is the soul of enterprise.

5. Competitive price: we can give you an edge over your competitor.

Pictures Show for Product Assembly Drawing
