2s2000 Locomotive Test Bench Gearbox With Synchronizing Function Between Wheels

Description

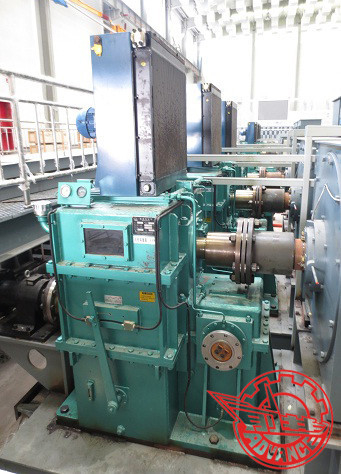

2S2000 Gearbox is developed for a test bench to testing locomotive performance. It is designed of two speeds arrangement (stop and mechanical shifting), main input/ output being vertically offset. Via a pair of bevel gears, realize synchronizing function between wheels. Use oil-air cooler. Apply bearings and oil pump of foreign well-known brand.

Main Data

1. Rated input power: 2000kW
2. Increasing ratio at 1^st speed: i=1:3.357
3. Input speed: n=0～519r/min
4. Max. input torque: 65 kNm
5. Increasing ratio at 2^nd speed: i=1:2.050
6. Input speed: n=414～852r/min
7. Max. input torque: 39 kNm
8. Max. torque transmitted by synchronizing shaft: Tmax=15 kN.m
9. Speed of synchronizing shaft: n≤852 r/min
10. Height of input end center: 690mm (pedestal: 645mm; bedplate: 45mm )
11. Height of output end center: 1190 mm (including bedplate: 45mm)
12. Height of synchronizing output end center: 690mm

Application

2S2000 Gearbox is suitable for test bench to test CRH locomotive, also for transmission application having similar function demands.
