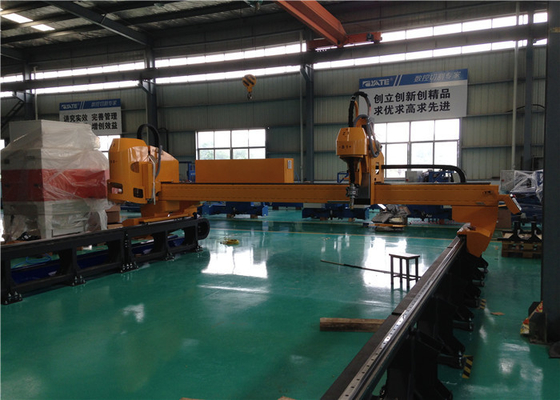

CNC Rotary Beveling Plasma Cutting Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | electric cutting machine,sheet metal cutting tools |
||
|---|---|---|---|

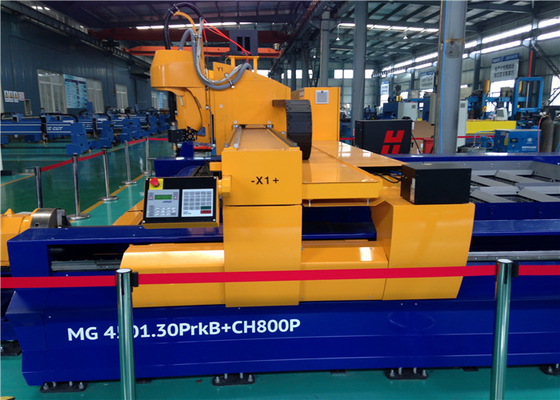

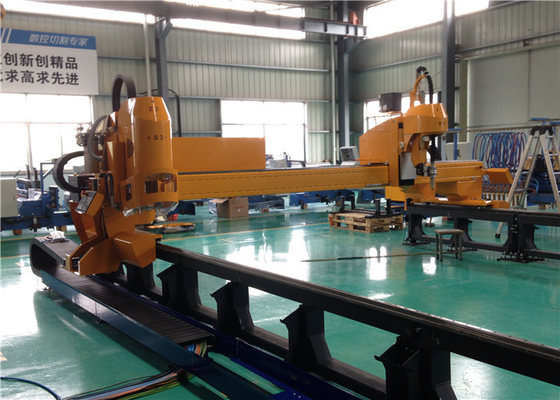

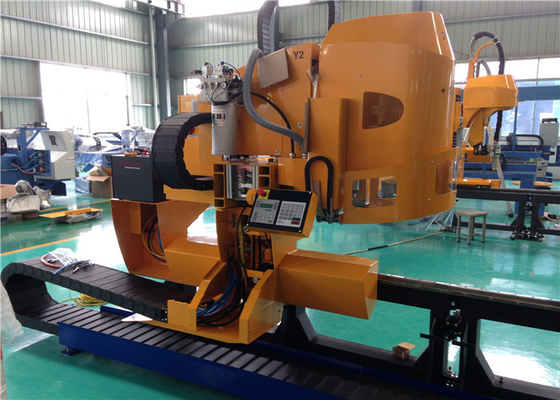

Automatic CNC Plasma Cutting Machine Double Square-Tube Beam For Orbital Plasma Beveling
1.Description

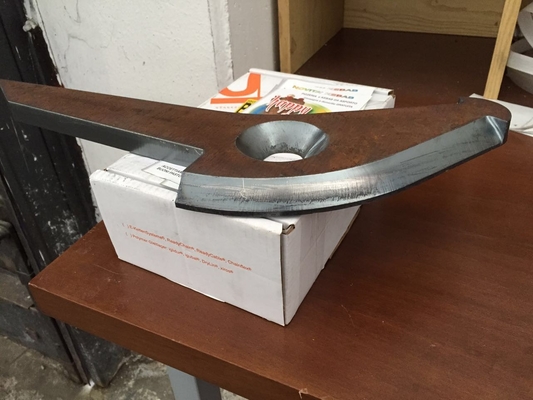

Rotary Beveling Machine used in orbital plasma beveling on steel sheet, both for mild steel and stainless steel. CNC controller and completed electrical driving system, nesting software are from Italy. Machine gantry and operation desk are designed by Italian HERMMAN and made in China.

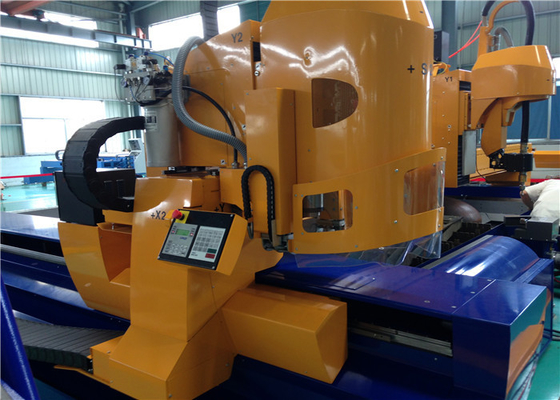

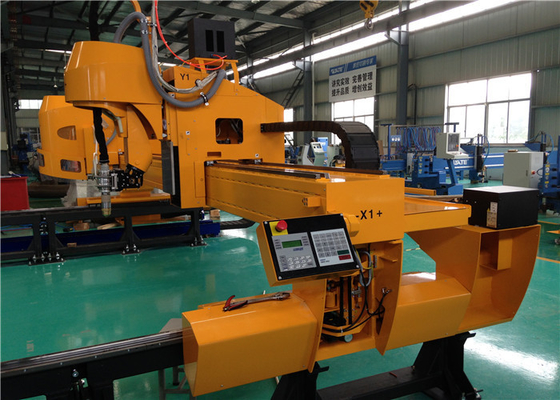

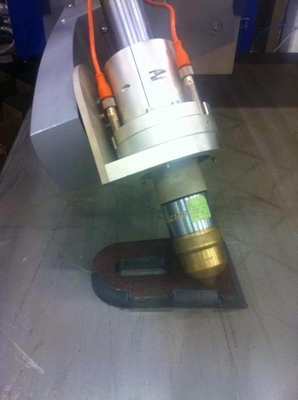

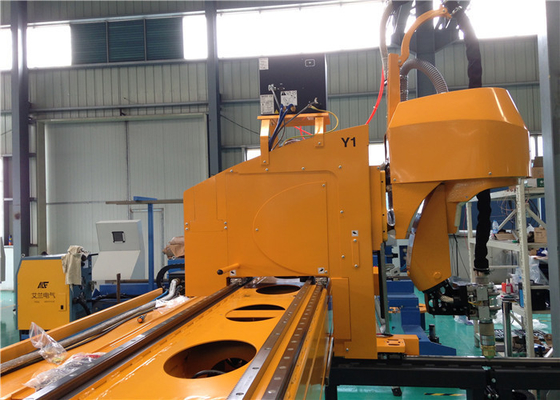

2. Z32 FLORENZ rotary beveling device with robot arms swing: A+B servo motions.
| NO. | Items name | Descriptions | Origin | Qty. |
| 1 | Robot arm swing AC servo motors |
a) 100W AC servo harmonic motor for robot arms rotary.
|
Japan | 2sets |
| 2 | Robot arm rotary mechanical device |
a) Double eccentric swing device & aluminum alloy arm structure. b) Powder coating metal cover. c) Self-reset torch holder with anti-collision device. |
Italy | 1set |
(1). AC servo motor & driver on X-Y-Z axial motions:
| NO. | Items name | Descriptions | Origin | Qty. |
| 1 | X-U axis longitudinal motion |
a) High torque 1700W/7.7 Nm AC servo motor with brake. b) Real-time bus communication interface. |
Italy | 2sets |
| 2 | Y-Z axis transversal & lifting motions |
|
Italy | 2sets |
(2) Z32 FLORENZ CNC controller:
| NO. | Items name | Descriptions | Origin | Qty. |
| 1 | PC computer |
|
Italy | 1set |
| 2 | CNC controller |
|
Italy | 1set |
(3) Z32 nesting software: 3D cutting demo & parameters & setting guidance:
| NO. | Items name | Descriptions | Origin | Qty. |
| 1 | Beveling nesting software |
|
Italy | 1set |
| 2 | Beveling database |
b) Beveling angle compensation database. |
Italy | 1set |
3.B PARTS

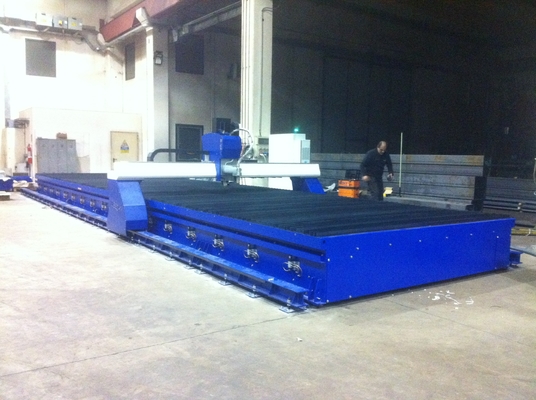

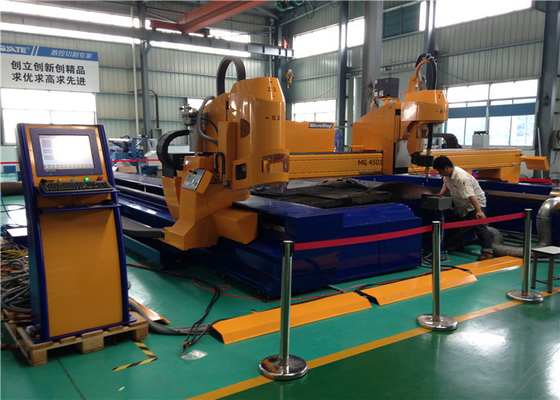

CNC cutting machine specification & configurations
(1) . Machine configuration:

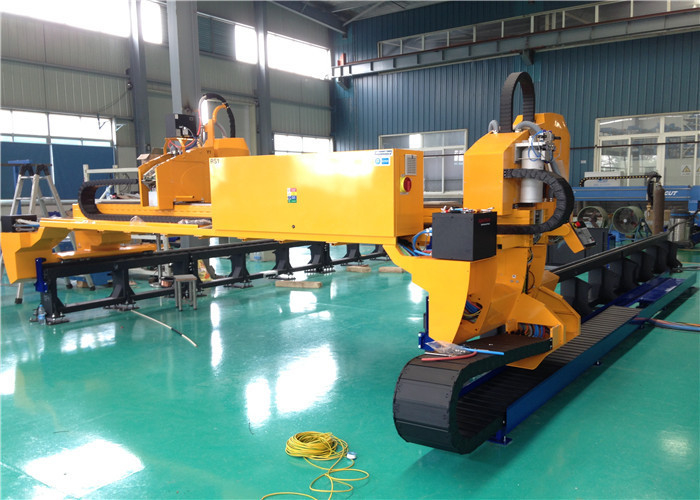

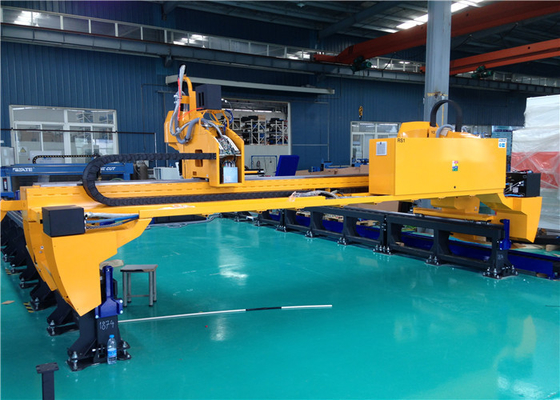

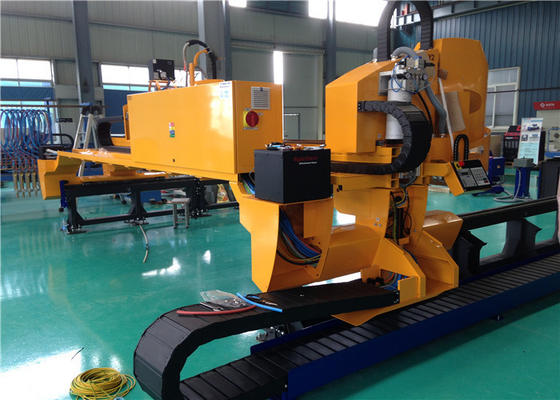

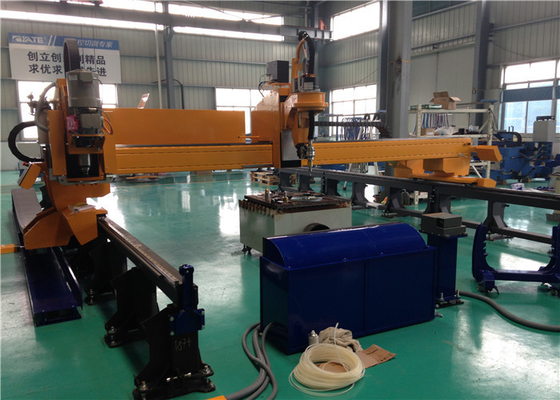

| Machine gantry |
Double square-tube beam structure is designed in Italy and made in China. |

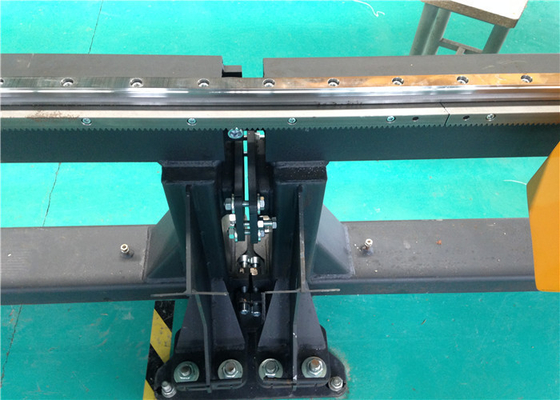

| Steel rail & rack | Chinese 43KG/M |
| Steel rail span | 4000mm |
| Steel rail length | 18m*2 sides |
| Machine on X-U axis longitudinal motions |
Italian double-sides AC servo drive Italian 1700W*2sets |
| Machine on Y axis transversal motions |
Italian AC servo drive Italian 750W*1set |
| Machine on Z axis lifting motions |
Italian AC servo drive Italian 750W*1set |
| X-U-Y-Z axial gear reducer |
German NEUGART 2+1+1sets |

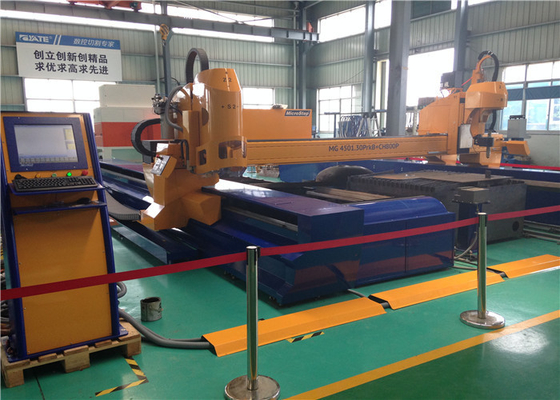

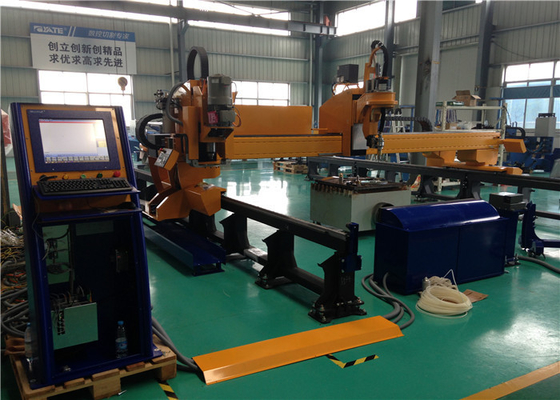

| Operation desk + Touch screen panel |
Independent design & touch screen Italian Hermann |
| 3D rotary beveling CNC controller |
Italian FLORENZ Z32 integrated CNC controller 1set |
| Electrical control & servo system |
German SIEMENS & Italian D.ELECTRON 1set |
| Fine plasma power source & torch |
US HPR260xd with auto gas control 1set |

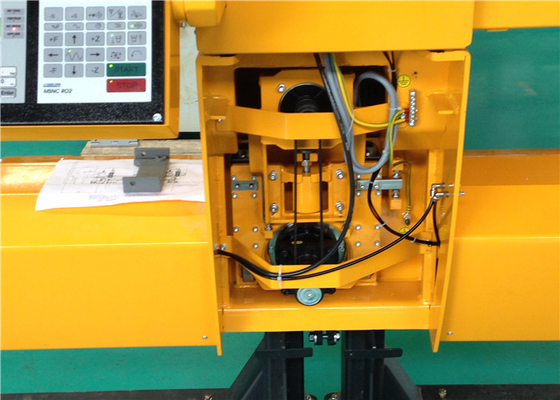

| CNC plasma torch mover |
Aluminum plate + linear bearing slider Chinese YDT-Z/F 1set |
| CNC plasma torch lifter |
Screw rod + AC servo motor Italian D.ELECTRON 1set |
| Robot arm swing device: A+B axial motions |
Japanese AC servo harmonic motor 100W* 2sets |
| Robot arm swing mechanical device | Italian HERMANN 1set |
| Transversal motion mechanical system |
Precision gear/rack & linear guiding rail with bearing slider TAIWAN HIWIN 1set |

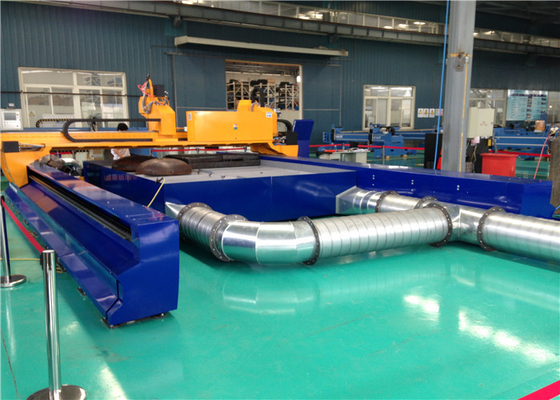

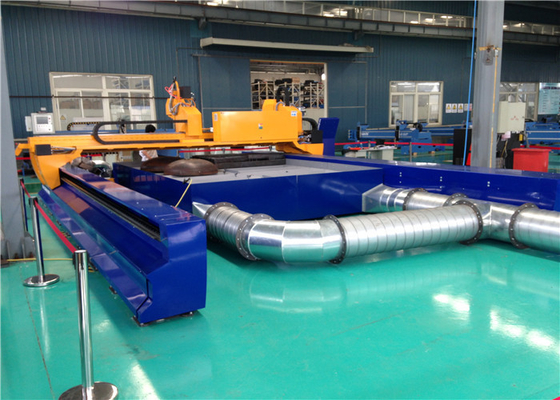

| The cutting table is made by customer and the drawing is from Chinese YATAI, it should be complied with fume extraction system. | |
| The machine foundation is composed of H beam steel and prepared by customer, the drawing is from YATAI factory. | |
(2) Machine functions:
| Nesting software for beveling | Italian LIBELLULA Bevel-Cut 1set |
| Beveling cutting database | Italy 1set |
| AC servo arc voltage torch height controller | Italy 1set |
| Anti-collision device of plasma torch | China 1set |
| X-U-Y axis motion electrical & mechanical limited device: | 4+4 units |
| Power stability device | Chinese 5000VA 1set |
| Dust cleaner for steel rail face | China 1set |
(3) . Machine technical specifications:
| Effective cutting width | ≤ 3,100mm |
| Effective cutting length | ≤ 16,000mm |
| Machine idle speed | 0-50m/min |
| Plasma cutting material | Mild steel & stainless steel |
| Plasma piercing thickness | Refer to plasma power model |
| Plasma edge cutting thickness | Refer to plasma power model |
| Plasma torch up/down distance | ≤280mm |
| Plasma torch height control | Arc voltage torch control |
| Max beveling angle | ±45 degree |
| Max swing speed | 3000mm/min |
| Min. angle error | ±1.5 degree |
| Min. truncated edge error | ±1.0mm |
| Machine precision standard |
Accord with Chinese JB/T5102-1999 standard |
| Plasma torch vertical precision | ±0.3mm |
| Plasma torch tracking precision | ±0.5mm |
|
Side length: 1000*1000 Beeline speed: 500-800mm/min |
 |
| Point of intersection error | ±0.5mm |
| Beeline error | ±0.3mm |
| Circular degree error | ±0.5mm |
| Diagonal error | ±0.5mm |
| Speed setting error | ±0.5% |
| Cutting roughness | Ra≤12.5μm |
| Main steel rail side beeline error | 2.0mm/10000mm |
| Assistant rail side beeline error | 2.0mm/10000mm |
| Main rail face horizontal precision | ±0.1mm/1000mm |
| Horizontal error between main & assistant rail | ≤2.0mm |
(4). Machine working condition:
| Working temperature | -10℃～+40℃ |
| Relative humidity | ≤95% without condensation |
| Environment | Ventilation and no shock |
| Power supply of CNC system | AC 1-Phase/220V±10V |
| Power supply of plasma power | AC 3-Phase/380V±10V |
| Power frequency | 50/60Hz |
| Machine input capacity | ≤5Kw |
| Plasma power capacity | ≤80Kw |
| Plasma gas sorts | Compress air/Oxygen/Nitrogen so on |
| Plasma gas source requirements | Frozen & dry air with 3-level filter without oil & water |
| Plasma gas flow | Pressure:1Mpa, Flow:0.8m3/min |
4.Machine main parts list:
| Items | Brand/Origin | Qty. | Picture |
| CNC controller for 3D beveling |
Italian Z32 FLORENZ |
1 | |
| Touch screen and operation desk | Italian design & Chinese made | 1 | |
| Fine plasma power & torch | US HYPERTHERM HPR260xd | 1set | |
| Robot arm 2 axis swing mechanical device | Italian Hermann | 1set | |
| Nesting software for bevel |
Italian LIBELLULA Bevel-cut version |
1 | |
| Transversal servo driver | Italian D.ELECTRON | 1sets | |
| Longitudinal servo driver | 2sets | ||
| Torch lifting servo driver | 1sets | ||
| Transversal servo motor | Italian D.ELECTRON | 1*750W | |
| Longitudinal servo motor | 2*1700W | ||
| Torch lifting servo motor | 1*750W | ||
| Rotary harmonic servo motor of robot arm | Japanese brand | 2*100W | |
| Transversal gear reducer | German NEUGART | 1 | |
| Longitudinal gear reducer | 2 | ||
| Torch lifting gear reducer | 1 | ||
| Transversal mechanical motion |
Linear rail with slider TAIWAN HIWIN |
1 | |
| Longitudinal rail & rack | Chinese 43KG | 18M |
|
5.C PARTS
- Other options for customers

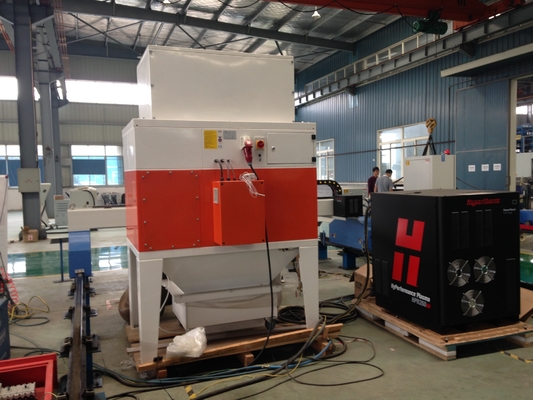

- Fume & dust extraction system is working with cutting machine, it is prepared by customer at factory in Chile.
- Air compressor/gas storage/frozen dryer are prepared by customer at factory in Chile.
