Horizontal Slide Plate Pipe Bevelling Machine , Edge Milling Machine

• workpieces. Equipment alignment using slip rings hung, safe and beautiful, easy to move.

2, Equipment components

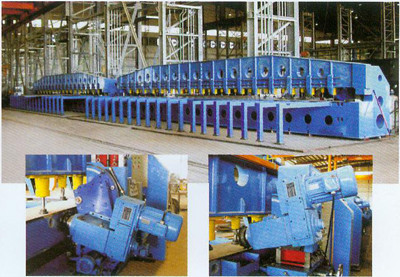

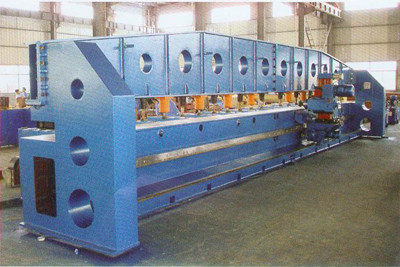

bed adopt steel frame structure, advanced design,solid structure, good rigidity, small deformation, smooth. Effective stroke is more than 9M of bed, designed as two parts, easy processing and transportation.

Guide rail using high-quality 45 #  steel, Planed at first ,and then forming with the bed body to connect together and have another the overall processing , such a guide rail good wear resistance, long-term after use will not be deformed.

The column fixed on the horizontal slide plate. The horizontal slide plate may run left and right on the bed rails . The vertical slide plate fixed on the column ,it may run up and down .so the  milling head may freedom move.

    Spindle box fixed lifting plate beside the column it can move up and down . AC motor driven spindle. Spindle box can be tilted 0-45 ° with the horizontal. Cutter mounted on the spindle end, according to the different milling conditions change different tools.

      Feed box installed under the apron, press the feed motor to drive the large apron milling speeds from 100-1000mm/min, you may choose the best moving speed. Milling Head Power: 7.5KW, frequency conversion stepless speed range, speed stability, high accuracy.

3, Technical parameters:

• Effective plate length: 6000 / 9000 / 12000mm
• Plate thickness:6-50mm
• Max depth of a bevel milling ( hypotenuse): 12mm.
• Milling Angle :0-45 °
• The number of  the cylinders:   8/11/15
• Milling head :1  set
• Milling power head Model: TX-32A type (Made in Taiwang special).
• Milling power head motor power: 5.5KW, speed 1440rpm;
• Spindle speed :110-1100rpm.
• Spindle telescopic movement: 60mm.
• Milling Work Speeds :100-1000mm / min.
• Travel Speed:2000mm/min
• Working motor power: 3 KW.
• Fast forward and rewind speed: 2000mm/min
• Hydraulic system motor power: 5.5 KW.
