Strong Frame Small Wheel Loader Operating Weight 10T With FOPS Cabin
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Operating Weight: | 10000KG | Bucket Capacity: | 1.8 M³ |
|---|---|---|---|
| Dimension: | 6905*2470*3028 Mm | Fuek Box: | 150L |
| High Light: | Compact Wheel Loaders,Mini Wheel Loader |
||
Strong Frame Small Wheel Loader Operating Weight 10T With FOPS Cabin
Advantage.
1. Strong frame, overloading capacity
2. High efficiency and low comsuption of fuel
3. Discharging heigth over 2700mm, satisfy your request.
4. This full hydraulic crawler excavator is all designed and produced by our company by adopting advanced technologies from Korea and Japan. With the features of low price, compact design, easy to operating, low noise, big power, it will be an ideal machine for you
5. Main parts such as main pump, swing motor, walking motor and multitandem valve are adopted international famous brand such as Doosan, Parker and so on, the quality and stable performance is highly increased.
6. Main structure parts are all produced by us, with advanced instruments; all the producing processes are under strictly controlled to make sure the quality of each part.
7. Swing speed is fast which increase the working efficiency
8. Wide space cab with air conditioner offers a comfortable working environment. Full digital monitor dynamically show the working condition of the machine.
Specifications
|
Basic Data |
|
|
Bucket Capacity |
1.8m³ |
|
Rated Load |
3200kg |
|
Travelling Speed |
|
|
Forward 1st |
0-12km/h |
|
Forward 2nd |
0-40km/h |
|
Reverse 1st: |
0-17km/h |
|
Max.Traction |
97kN |
|
Max.Break Out Force |
100kN |
|
Min.Turn Radius (outside tyre) |
5376mm |
|
Max. Dumping Height |
3060mm |
|
Max. Reach |
1008mm |
|
Total Hydraulic Cycle Time |
≤10.3s |
|
Full Bucket Lifting Time |
≤5.6s |
|
Wheel Base |
2750mm |
|
Dimensions (LxWxH) |
6970x2450x3286mm |
|
Min. Clearance Over Ground |
360mm |
|
Operating Weight |
10500kg |
|
Diesel Engine |
|
|
Model |
Cummins 6BT5.9 or Yuchai YC6B125 |
|
Type |
Direct injection, water cooling, 4 strokes |
|
Rated Output |
97/92kW |
|
Rated Speed |
2200rpm |
|
Max. Torque |
560N.m/460N.m |
|
Transmission |
|
|
Hydraulic Torque Converter Model |
Single stage, two phase, four components |
|
Transmission Type |
2 forward and 1 reverse gears/hydraulic power shift, planet type |
|
Max. Permissible Temp. |
120°C |
|
Transaxle & Tyre |
|
|
Drive System |
4 wheel drive |
|
Type of main Reducer |
Spiral bevel gear, single stage |
|
Type of hub Reducer |
Planet gear |
|
Tyre Size |
17.5-25 |
|
Pressure Of Tyre |
0.28-0.32MPa |
|
Working Hydraulic System |
|
|
Working Pump Type |
Gear Pump |
|
System Working Pressure |
16MPa |
|
Lifting Cylinder Bore x Stroke |
125x816mm |
|
Tilting Cylinder Bore x Stroke |
140x553 mm |
|
Steering System |
|
|
Type |
full hydraulic power steering system |
|
Steering Pump Type |
Gear Pump |
|
Max. Working Pressure |
10MPa |
|
Steering Cylinder Bore x Stroke |
80x380mm |
|
Max. Steering Angle |
±36º |
|
Brake System |
|
|
Type |
Caliper disc brake, air over oil activate, 4 wheel brake |
|
Drive Brake System Pressure |
0.71-0.784MPa |
|
Parking Brake |
Hand brake, drum type |
|
Oil Injection Capacity |
|
|
Fuel Tank |
170L |
|
Engine Oil |
15L |
|
Transmission |
30L |
|
Hydraulic Oil Tank |
170L |
|
Transaxle |
30L |

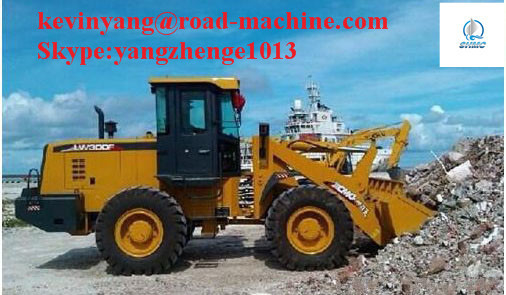

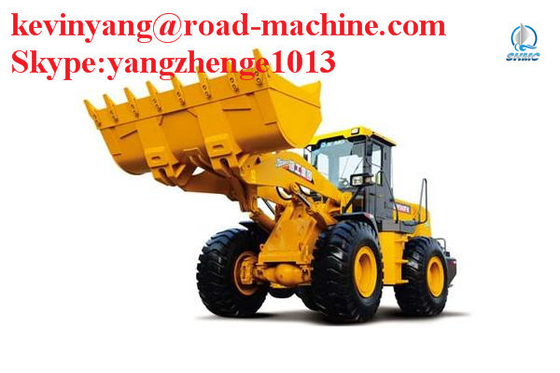

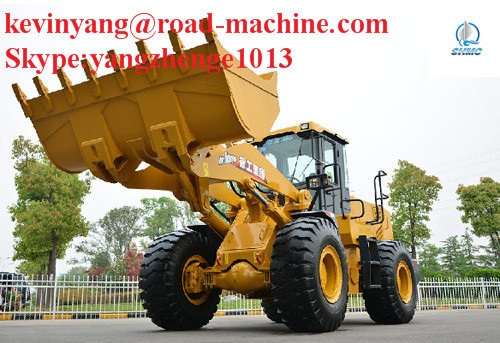

Photos
