Aluminum Spiral Bevel Gear Reducer

Product Description

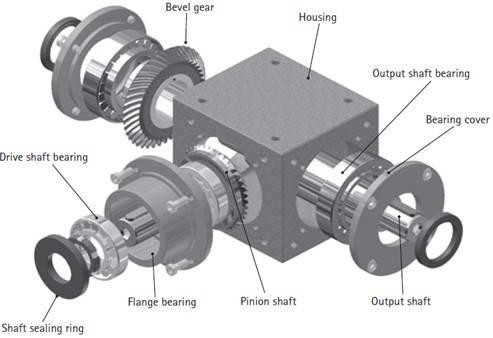

Spiral Bevel Gearbox Detailed Informations: Models: RNV-065, RNV-090, RNV-120, RNV-160, RNV-200, RNV-260 Configurations: spiral bevel gears,bearings,housing,oil sealing,input and output shafts etc. Features: 1. Function: right angles change transmission directions 2. 2 ways,3ways,4 ways gearboxes are available 3. Compared to worm gear reducer, spiral bevel gear box is of flexiable operational capacity, high transmission torque and save more money. 4. Speed Ratio: 1:1,2:1,3:1,4:1,5:1. Special ratio,following clients' orders 5. Transmission Efficiency: 95% Materials: 1.Spiral bevel gears: alloy steel,case hardened,be of high rigidity and wear risistance 2.Bearings: taper roller bearings, bear larger torque 3.Gearbox: cast iron, six faces of gearbox are machined by milling machine,gloss surfaces 4.Input&Output shaft: S45C,heat treated Use Details: Gear Oil: HD320~680 Max Revolutions: 1450 rpm Ambient Temperature: -20ºC~+80ºC, special temperature,consult our engineers Noise Level: less than 80 dB Temperature Level: less than 50ºC Test Equipments: noise meter and infrared thermometer

Product Feature
* Spiral Bevel Gear Type * Ratios 1:1,2:1,3:1,4:1,5:1 * 10~1450 RPM * 11.6~1833.5 N.m

Product Specification/Models
RNV-065, RNV-090, RNV-120, RNV-160, RNV-200, RNV-260
