15KW - 17KW Powerful Water-cooled Silent Diesel Generator Set AC Three Phase for Small Industry Use
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Power: | 15KW/50HZ-17KW/60HZ | Noise Level(dB@7m): | 62 |
|---|---|---|---|
| Continuous Running(h): | 10 | Number Of Phase: | Three Phase, Four Wire |
| Genset Overall Weight(kg): | ≤680 | Engine Cooling Type: | Enclosed Water-cooled |
| High Light: | super silent diesel generator,portable silent generator |
||

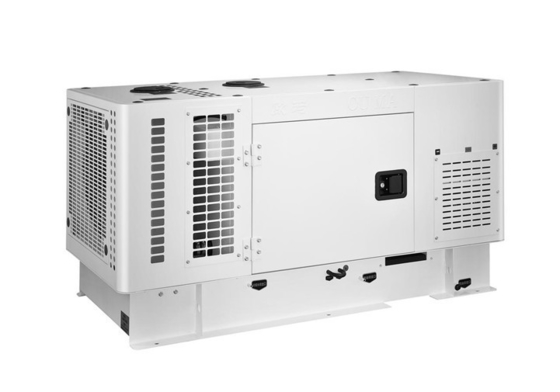

Powerful Water-cooled Silent Diesel Generator Set AC Three Phase for Small Industry Use 15KW - 17KW
Quick Detail:
| product name: |
Silent Diesel Generator Set
|
Brand Name: |
OUMA
|
Model Number: |
OM15CYD3
|
| Output Type: |
AC Three Phase
|
Speed: |
1500/1800rpm
|
Frequency: |
50/60Hz
|
| Rated Power: |
15KW-17KW
|
Rated Voltage: |
400/230V 416/240V
|
Engine: |
Four cylinder, direct injection,
four stroke
|
Description:
1. Adopt the first top Chinese brand engines, alternators and control panels. Second biggest customer for FAWDE.
FAWDE is the NO. 1 engine manufacturer whos is suppling to China First Auto Works for vehicel use such as Audi. FAWDE has engine agent and service team in many countries, service and spare parts can be guarantteed.
2. Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22. Quality smooth output and safety is 100% ensured.
3. Unique noise reduction technology, noise of silent gensets is only 62dBa at 7 meters.This is a remarkable noise level.
4. Complete display of main parameters and protections on the control panel. Help you to monitor the genset running and self-protect the genset.

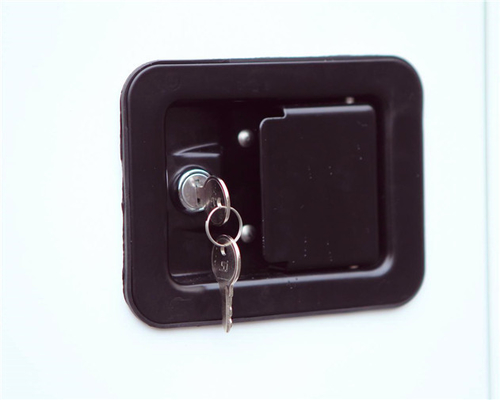

5. Two big service doors with keys. Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
6. Big base fuel tank to support continuous running minimum 8 hours at full load.
7. 60℃ radiator, no overheat would happen in high temperature weather condition. For low temperature area, we add water preheater and oil heater to ensure easy start and good performance.
8. Central AC type cooling fan: 20,000 hours service life, much more than 500 hours as most genset factories use.
9. 2.0mm cold-rolled steel genset canopy: rigid and corrosion resistant. Advanced painting and finishing, no painting colour fade within 5 years.
10. Battery switch to switch off battery when genset is not in use, so no power loss of battery.
11. Fuel non-return valve to prevent fuel returning back to fuel tank and inlet of air to the fuel pipe, so easy start of genset after long time of non-use.
Genset
Specifications:
| Generator set | Model | OM15CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 27 29.5 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60 | |
| Overall dimension (L×W×H)(mm) |
≤1670×750×853 | |
| Overall weight(kg) | ≤680 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 10 |
Engine & Generator
Specifications:
| Diesel engine | Model | OM490 |
| Brand | OUMA | |
| Power output(KW) | 21 25 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.2 | |
| Bore×Stroke(mm) | 90×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 |
| Alternator | Model | OM184-3 |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 |
Control Panel
Specifications:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Big openable service doors with keys to lock.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Spare parts and service for whole service life.
- Competitive price and fast delivery within 15 working days
- 15 months or 1200 running hours warranty, whichever comes first
- ISO and CE certificated
- All spare parts are available
