18KW - 20KW Silent Diesel Generator Set Single Phase Brushless with Four Cylinder 25KW-30KW Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Power: | 18KW/50HZ - 20KW/60HZ | Noise Level(dB@7m): | 62 |
|---|---|---|---|
| Continuous Running(h): | 9 | Fuel Tank Capacity(L): | 70 |
| High Light: | super silent diesel generator,portable silent generator |
||
Four Cylinder Diesel Engine Silent Diesel Generator Set Single Phase 18KW - 20KW
Quick Detail:
| product name: |
Silent Diesel Generator Set
|
Brand Name: |
OUMA
|
Model Number: |
OM18CYD
|
| Output Type: |
AC Single Phase
|
Speed: |
1500/1800rpm
|
Frequency: |
50/60Hz
|
| Rated Power: |
18KW - 20KW
|
Rated Voltage: |
115/230V 120/240V
|
Engine: |
Four cylinder,
direct injection, four stroke
|
Description:
60℃ radiator, no overheat would happen in high temperature weather condition. For low temperature area, we add water preheater and oil heater to ensure easy start and good performance.
Central AC type cooling fan: 20,000 hours service life, much more than 500 hours as most genset factories use.
62 dbA noise level, quiet enough to leave the users and neighbourhood a good living environment.
Four-cavity design of genset housing. i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, safety is ensured while performance of the genset is maximized.

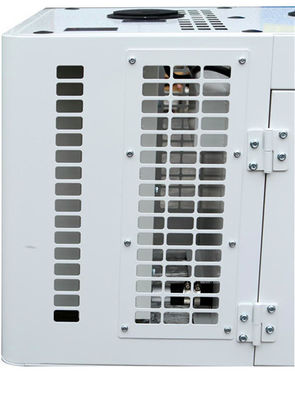

2.0mm cold-rolled steel genset canopy: rigid and corrosion resistant. Advanced painting and finishing, no painting colour fade within 5 years
Battery switch to switch off battery when genset is not in use, so no power loss of battery.
Fuel non-return valve to prevent fuel returning back to fuel tank and inlet of air to the fuel pipe, so easy start of genset after long time of non-use.
The engine which is the heart of a generator we are using FAWDE,who is the first brand high quality engine in China, their engines are supplied to automobile companies.
Many customers used to buy from other factories. They tried our units and was very very satisfied. A customer came to China with purpose to find good gensets with very low noise,he came to our factory and tested our generators, he was very happy and said that is the type he was looking for! Now they have regular full container orders with us!
Specifications:
| Generator set | Model | OM18CYD |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 156/78.2 166/83 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60 | |
| Overall dimension (L×W×H)(mm) |
≤1750×750×853 | |
| Overall weight(kg) | ≤780 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 9 | |

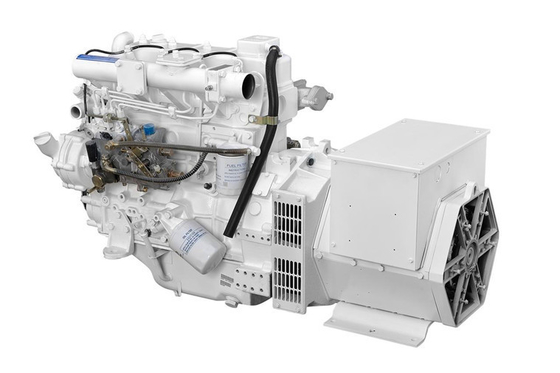

| Diesel engine | Model | OM495 |
| Brand | OUMA | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 95×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM183C |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase, three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Flexible cooperation modes.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- High customer recognition.
- Competitive price and fast delivery within 20 working days
- 15 months or 1200 running hours warranty, whichever comes first.
- Smallest size and most compact structure, maximum loading and installation space.
- ISO and CE certificated.
- All spare parts available.
