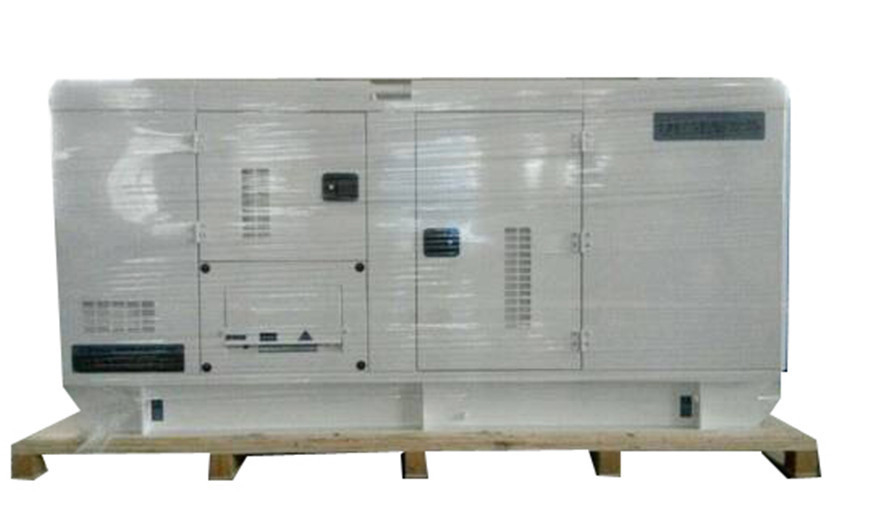

160KW-192KW 65dbA Low Noise Stationary Diesel Generators Industrial or Commercial
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | super silent diesel generator,portable silent generator |
||
|---|---|---|---|
Low Noise Stationary Diesel Generators Industrial or Commercial Use 160KW 65dbA
Quick Detail:
| Product Name: |
Quiet Portable Diesel Generators
|
Brand Name: |
OUMA
|
Model Number: |
OM160CYD3
|
| Output Type: |
AC Three Phase
|
Speed: |
1500/1800rpm
|
Frequency: |
50/60Hz
|
| Rated Power: |
160KW-192KW
|
Rated Voltage: |
400/230V
|
Engine: |
Four cylinder
|
Description:
Radiator motor for central AC is used for the radiator fan, so the fan can withstand high or low temperature(-40°)and high corrosion environment with service life of 20,000 hours. This is very important and special, general warranty is only 500 hours.
60℃ radiator is used on all gensets so they can be used in all weather conditions without power reduction or overheat. This is very important, especially in hot weather areas. Remember generally people use 40 degree radiator, this is not enough for hot areas. We also use oil cooler for very hot countries.
Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
Smallest size compared with counterparts using the same engine and alternator for the same rating gensets. Save transportation cost and installation space.
Specifications:
| Generator set | Model | OM160CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 160 192 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 288 346 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 65 | |
| Battery(12V-Ah) | 100x2 | |
| Overall dimension (L×W×H)(mm) |
≤3450×1280×1850 | |
| Overall weight(kg) | ≤2150 | |
| Fuel tank capacity(L) | 298 | |
| Continuous running(h) | 8 | |
| Diesel engine | Model | OM4112Z |
| Brand | OUMA | |
| Power output(KW) | 200 240 | |
| Type |
Four cylinder, direct injection, four stroke, |
|
| Displacement(L) | 7.9 | |
| Bore×Stroke(mm) | 112×135 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Electronic | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 26 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 16 | |
| Alternator | Model | OM339D |
| Brand | OUMA | |
| Rated power(KW) | 160 192 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |

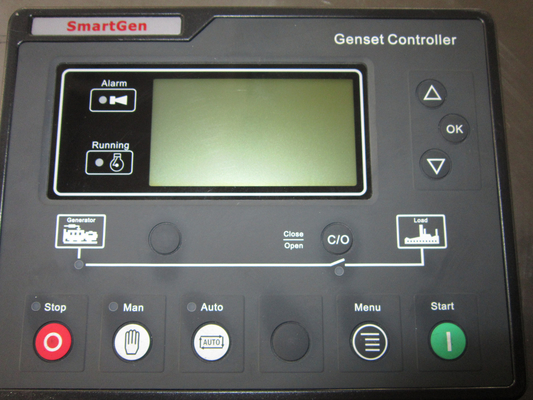

| Control panel | Model | HGM6100U |
| Manufacturer | OUMA Smartgen | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Unique optimized user-friendly design.
- Availability of manufacturer genuine spare parts for whole life of the gensets.
- Low noise, low vibration,low fuel consumption.
- ISO and CE certificate.
- Strict in-process control and pre-delivery testing of at least two hours.
- Competitive price and fast delivery within 20 working days
- 15 months or 1000 running hours warranty, whichever comes first
- All spare parts available
