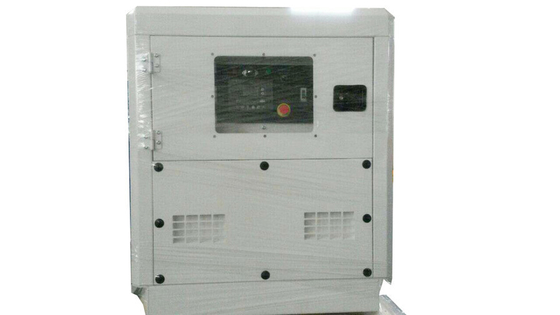

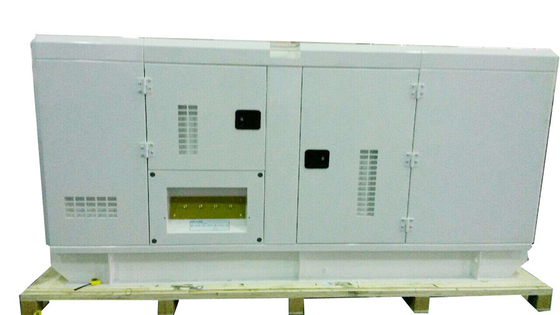

40KW - 50KW Super Silent Diesel Generator Set Optional ATS and Three Remote Controls
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | super silent diesel generator,portable silent generator |
||
|---|---|---|---|
Soundproof Diesel Generators Super Silent 40KW - 50KW 8 Damping Pads
Quick Detail:
- Model No.:OM40CYD3
- Product name:Diesel Generator Set
- Rated power:40KW - 50KW
- Rated voltage: 400V/230V three phase
- Rated current: 72.1A-86.7A
- Rated frequency: 50HZ- 60HZ
- Optional ATS and THREE remote controls.
Description:
1,60℃ radiator is used on all gensets so they can be used in all weather conditions without power reduction or overheat. This is very important, especially in hot weather areas. Remember generally people use 40 degree radiator, this is not enough for hot areas. We also use oil cooler for very hot countries.

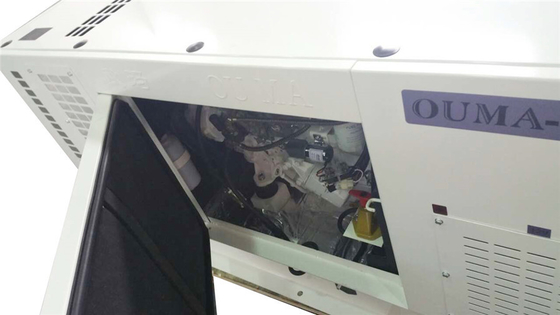

2, The genset housing is separated into several cavities, i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, so the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, so safety is ensured while performance of the genset can be maximized. Other factories install everything in a single cavity, the engine chamber is very hot during running.
3, 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years. Some factories may use 1.8 mm or hot-rolled steel and varnish painting, such painting may peel off after some time.
4, 62 dbA noise level, quiet enough to leave the users and neighbourhood a good living environment. We continue improving noise level to below 60dbA.
5, 15 months or 1000 running hours warranty, whichever comes first.
Specifications:
| Generator set | Model | OM40CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 40 50 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 72.1 86.7 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60x2 | |
| Overall dimension (L×W×H)(mm) |
≤2200×950×1050 | |
| Overall weight(kg) | ≤1200 | |
| Fuel tank capacity(L) | 120 | |
| Continuous running(h) | 8 | |
| Diesel engine | Model | OM4102Z |
| Brand | OUMA | |
| Power output(KW) | 50 60 | |
| Type |
Four cylinder, direct injection, four stroke, |
|
| Displacement(L) | 3.834 | |
| Bore×Stroke(mm) | 102×118 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 13 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 9 | |
| Alternator | Model | OM188B |
| Brand | OUMA | |
| Rated power(KW) | 40 50 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | HGM6100U |
| Manufacturer | OUMA Smartgen | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Big either-side service doors with lock keys.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Free training and technical instrucitons.
- Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.
- ISO and CE certificated.
