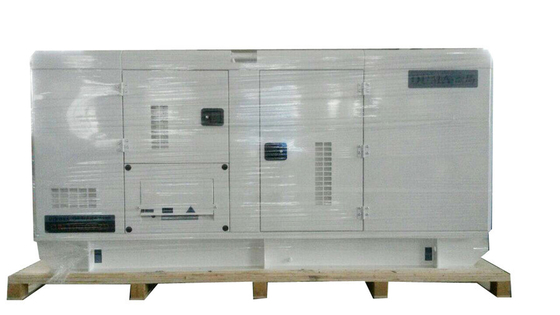

68KW / 50Hz - 82KW / 60HZ Silent Diesel Generating Set Water Cooled AC Three Phase Low Fuel Consumption
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | super silent diesel generator,portable silent generator |
||
|---|---|---|---|
68KW/50Hz 82KW/60HZ Water Cooled AC Three Phase Silent Diesel Generating Set Low Noise Low Fuel Consumption
Quick Detail:
- Three phase Silent Diesel Generating Set
- 68KW/ 50Hz, 82KW/ 60Hz. customized voltage output with connection terminal.
- Driven by powerful 85KW/1500rpm, 102kw/1800rpm 4.75L diesel engine.
- Turbocharged
- Smartgen HGM6100U controller
- Stamford type brushless controller.
- Standard base fuel tank.
- Optional ATS and external fuel tank.
Description:
1,Unique noise reduction technology, noise of silent gensets is only 65 dBa at 7 meters.
2, 60℃ radiator is used on all gensets so they can be used in all weather conditions, such as tropical and chilly areas.
3, The genset housing is separated into several cavities, i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, so the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, so safety is ensured while performance of the genset can be maximized.
4, Adopt the first top Chinese brand FAWDE engines, alternators and control panels. Second biggest OEM partner for FAWDE.
5, Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
6, Radiator motor for central AC is used for the radiator fan, so the fan can withstand high or low temperature(-40°)and high corrosion environment with service life of 20,000 hours.
7, Big base fuel tank to support continuous running minimum 9 hours at full load.
8, 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
9, Complete display of main parameters and protections on the control panel.
10, Two big service doors with keys. Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
Specifications:
| Generator set | Model | OM68CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 68 82 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 122 142 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 65 | |
| Battery(12V-Ah) | 60x2 | |
| Overall dimension (L×W×H)(mm) |
≤2500×1150×1150 | |
| Overall weight(kg) | ≤1310 | |
| Fuel tank capacity(L) | 205 | |
| Continuous running(h) | 8 | |
| Diesel engine | Model | OM4110Z |
| Brand | OUMA | |
| Power output(KW) | 85 102 | |
| Type |
Four cylinder, direct injection, four stroke, |
|
| Displacement(L) | 4.75 | |
| Bore×Stroke(mm) | 110×125 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Electronic | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 20 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 14 | |
| Alternator | Model | OM228B |
| Brand | OUMA | |
| Rated power(KW) | 30 38 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | HGM6100U |
| Manufacturer | OUMA Smartgen | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running only 65dBA at 7meters.
- Stable and reliable output.
- Optimized design, cost-effective.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Spare parts and service for whole service life.
- Four-caviy design of genset housing and cooling fan connection mode is patent protected to Ouma.
- ISO and CE certificated.
