20KW - 23KW Silent Diesel Generator Set Three Phase Four Wire for Commercial or Industrial Use
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | silent diesel generators,super silent diesel generator |
||
|---|---|---|---|

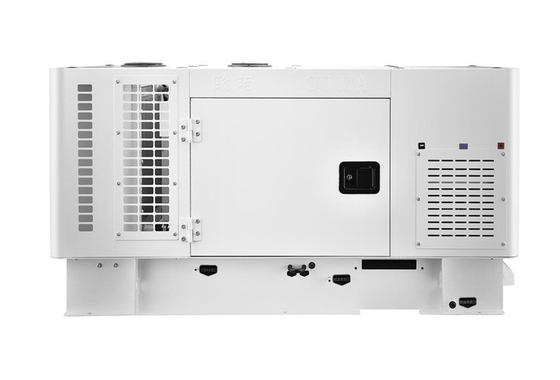

Commercial or Industrial Use Silent Diesel Generator Set Three Phase Four Wire 20KW - 23KW
Quick Detail:
- Product Name: Silent Diesel Generator Set
- Model No.: OM20CYD3
- 20KW/ 50Hz, 23KW/ 60Hz.Three phase, four wire
- Powered by strong 4 cylinder, 25kw/35HP 1500rpm, 30kw/40HP 1800rpm diesel engine.
- 70L base fuel tank can support at least 9 hours continuos running.
- Smartgen conroller 6100U optional for ATS connection.
Description:
60 ℃ radiator and four-cavity design of the housing, engine oil cooler and other modifications to ensure the gensets can run perfect in all weather conditions.
The engine which is the heart of a generator we are using FAWDE,who is the first brand high quality engine in China, their engines are supplied to automobile companies.

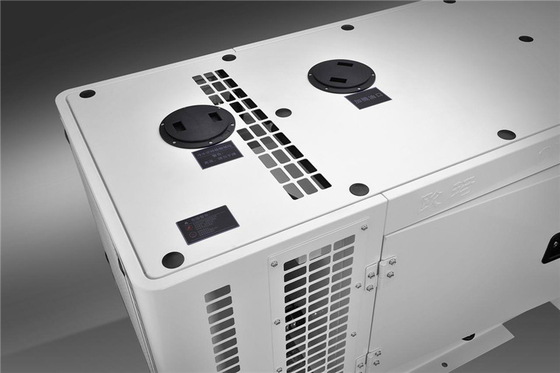

The genset housing is separated into several cavities, i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, so the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50 ℃, so safety is ensured while performance of the genset can be maximized.
Many customers used to buy from other factories. They tried our units and was very very satisfied. A customer came to China with purpose to find good gensets with very low noise,he came to our factory and tested our generators, he was very happy and said that is the type he was looking for! Now they have regular full container orders with us!
Specifications:
| Generator set | Model | OM20CYD3 |
| Brand | OUMA | |
| Rated power(KW) | 20 23 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 173/86.9 191/95.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60 | |
| Overall dimension (L×W×H)(mm) |
≤1750×750×853 | |
| Overall weight(kg) | ≤780 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 9 | |
| Diesel engine | Model | OM495 |
| Brand | OUMA | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 95×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184C3 |
| Brand | OUMA | |
| Rated power(KW) | 25 30 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase, four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |

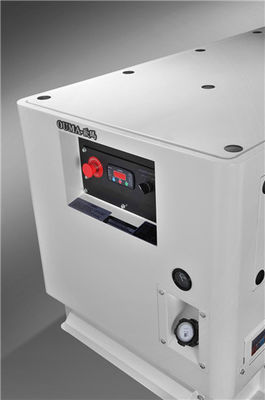

| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Flexible cooperation modes.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- High customer recognition.
- ISO and CE certificated.
